920317 (ST 22 L) - Ariens Compact 22" Snow Blower, Briggs & Stratton (SN: 250000 & Above) Gear Case - 22" Parts Diagram

Compact 22" Snow Blower, Briggs & Stratton

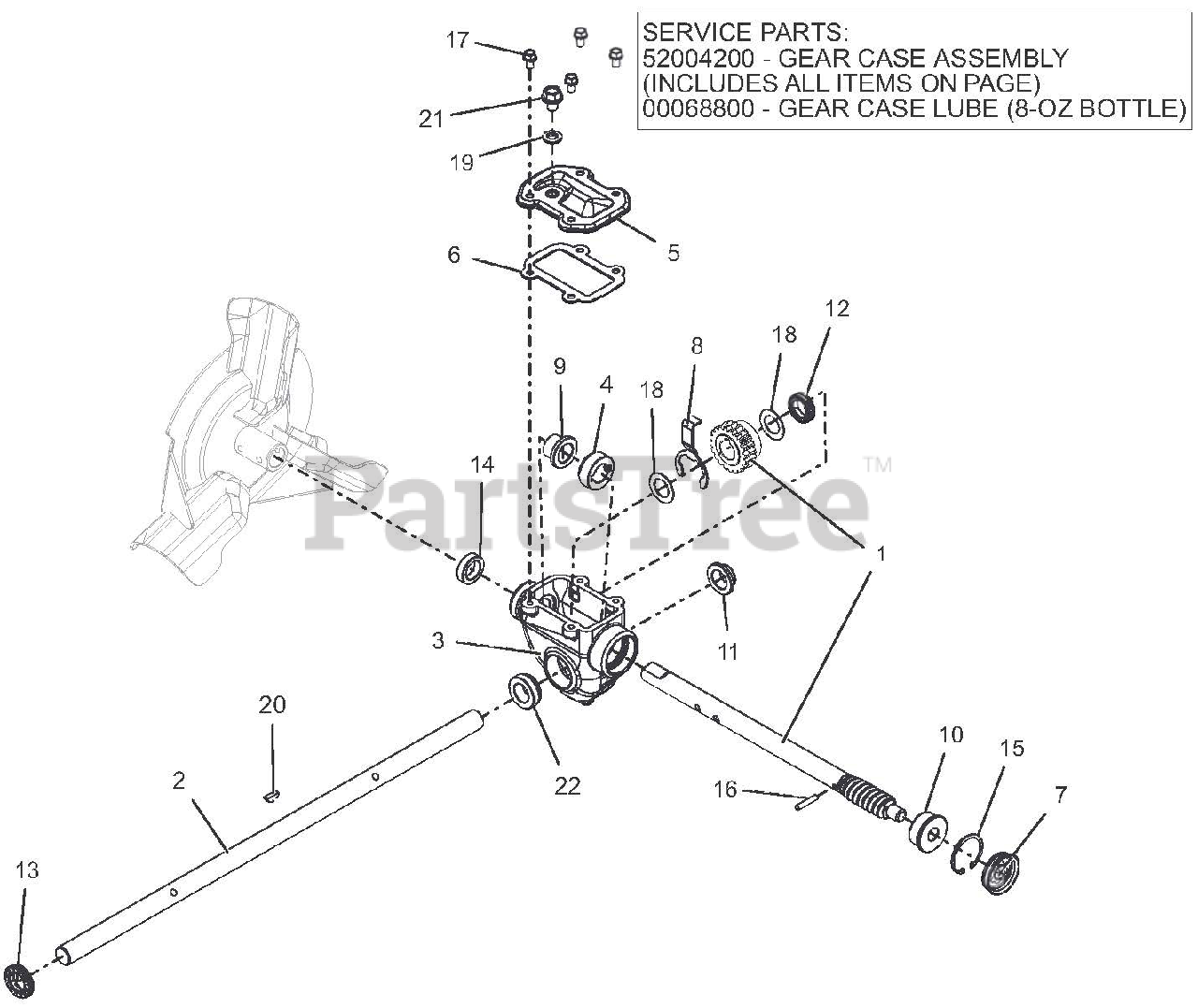

Gear Case - 22" Parts Diagram

  • Title
1

Ariens 52003400

SHAFT AND WORM GEAR ASSEMBLY

$86.99

$

In Stock, Qty 7

0

2

Ariens 03885800

SHAFT, RAKE - 22" (.750 DIA)

$77.99

$

Usually ships in 4-12 days

0

3

Ariens 04276800

GEARCASE, COMPACT MACHINED

$

$

Not available

4

Ariens 04277000

THRUST COLLAR, .75" ID SLIPFIT

$

$

Not available

5

Ariens 04280251

COVER, TOP - COMPACT

$20.99

$

Usually ships in 4-12 days

0

6

Ariens 04282400

GASKET, TOP - COMPACT GEARCASE

$3.99

$

In Stock, Qty 11

0

7

Ariens 04302800

COVER, GEAR CASE 1.50"

$15.99

$

In Stock, Qty 5

0

8

Ariens 04323600

BUSHING RETAINER, COMPACT

$

$

Not available

9

Ariens 05501020

BSHG-FLG .755X.878X.75X1.25

$9.49

$

Usually ships in 4-12 days

0

10

Ariens 05501108

BSHG-FLG .503X1.303X.62X1.465

$6.99

$

Usually ships in 4-12 days

0

11

Ariens 05501106

BSHG-FLG .755X.878X.424X1.25

$

$

Not available

12

Ariens 05600509

SEAL-OIL .748X1.125X.312 TBC29

$5.99

$

In Stock, Qty 15

0

13

Ariens 05600508

SEAL-OIL .748X1.300X.250 TBC29

$5.99

$

In Stock, Qty 11

0

14

Ariens 05600501

SEAL-OIL .748X1.125X.312 TB2-H
(Superseded to 05600509)

$5.99

$

In Stock, Qty 15

0

15

Ariens 05700212

RG-RTNG-INT 1.500X.050

$2.99

$

Usually ships in 4-12 days

0

16

Ariens 05800207

PIN-STR .188X1.00 6150

$2.49

$

In Stock, only 3 left!

0

17

Ariens 05901510

BOLT, SEMS .25-20X.50 GR5 YWZC

$

$

Not available

18

Ariens 06400912

WSHR-FL-STL .760X1.225X.032 YZ

$2.49

$

Usually ships in 4-12 days

0

19

Ariens 06400920

WSHR-BND-SEAL .38X.75X.11 GALV

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06609300

KEY-WDRF .19X.63 HRD #61

$2.99

$

In Stock, Qty 11

0

21

Ariens 07400110

@SCR-ROLOK .38-16X.50 HWH YWZC
(Superseded to 07400201)

$3.49

$

In Stock, only 1 left!

0

22

Ariens 05501107

BSHG-FLG COMPACT, RIGHT

$17.99

$

In Stock, only 2 left!

0

23

Ariens 52004200

GEAR CASE, 22" IRON SM TOP-LD

Note: GEAR CASE ASSEMBLY INCLUDES ALL ITEMS ON PAGE

$214.99

$

In Stock, only 1 left!

0

24

Ariens 00068800

ARIENS L3 LUBE, 8 OZ BOTTLE

Note: SERVICE PART

$18.99

$

In Stock, Qty 20+

0
