920317 (ST 22 L) - Ariens Compact 22" Snow Blower, Briggs & Stratton (SN: 250000 & Above) Dash - 22" CE Parts Diagram

Compact 22" Snow Blower, Briggs & Stratton

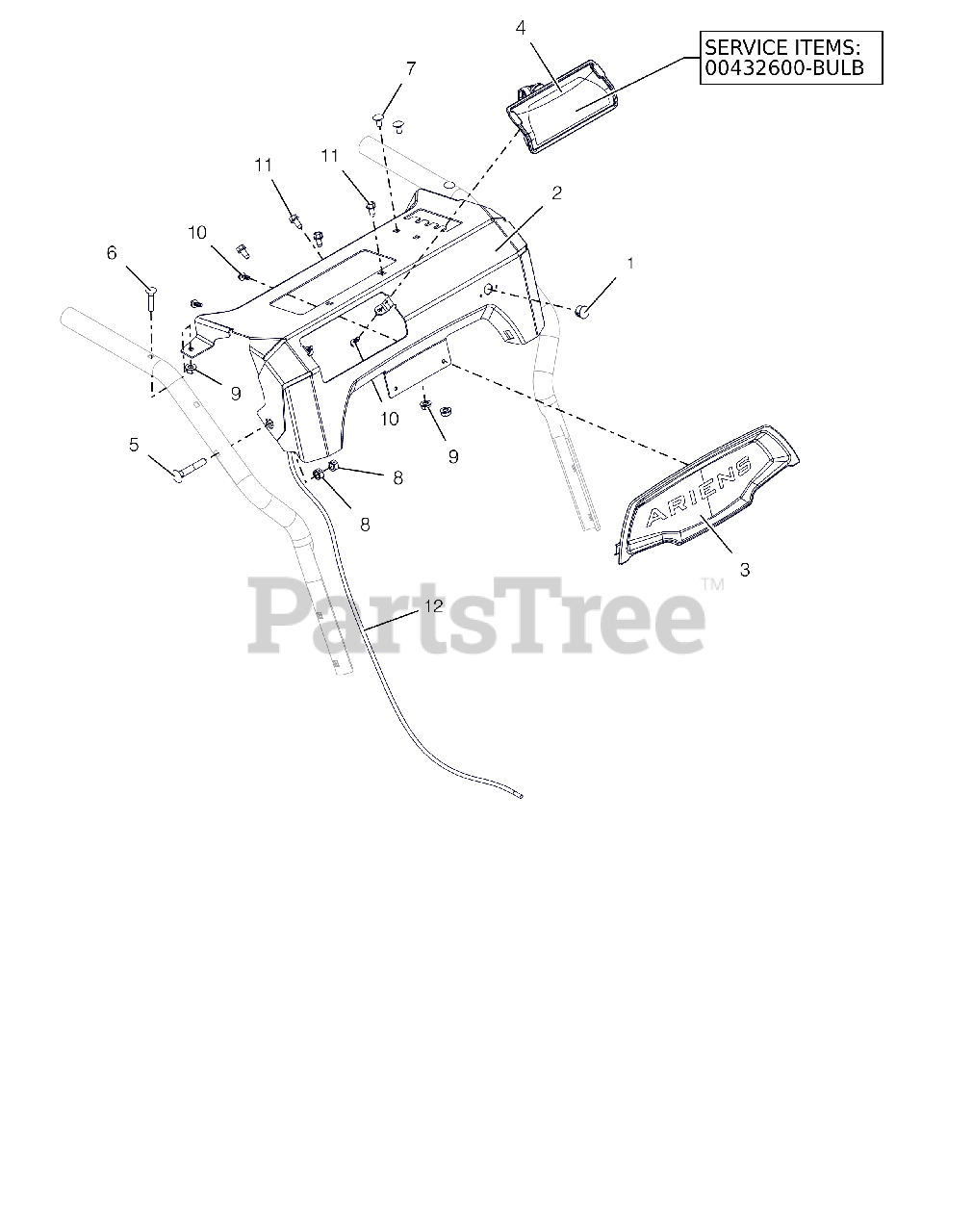

Dash - 22" CE Parts Diagram

  • Title
1

Ariens 01554900

HOLE PLUG, PLASTIC .56 HOLE

$2.49

$

Usually ships in 4-12 days

0

2

Ariens 52007400

CRTL PANEL W/DECAL-COMP MANUAL

$77.99

$

Usually ships in 4-12 days

0

3

Ariens 04982300

BEZEL, DASH - ARIENS SM DASH

$21.99

$

Usually ships in 4-12 days

0

4

Ariens 04812300

HEADLIGHT ASY, HALO 20W 2SHOT

$42.99

$

In Stock, Qty 9

0

4

Ariens 00432600

BULB, LIGHT-HALOGEN 20W

Note: SERVICE PART

$14.99

$

In Stock, Qty 16

0

5

Ariens 06200207

BLT-RDHDXLSQNK .31-18X2.0 G5YZ

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

Usually ships in 4-12 days

0

7

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 07400107

SCR-TAP #10X.50 BOSS INDHXHD

$2.49

$

Usually ships in 4-12 days

0

11

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 04337300

HARNESS, LIGHT - COMPACT

$22.99

$

In Stock, only 1 left!

0
