920314 - Ariens Sno-Tek 28" Snow Blower, LCT StormForce 208cc engine (SN: 127000 - 249999) Housing - 28" Parts Diagram

Sno-Tek 28" Snow Blower, LCT StormForce 208cc engine

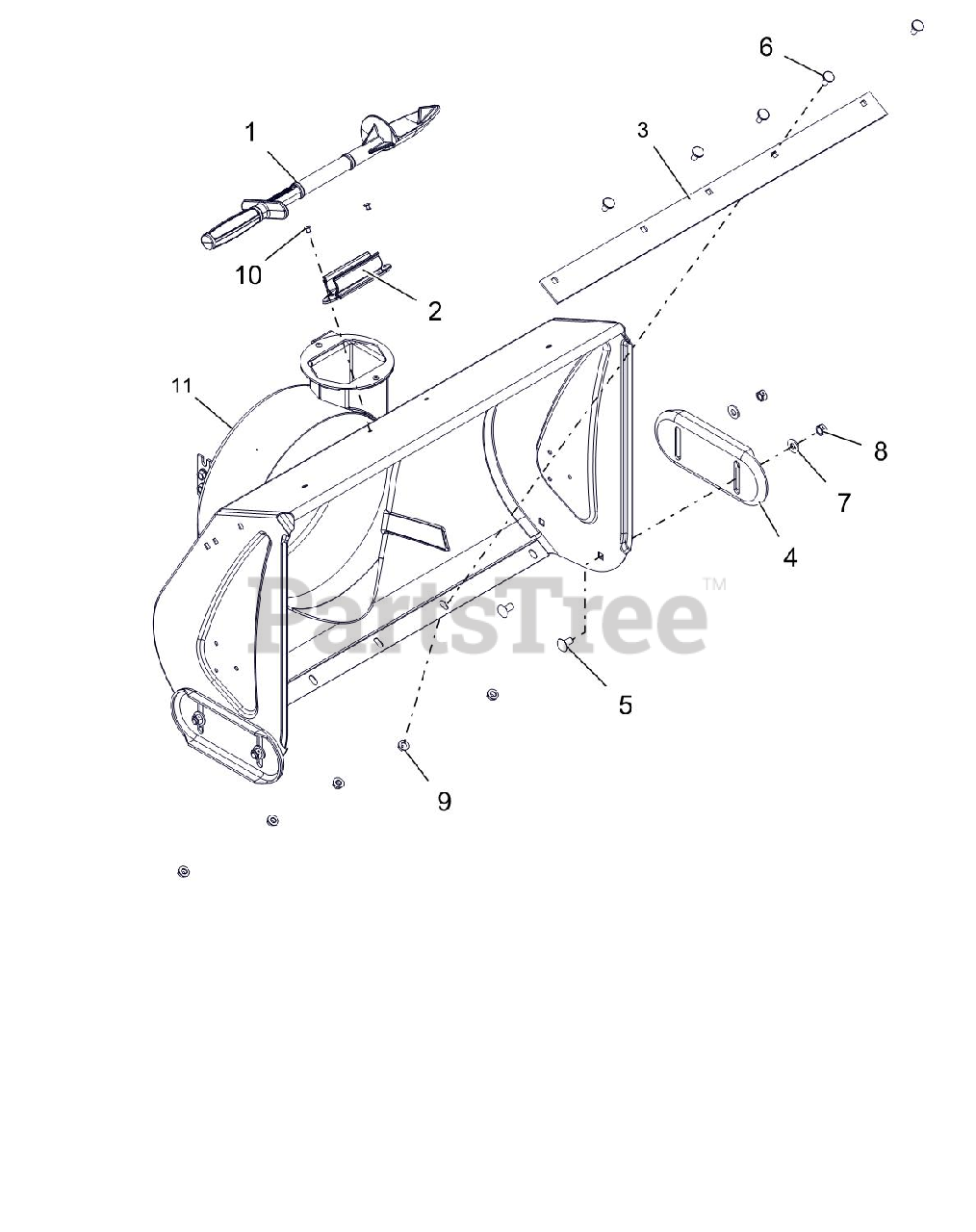

Housing - 28" Parts Diagram

  • Title
1

Ariens 00170200

DEVICE, SNOW CLEAN OUT

$21.99

$

In Stock, Qty 9

0

2

Ariens 00170300

MOUNT, SNOW CLEAN OUT

$11.99

$

In Stock, only 4 left!

0

3

Ariens 04145451

SCRAPER BLADE, 28" COMPACT HI

$29.99

$

In Stock, Qty 5

0

4

Ariens 04431751

SKID SHOE, REVERSIBLE

$27.99

$

In Stock, Qty 5

0

5

Ariens 06200004

@BLT-RHDSSQNK .38-16X.75 G5YZ
(Superseded to 06200336)

$2.49

$

In Stock, Qty 20+

0

6

Ariens 06200209

BOLT, MODIFIED HEAD CARRIAGE

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$0.99

$

In Stock, Qty 7

0

11

Ariens 52005300

BLOWER HOUSING, 28"

$359.99

$

Usually ships in 4-12 days

0
