920309 - Ariens Sno-Tek 24" Snow Blower, LCT StormForce 208cc engine (SN: 000101 & Above) Handlebars and Controls Parts Diagram

Sno-Tek 24" Snow Blower, LCT StormForce 208cc engine

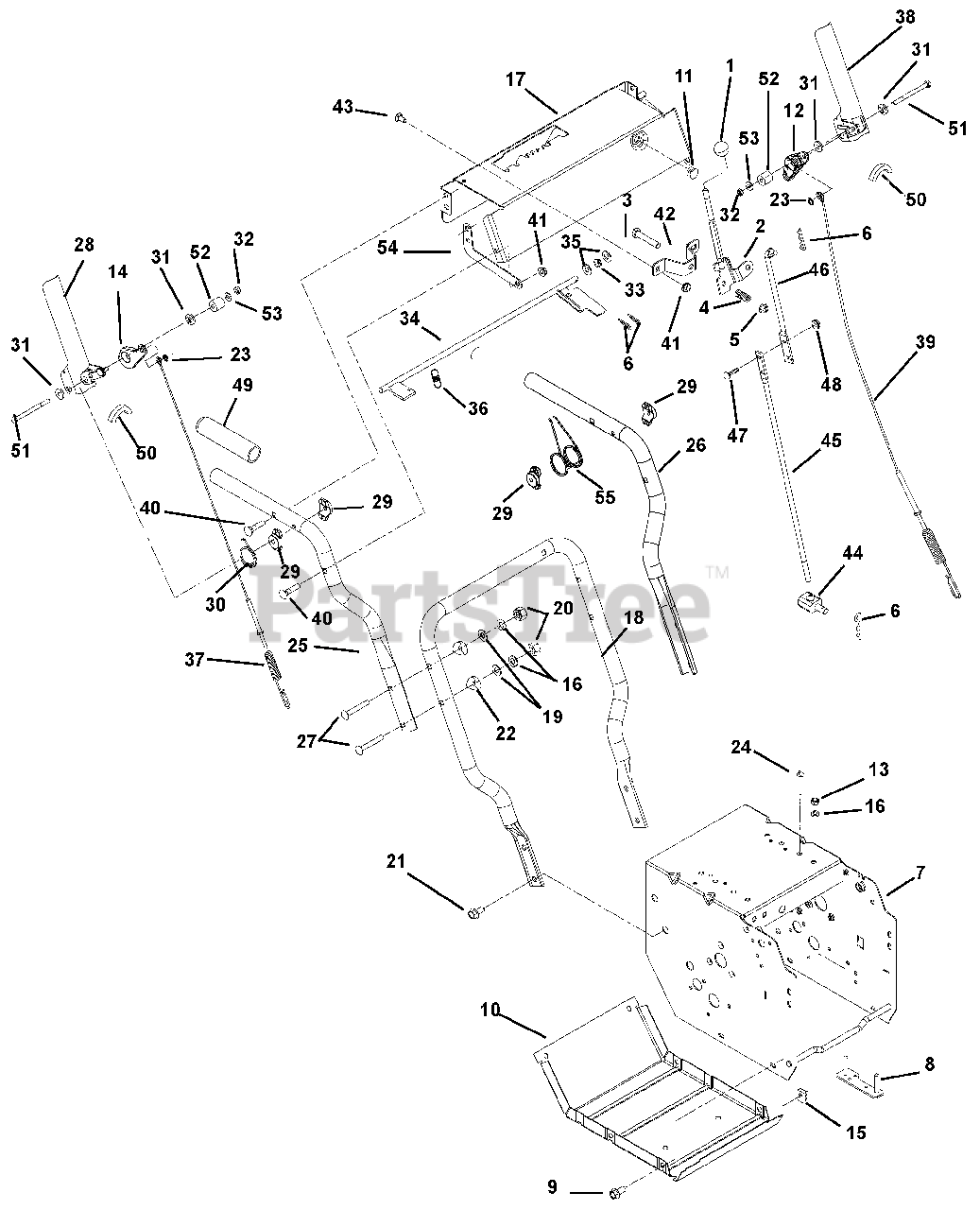

Handlebars and Controls Parts Diagram

  • Title

1

Ariens 07533500

KNOB,BALL -BLACK 1.47" .375-16

$9.99

$

In Stock, Qty 8

0

2

Ariens 04149000

WMT, SHIFT LEVER

$34.99

$

Usually ships in 4-12 days

0

3

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

4

Ariens 08335700

SG-COMP .125X.781X1.250

$9.49

$

In Stock, only 1 left!

0

5

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 03884251

FRAME, 920/921

$

$

Not available

8

Ariens 00188400

STRAP, ENGINE BOLT-WELDMENT

$

$

Not available

9

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 00492351

COVER, BOTTOM

$

$

Not available

11

Ariens 00529900

HOLE PLUG, PLASTIC .44 HOLE

$

$

Not available

12

Ariens 03386500

CAM, INTERLOCK - LH

$3.49

$

Usually ships in 4-12 days

0

13

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

14

Ariens 03386600

CAM, INTERLOCK - RH

$4.99

$

Usually ships in 4-12 days

0

15

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 52001300

DASH, SNO TEK (W/DECALS)

$

$

Not available

18

Ariens 00597451

HANDLEBAR, LOWER (COMPACT)

$62.99

$

Usually ships in 4-12 days

0

19

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 07500005

SPACER, HANDLEBAR

$1.49

$

In Stock, Qty 20+

0

23

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$0.99

$

In Stock, Qty 16

0

25

Ariens 00656251

HANDLEBAR, UPPER - RH COMP/DEL

$85.99

$

In Stock, only 2 left!

0

26

Ariens 00656351

HANDLEBAR, UPPER - LH COMP/DEL

$37.99

$

Usually ships in 4-12 days

0

27

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

28

Ariens 00398351

PADDLE, CLUTCH - RH COMPACT

$25.99

$

In Stock, only 2 left!

0

29

Ariens 05500040

SPACER, HANDLEBAR

$3.99

$

Usually ships in 4-12 days

0

30

Ariens 08300026

SPRING, TORSION

$5.99

$

Usually ships in 4-12 days

0

31

Ariens 00399300

BSHG, FLG .266X.42X.150 PM

$

$

Not available

32

Ariens 06530900

NUT-JAM-NYL .250-20 W/INSERTYZ

$0.99

$

In Stock, Qty 9

0

33

Ariens 05500020

BUSHING, POLYLINER-.38 SNAPIN

$2.99

$

In Stock, Qty 20+

0

34

Ariens 03387000

WELDMENT, INTERLOCK SHAFT

$61.99

$

Usually ships in 4-12 days

0

35

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 08300432

SPRING, EXTENSION

$3.49

$

Usually ships in 4-12 days

0

37

Ariens 06900303

CABLE, ATTACHMENT, COMPACT

$20.99

$

In Stock, Qty 10

0

38

Ariens 00398151

PADDLE, CLUTCH - LH COMPACT

$40.99

$

In Stock, only 2 left!

0

39

Ariens 06900304

CABLE, TRACTION - COMPACT

$25.99

$

In Stock, Qty 11

0

40

Ariens 06200009

BLT-RDHDXLSQNK .31-18X1.5 G5YZ
(Superseded to 06119100)

$

$

Not available

41

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

42

Ariens 03886951

BRKT, SHIFT MOUNT

$

$

Not available

43

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

44

Ariens 00386700

PIVOT,SHIFT ROD .375-16(TRUNN)

$7.99

$

In Stock, Qty 20+

0

45

Ariens 00656667

ROD, SHIFT - LOWER

$

$

Not available

46

Ariens 04149767

ROD, SHIFT - UPPER

$117.99

$

Usually ships in 4-12 days

0

47

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

48

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

49

Ariens 07518700

HANDLE GRIP
(Superseded to 07500239)

$3.99

$

In Stock, Qty 20+

0

50

Ariens 07500103

EDGING, CLUTCH PADDLE - 2.00"

$3.49

$

Usually ships in 4-12 days

0

51

Ariens 05965300

@BLT-HEX .25-20X3.25 YWZC

$

$

Not available

52

Ariens 00589800

BSHG, SLV .266 X .750 X .750

$3.99

$

In Stock, only 1 left!

0

53

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

54

Ariens 03387151

STRAP, SUPPORT - DASH PANEL

$17.99

$

Usually ships in 4-12 days

0

55

Ariens 08300431

SPRING, TORSION, DUAL COIL
(Superseded to 08300524)

$38.99

$

Usually ships in 4-12 days

0
