920030 - Ariens Classic 24+ 24" Snow Blower, Ariens AX 223cc engine (SN: 353000 & Above) Wheels And Axle - Compact 24 Plus Parts Diagram

Classic 24+ 24" Snow Blower, Ariens AX 223cc engine

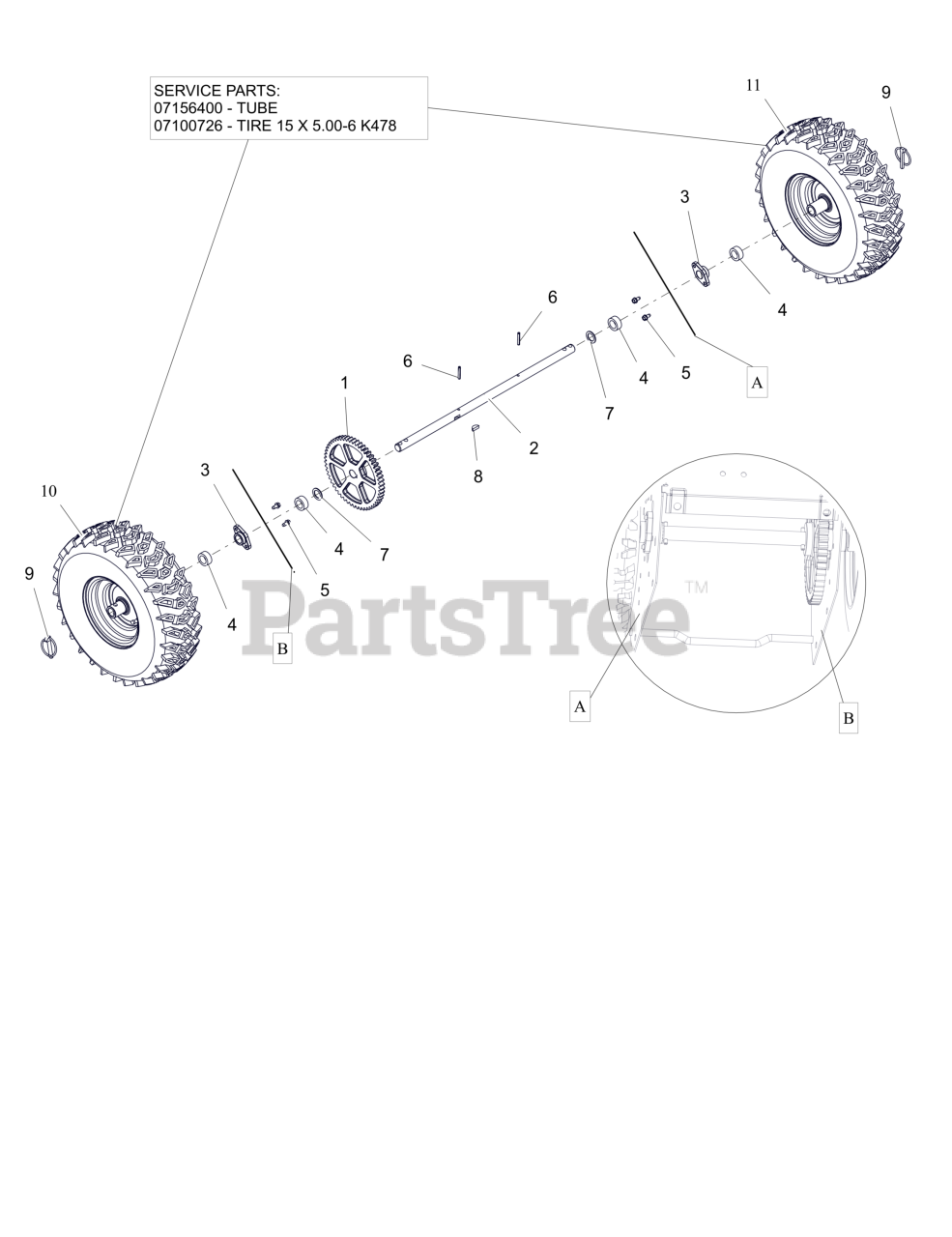

Wheels And Axle - Compact 24 Plus Parts Diagram

  • Title

1

Ariens 00657800

SPUR GEAR, 54T .75ID X 6.75PD

$38.99

$

Usually ships in 4-12 days

0

2

Ariens 05006800

AXLE, COMPACT

$

$

Not available

3

Ariens 05500101

BSHG .75X1.125X.65

$9.99

$

In Stock, Qty 12

0

4

Ariens 05500140

BSHG-SLV .766 X 1.125 X .500

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

6

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06401119

WSHR, FLT .754X1.125X.062 ZCC

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

$2.99

$

In Stock, Qty 20+

0

9

Ariens 07053700

PIN-LOK .31X1.75

$2.49

$

In Stock, Qty 20+

0

10

Ariens 07101408

TIRE/WHEEL, RH 15X5-6 PIN T2

$102.99

$

Usually ships in 4-12 days

0

10

Ariens 07156400

TUBE 15 X 5.00-6

Note: Component Service Part

$20.99

$

In Stock, only 2 left!

0

10

Ariens 07100726

TIRE, 15X5.00-6 K478

Note: Component Service Part

$69.99

$

In Stock, only 1 left!

0

11

Ariens 07101409

TIRE/WHEEL LH 15X5.00-6 PIN T2

$102.99

$

Usually ships in 4-12 days

0

11

Ariens 07156400

TUBE 15 X 5.00-6

Note: Component Service Part

$20.99

$

In Stock, only 2 left!

0

11

Ariens 07100726

TIRE, 15X5.00-6 K478

Note: Component Service Part

$69.99

$

In Stock, only 1 left!

0
