920029 - Ariens Compact 24" Snow Blower, Ariens AX 223cc engine (SN: 360941 & Above) Dash - Compact 24 Parts Diagram

Compact 24" Snow Blower, Ariens AX 223cc engine

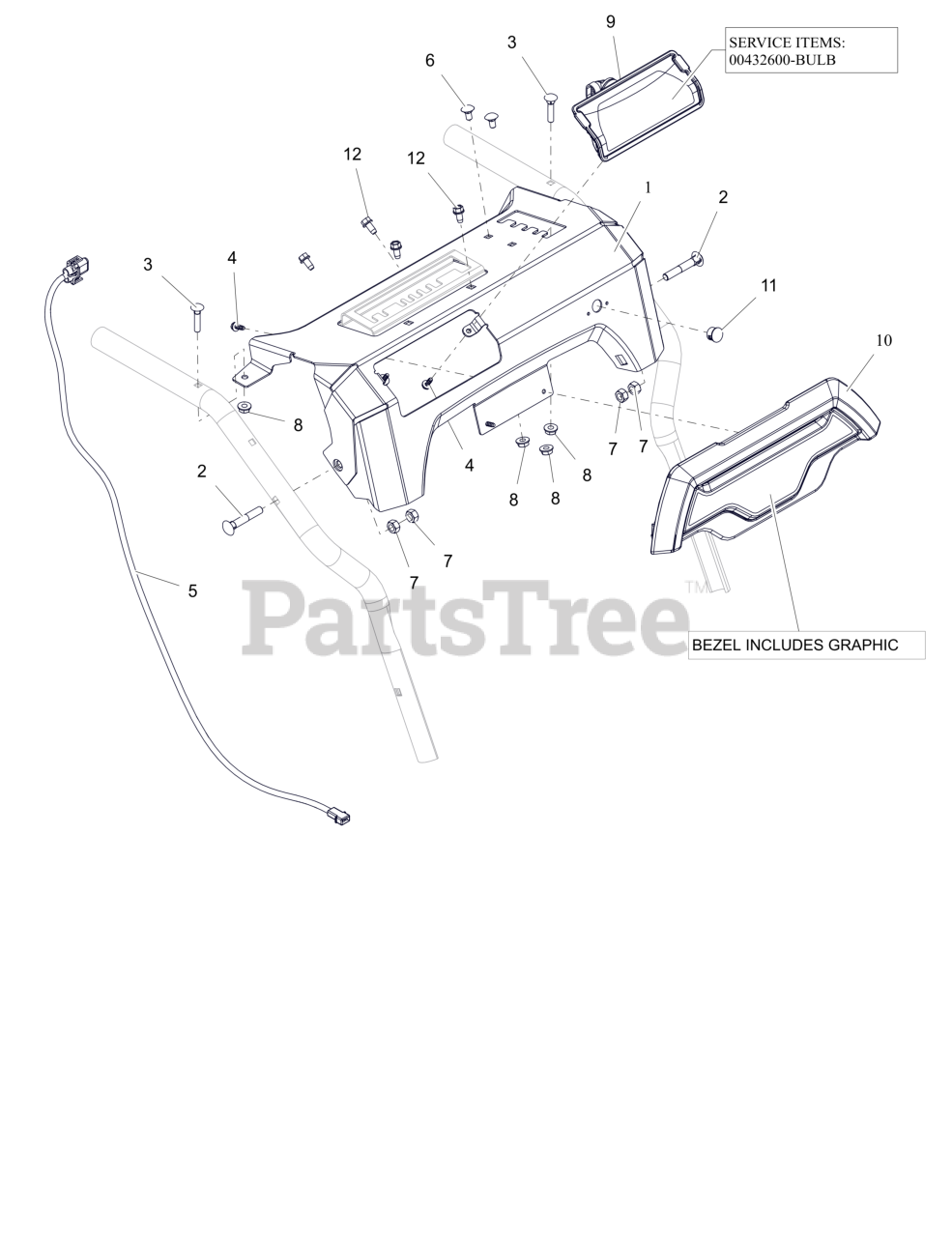

Dash - Compact 24 Parts Diagram

  • Title

1

Ariens 52009300

PANEL, DASH - COMPACT

$

$

Not available

2

Ariens 06200207

BLT-RDHDXLSQNK .31-18X2.0 G5YZ

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

Usually ships in 4-12 days

0

4

Ariens 06100239

SCR, PLASTIC #10X.50

$2.49

$

Usually ships in 4-12 days

0

5

Ariens 04337300

HARNESS, LIGHT - COMPACT

$22.99

$

In Stock, only 1 left!

0

6

Ariens 06200306

BLT, RHSN .25-20X.500 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06500826

NUT,LK-CTR .31-18 GA ZCC

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

9

Ariens 04812300

HEADLIGHT ASY, HALO 20W 2SHOT

$42.99

$

In Stock, Qty 9

0

9

Ariens 00432600

BULB, LIGHT-HALOGEN 20W

Note: Component Service Part

$14.99

$

In Stock, Qty 16

0

10

Ariens 09382500

BEZEL, SMALL - COMPACT

$

$

Not available

11

Ariens 01554900

HOLE PLUG, PLASTIC .56 HOLE

$2.49

$

Usually ships in 4-12 days

0

12

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0
