920028 - Ariens Compact 24" Track Snow Blower, Ariens AX 223cc engine (SN: 320000 & Above) Housing - 24" Parts Diagram

Compact 24" Track Snow Blower, Ariens AX 223cc engine

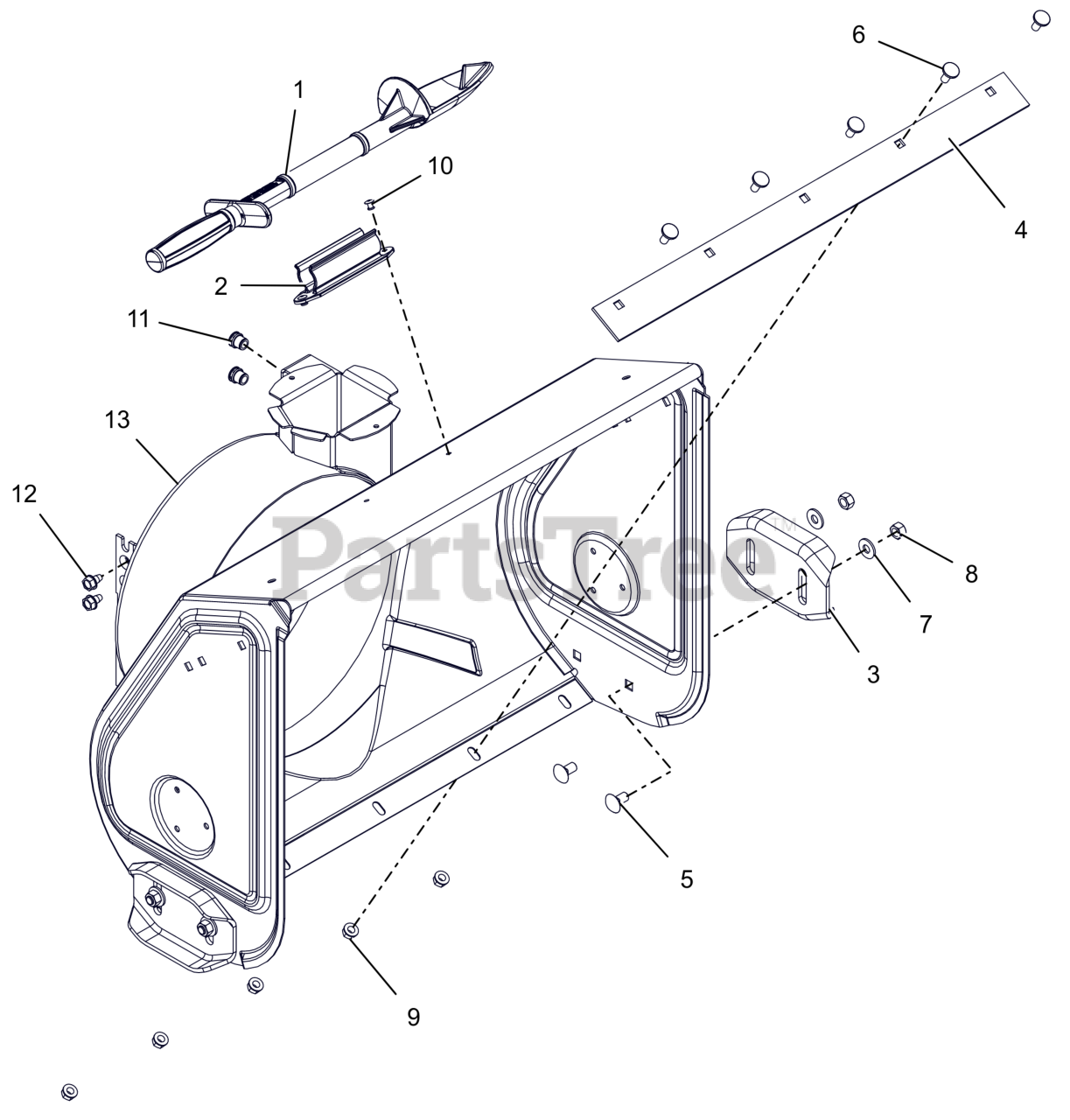

Housing - 24" Parts Diagram

  • Title

1

Ariens 00170200

DEVICE, SNOW CLEAN OUT

$21.99

$

In Stock, Qty 10

0

2

Ariens 00170300

MOUNT, SNOW CLEAN OUT

$11.99

$

In Stock, only 4 left!

0

3

Ariens 02483859

SKID SHOE, REVERSIBLE - ORANGE

$19.99

$

In Stock, Qty 20+

0

4

Ariens 03884459

SCRAPER BLADE, 24" COMPACT HI

$27.99

$

In Stock, Qty 8

0

5

Ariens 06200336

BLT, RHSSN .38-16X.75 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

6

Ariens 06200209

BOLT, MODIFIED HEAD CARRIAGE

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06500825

NUT-LK-CTR .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06800140

RVT, POP .1875 ZCC

$0.99

$

In Stock, Qty 14

0

11

Ariens 07001805

NUT,THD,INSERT .38-16 ZC120

$2.49

$

Usually ships in 4-12 days

0

12

Ariens 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

13

Ariens 52002600

BLOWER HOUSING, 24" HI ORANGE

$517.99

$

Usually ships in 4-12 days

0
