920028 - Ariens Compact 24" Track Snow Blower, Ariens AX 223cc engine (SN: 000910 - 259999) Tracks Parts Diagram

Compact 24" Track Snow Blower, Ariens AX 223cc engine

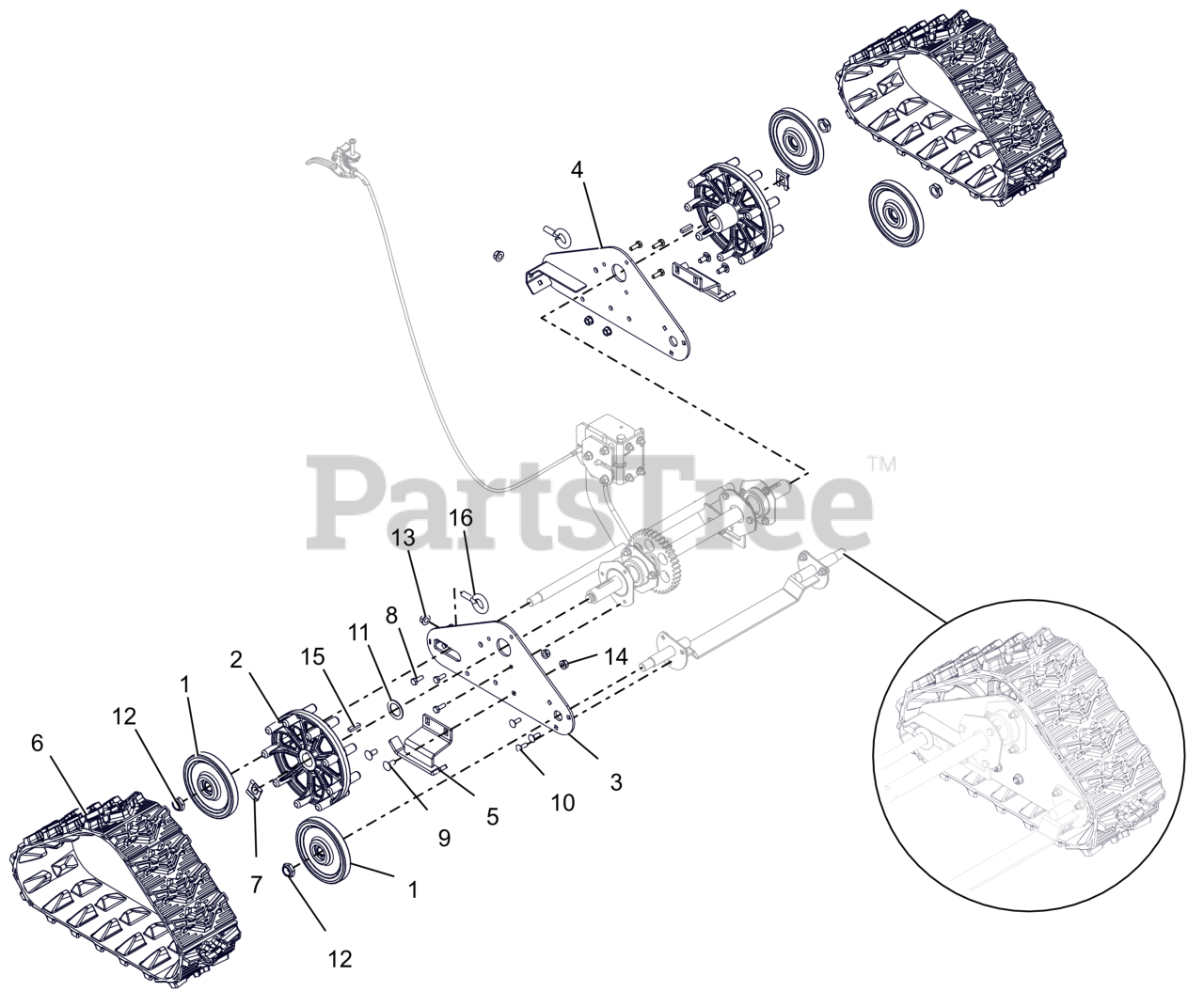

Tracks Parts Diagram

  • Title

1

Ariens 03293600

WHEEL, BOGIE - SINGLE BEARING

$

$

Not available

2

Ariens 04520000

WHEEL, MACHINED DRIVE

$142.99

$

Usually ships in 4-12 days

0

3

Ariens 05086251

PLATE, SIDE-COMPACT RH WLDMT

$29.99

$

Usually ships in 4-12 days

0

4

Ariens 05086351

PLATE, SIDE-COMPACT LH WLDMT

$29.99

$

Usually ships in 4-12 days

0

5

Ariens 04549651

RUNNER, GUIDE-CMPT TRACK BLACK

$21.99

$

Usually ships in 4-12 days

0

6

Ariens 04548500

TRACK, RUBBER COMPACT

$103.99

$

Usually ships in 4-12 days

0

7

Ariens 05700001

CLIP, SNAP .625 DIA

$2.49

$

In Stock, Qty 20+

0

8

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

10

Ariens 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 18

0

11

Ariens 06401132

WSHR, FLT 1.010X1.505X.062 ZCC

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06500936

NUT, NYL LK .625-18 ZCC

$3.99

$

In Stock, only 2 left!

0

13

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06600002

KEY-RECT .25X.188X1.00

$2.49

$

In Stock, Qty 20+

0

16

Ariens 07000040

BLT-EYE .375-16X.880 YWZC

$6.99

$

Usually ships in 4-12 days

0
