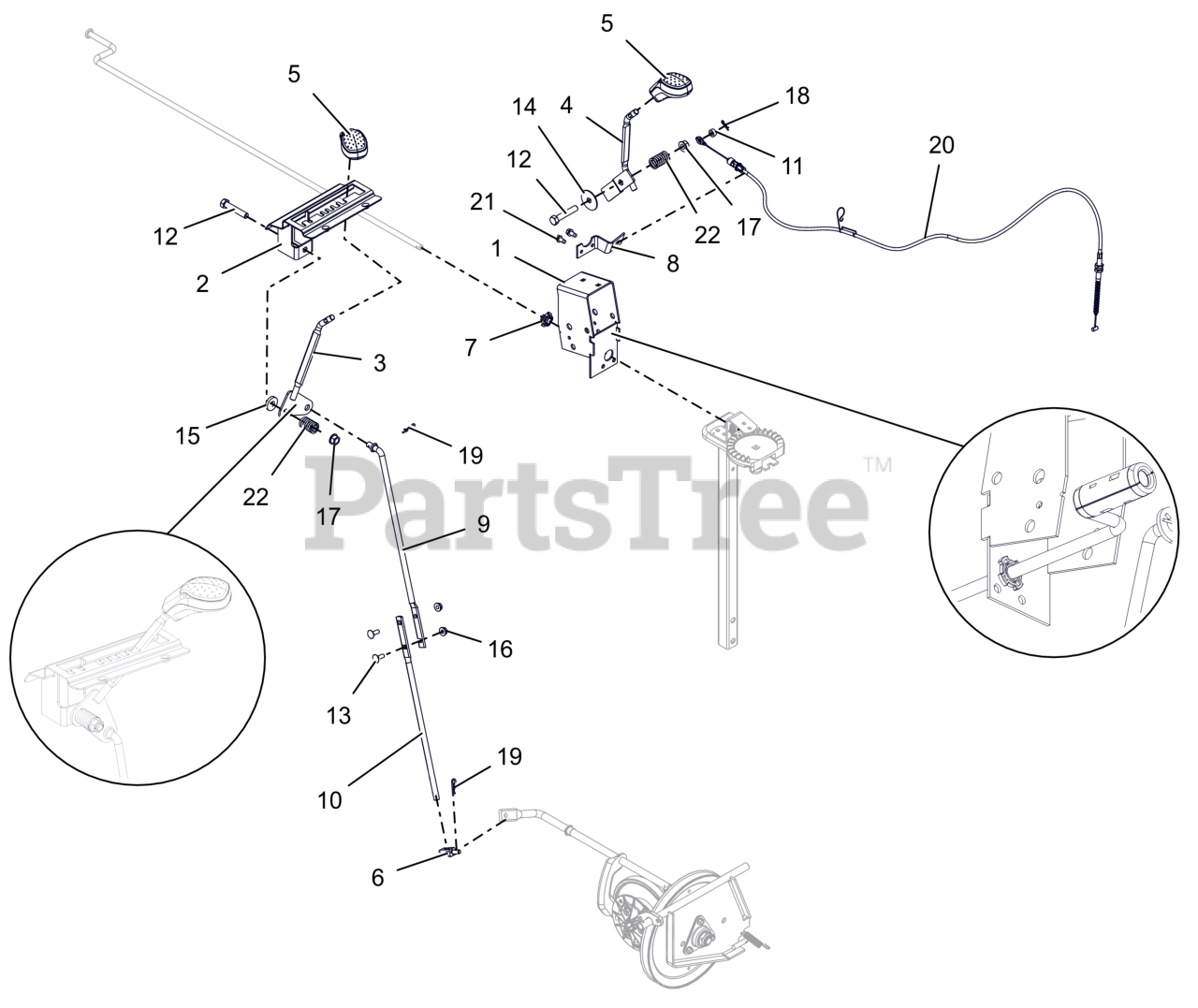

920027 - Ariens Compact 24" Snow Blower, Ariens AX 223cc engine (SN: 260000 & Above) Controls Parts Diagram

Compact 24" Snow Blower, Ariens AX 223cc engine

Controls Parts Diagram

  • Title

1

Ariens 04316651

WELDMENT, BRACKET INTERLOCK

$26.99

$

Usually ships in 4-12 days

0

2

Ariens 04317751

WELDMENT, DETENT PLATE-COMPACT

$

$

Not available

3

Ariens 04846700

LEVER, CONTROL-SHIFT(WELDMENT)

$

$

Not available

4

Ariens 04846600

WELDMENT,SM DASH DEFL CONTROL

$

$

Not available

5

Ariens 04816300

KNOB, CONTROL, DASH

$7.99

$

In Stock, Qty 11

0

6

Ariens 00386700

PIVOT,SHIFT ROD .375-16(TRUNN)

$7.99

$

In Stock, Qty 17

0

7

Ariens 04322700

CRANK BUSHING, NYLON CHUTE BK

$4.99

$

In Stock, Qty 11

0

8

Ariens 04333100

ANCHOR, DEFLECTOR CABLE

$8.99

$

Usually ships in 4-12 days

0

9

Ariens 04334900

ROD, SHIFT UPPER

$34.99

$

Usually ships in 4-12 days

0

10

Ariens 04753700

ROD, SHIFT - LOWER
(Superseded to 09167500)

$28.99

$

Usually ships in 4-12 days

0

11

Ariens 05501012

BSHG-SLV .265X.500X.219

$3.99

$

In Stock, Qty 12

0

12

Ariens 05901718

BLT,HEX .38-16X2.00 G5 ZCC

$2.99

$

In Stock, only 1 left!

0

13

Ariens 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06401028

WSHR,FLT .380X1.50X.062 ZCC

$3.49

$

In Stock, Qty 20+

0

15

Ariens 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.49

$

In Stock, Qty 20+

0

16

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06700221

PIN, HAIR #178 .06X.77 ZCC

$0.99

$

In Stock, Qty 13

0

19

Ariens 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06900508

CABLE, DEFLECTOR - COMPACT

$39.99

$

In Stock, Qty 5

0

21

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

22

Ariens 08335700

SG-COMP .125X.781X1.250

$9.49

$

In Stock, only 1 left!

0
