920027 - Ariens Compact 24" Snow Blower, Ariens AX 223cc engine (SN: 020492 - 259999) Friction Drive Parts Diagram

Compact 24" Snow Blower, Ariens AX 223cc engine

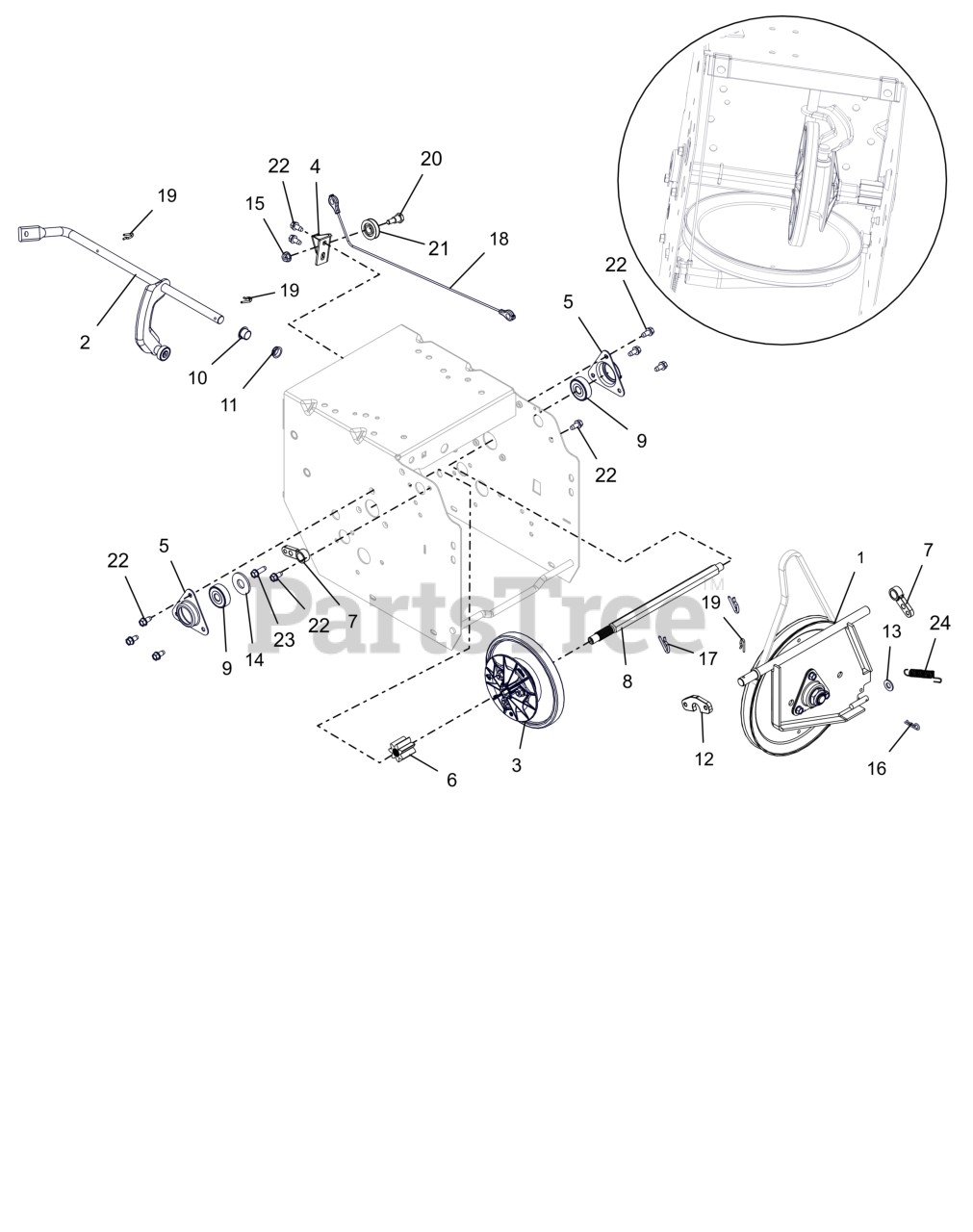

Friction Drive Parts Diagram

  • Title
1

Ariens 52105000

PLATE, SWING - ASSEMBLY

$85.99

$

In Stock, only 3 left!

0

2

Ariens 04987300

ARM, SHIFT-SMALL DASH (ASSY)

$45.99

$

Usually ships in 4-12 days

0

3

Ariens 04861600

DISC, FRICTION DRIVE-ASSEMBLY

$43.99

$

In Stock, Qty 19

0

4

Ariens 00373051

BRACKET, CABLE PULLEY
(Superseded to 00373000)

$

$

Not available

5

Ariens 00383000

FLANGE, BEARING

$12.99

$

In Stock, Qty 17

0

6

Ariens 00493900

GEAR, PINION, 7 TOOTH W/SPLINE

$

$

Not available

7

Ariens 03374500

SUPPORT BUSHING, SWING GATE

$3.99

$

In Stock, only 1 left!

0

8

Ariens 04149500

SHAFT, HEX W/SPLINE

$31.99

$

In Stock, Qty 6

0

9

Ariens 05435200

BRG-BALL .437X1.375X.437

$9.49

$

In Stock, Qty 20+

0

10

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 20+

0

11

Ariens 05500028

BUSHING, POLYLINER-.50 SNAPIN

$2.49

$

In Stock, Qty 18

0

12

Ariens 05500113

SPACER, SWING GATE

$5.99

$

In Stock, only 1 left!

0

13

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06401012

WSHR,FLT .563X1.375X.109 ZCC

$2.49

$

In Stock, only 1 left!

0

15

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

18

Ariens 06900504

CABLE, LOWER TRACTION (CMPCT)

$9.49

$

In Stock, Qty 12

0

19

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

20

Ariens 07001737

BOLT, SHLDR -.375 X .375 X .25-20

$3.99

$

In Stock, Qty 5

0

21

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 5

0

22

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

23

Ariens 07400131

SCR,TAP .25-20X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 6

0

24

Ariens 08300036

SPRING, EXT. .043X.438X1.64

$2.49

$

In Stock, only 2 left!

0
