920027 - Ariens Compact 24" Snow Blower, Ariens AX 223cc engine (SN: 020492 - 259999) Brakes And Idlers Parts Diagram

Compact 24" Snow Blower, Ariens AX 223cc engine

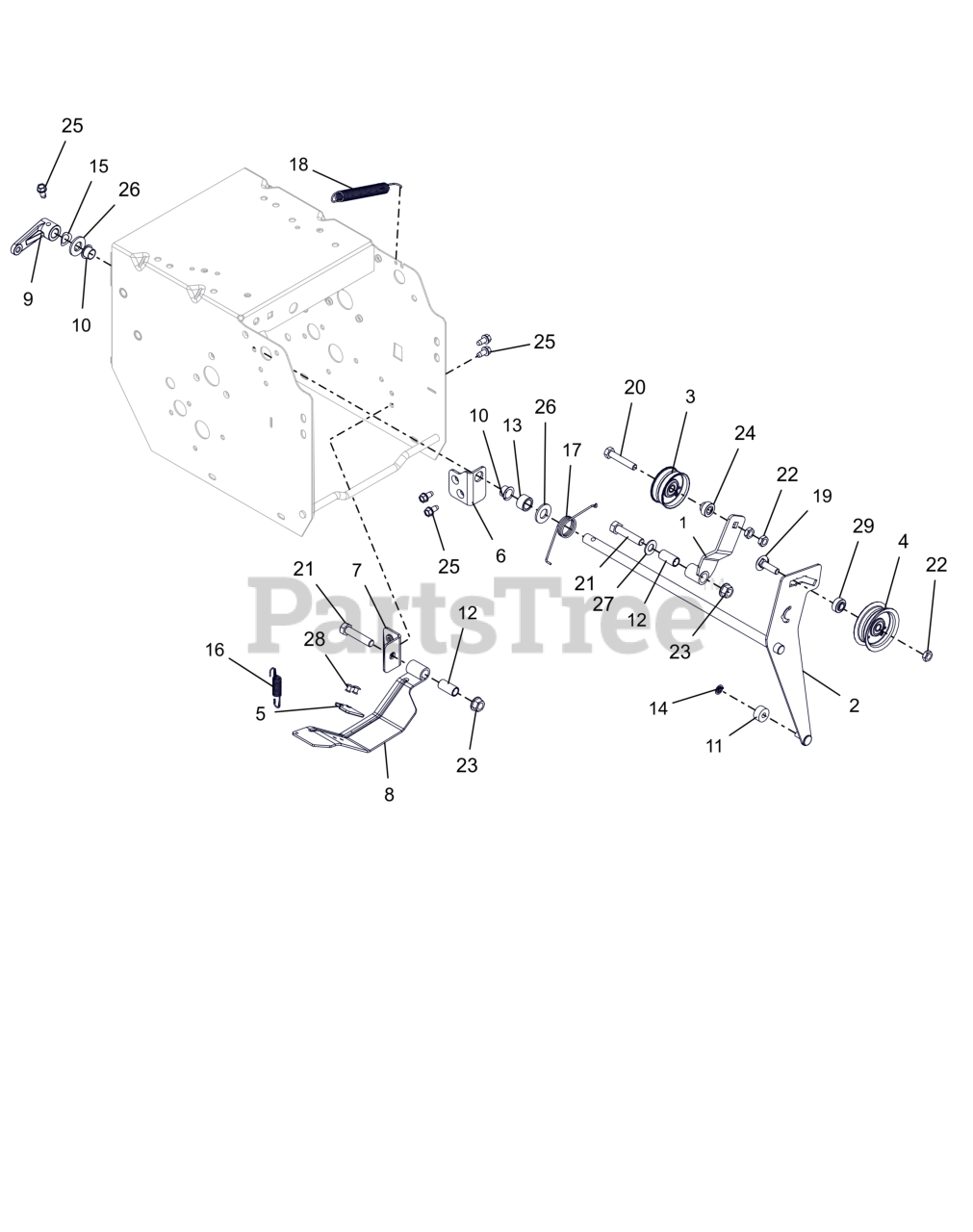

Brakes And Idlers Parts Diagram

  • Title
1

Ariens 00493667

ARM, TRACTION IDLER
(Superseded to 00493600)

$16.99

$

Usually ships in 4-12 days

0

2

Ariens 04892167

WELDMENT, ATTACHMENT IDLER ARM
(Superseded to 04892100)

$37.99

$

Usually ships in 4-12 days

0

3

Ariens 07338500

IDLER, FLAT - 1.875"

$22.99

$

In Stock, only 4 left!

0

4

Ariens 07338900

IDLER, FLAT - 2.00"

$22.99

$

In Stock, only 2 left!

0

5

Ariens 00180500

PAD, BRAKE

$10.99

$

In Stock, Qty 9

0

6

Ariens 00495051

BRACKET, MOUNT - IDLER ARM

$12.99

$

Usually ships in 4-12 days

0

7

Ariens 00495251

BRACKET, MOUNT - BRAKE

$11.99

$

Usually ships in 4-12 days

0

8

Ariens 52000500

BRAKE ARM W/PAD

$22.99

$

In Stock, only 1 left!

0

9

Ariens 01987100

ARM, CLUTCH - ATTACHMENT

$

$

Not available

10

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 20+

0

11

Ariens 05500037

BSHG,SLV .265 X .625 X .375

$

$

Not available

12

Ariens 05500106

BSHG-SLV .385X.500X1.045

$1.99

$

In Stock, Qty 20+

0

13

Ariens 05500107

BSHG-SLV .510X.751X.475

$1.49

$

In Stock, Qty 20+

0

14

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 19

0

15

Ariens 06400005

WSHR-WAVE .50X.75X.015 .13FRHT

$2.99

$

In Stock, only 2 left!

0

16

Ariens 08300104

SPRING-EXT .437 X .438 X 2.64

$3.49

$

In Stock, Qty 5

0

17

Ariens 08300326

SG-TORS .075 X .955

$3.49

$

Usually ships in 4-12 days

0

18

Ariens 08300528

SPRING, EXTENSION
(Superseded to 08300538)

$14.99

$

In Stock, Qty 20+

0

19

Ariens 06200334

BLT, RHSSN .31-18X1.125 G5 ZCC

$

$

Not available

20

Ariens 05901804

BLT, HEX .31-18X1.75 G5 ZCC

$2.99

$

In Stock, Qty 8

0

21

Ariens 05901809

BLT, HEX .38-16X1.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06500913

NUT-LK-CTR-JAM .312-18 GB ZCC

$0.99

$

In Stock, Qty 5

0

23

Ariens 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

24

Ariens 05501114

SPCR, BRG .315X.500X.481X.281

$

$

Not available

25

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

26

Ariens 06401015

WSHR,FLT .531X1.062X.095 ZCC

$0.99

$

In Stock, Qty 20+

0

27

Ariens 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

28

Ariens 06800140

RVT, POP .1875 ZCC

$0.99

$

In Stock, Qty 14

0

29

Ariens 05501115

SPCR, BRG .315X.500X.358X.281

$3.99

$

Usually ships in 4-12 days

0
