920026 - Ariens Compact 20" Snow Blower, Ariens AX 223cc engine (SN: 000101 - 002500) Auger And Impeller - 20" Parts Diagram

Compact 20" Snow Blower, Ariens AX 223cc engine

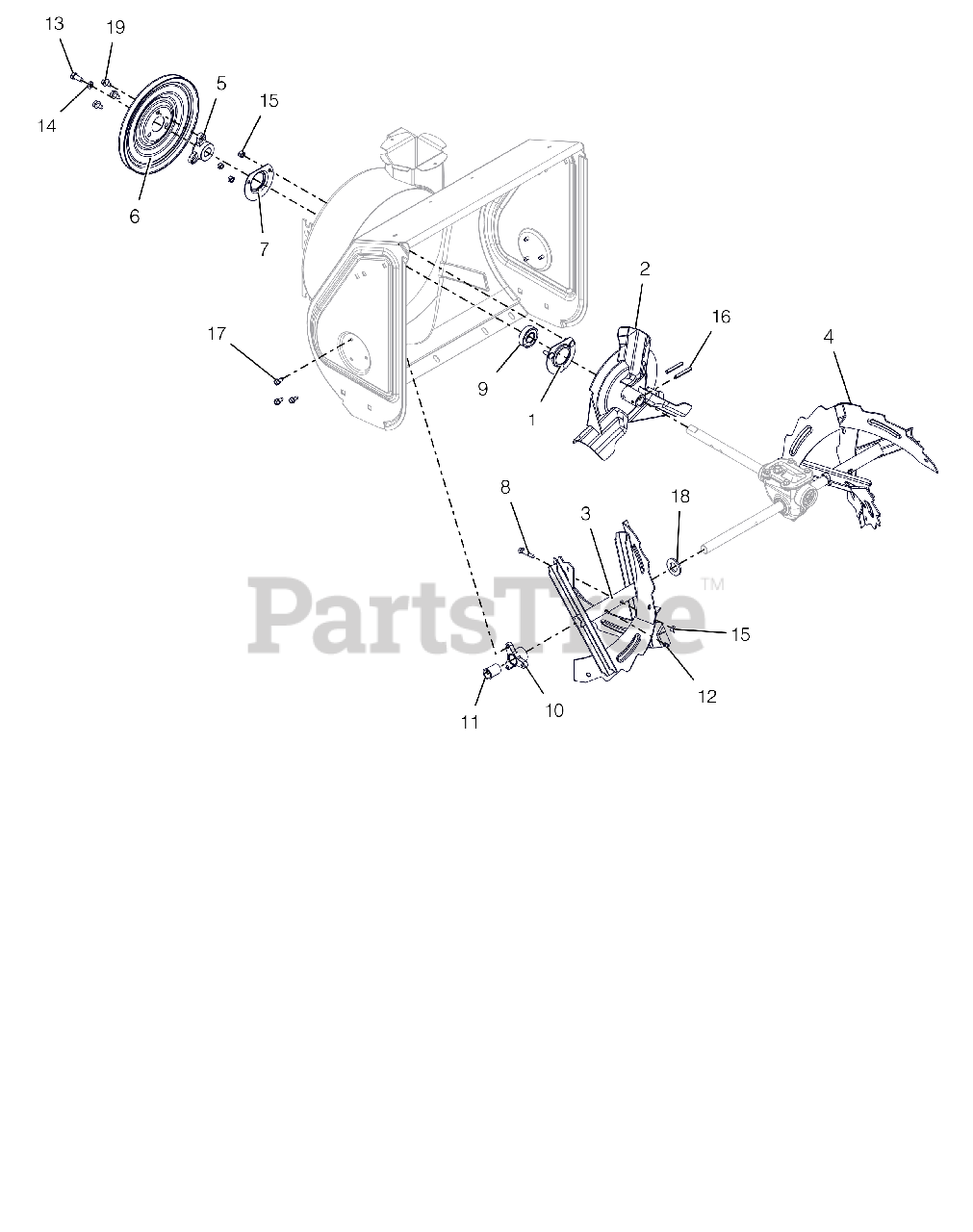

Auger And Impeller - 20" Parts Diagram

  • Title

1

Ariens 00428700

BEARING FLANGE

$18.99

$

In Stock, Qty 8

0

2

Ariens 03835551

IMPELLER, COMPACT 12" 3-BLADE

$82.99

$

In Stock, only 1 left!

0

3

Ariens 53212300

AUGER, 20" RH, BLK SERR W/ZERK

$170.99

$

In Stock, only 1 left!

0

4

Ariens 53212400

AUGER, LH 20", BLK SERR W/ZERK

$

$

Not available

5

Ariens 00268901

PULLEY HUB, BOLT-ON D-BORE .75

$9.49

$

In Stock, only 1 left!

0

6

Ariens 00268900

PULLEY,SPIN FORM SINGLE GROOVE
(Superseded to 00268951)

$

$

Not available

7

Ariens 01014200

BEARING FLANGE

$5.99

$

In Stock, Qty 20+

0

8

Ariens 03204300

SHEAR BOLT
(Superseded to 53200500)

$2.99

$

In Stock, Qty 20+

0

9

Ariens 05406300

BRG-BALL .750X1.750X.50

$25.99

$

In Stock, Qty 20+

0

10

Ariens 05500103

BUSHING, RAKE SHAFT .75"

$14.99

$

In Stock, Qty 17

0

11

Ariens 05500109

BSHG-FLG SPLIT NYLINER .75"ID

$3.99

$

In Stock, Qty 20+

0

12

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$3.99

$

In Stock, Qty 20+

0

13

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 20+

0

17

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06439000

@WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0
