920025 - Ariens Classic 24" Snow Blower, Ariens AX 208cc engine (SN: 000101 - 018966) Dash Parts Diagram

Classic 24" Snow Blower, Ariens AX 208cc engine

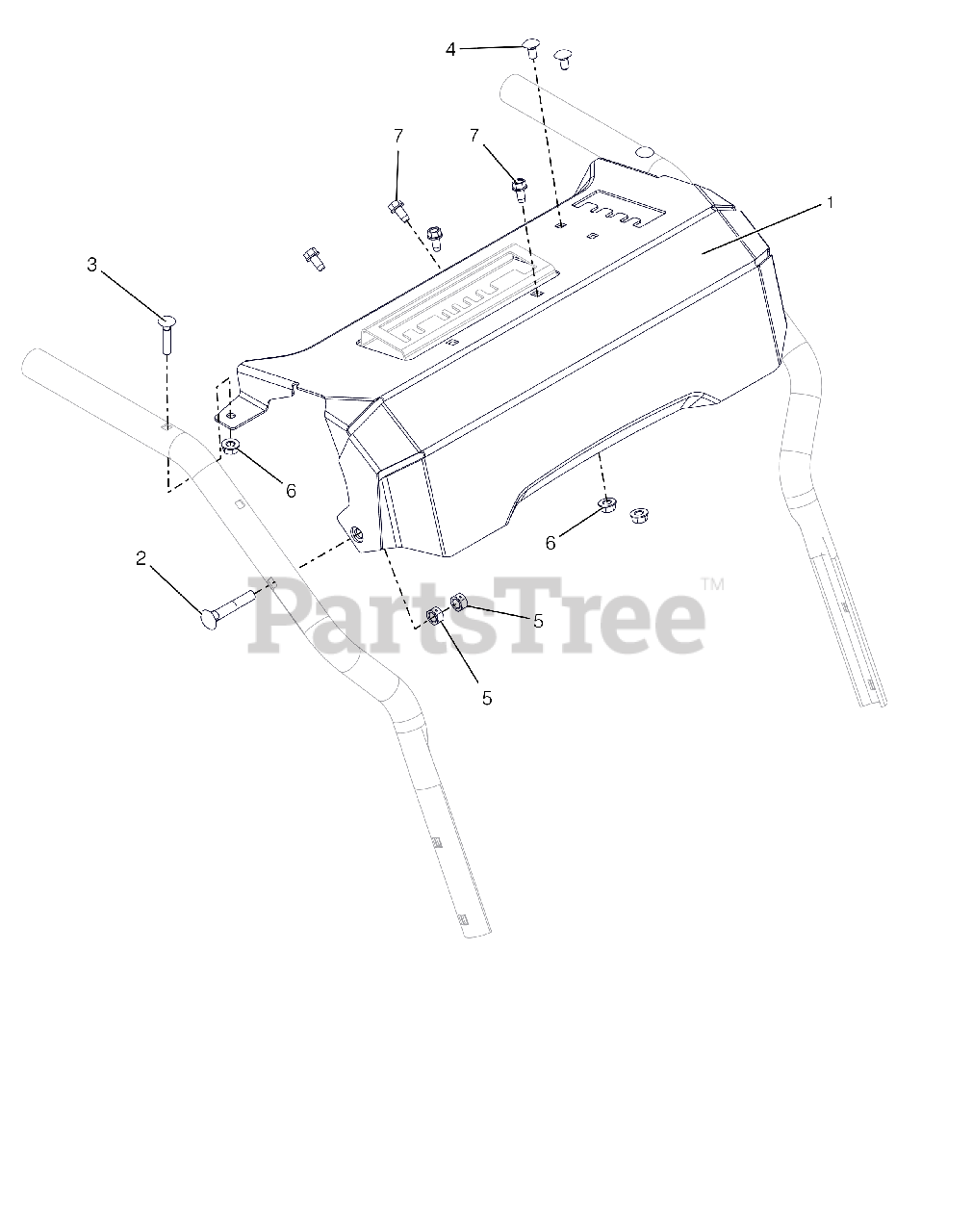

Dash Parts Diagram

  • Title
1

Ariens 52007300

CTRL PANEL W/DECAL-SNOTEK REMO

$98.99

$

Usually ships in 4-12 days

0

2

Ariens 06200207

BLT-RDHDXLSQNK .31-18X2.0 G5YZ

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

In Stock, only 4 left!

0

4

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
