920024 - Ariens Compact 20" Snow Blower, Ariens AX 208cc engine (SN: 000101 - 001900) Discharge Chute Controls Parts Diagram

Compact 20" Snow Blower, Ariens AX 208cc engine

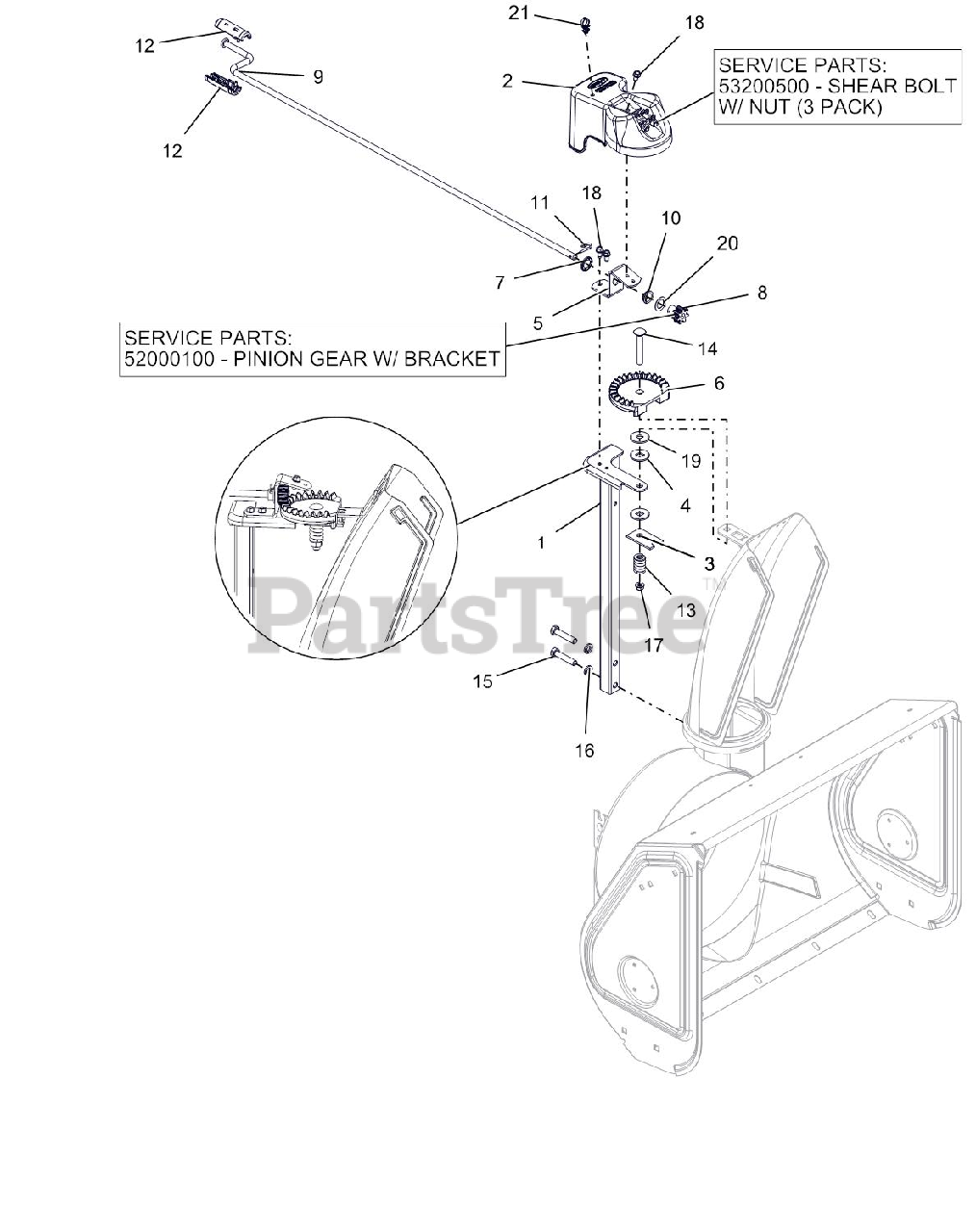

Discharge Chute Controls Parts Diagram

  • Title

1

Ariens 03883751

CHUTE PEDESTAL, TALL COMPACT

$41.99

$

Usually ships in 4-12 days

0

2

Ariens 53200500

SHEAR BOLT WITH NUT

Note: SERVICE PART

$2.99

$

In Stock, Qty 20+

0

2

Ariens 04456700

GEAR COVER ASSY SM SHEAR BOLT
(Superseded to 52006400)

$

$

Not available

3

Ariens 00398000

PLATE, FRICTION

$7.49

$

In Stock, Qty 11

0

4

Ariens 01123800

FRICTION WASHER

$3.99

$

In Stock, Qty 20+

0

5

Ariens 01972451

BRACKET, PINION GEAR

$

$

Not available

6

Ariens 03222900

CHUTE GEAR

$11.99

$

In Stock, Qty 20+

0

7

Ariens 03224300

PUSHNUT .625

$2.49

$

In Stock, Qty 14

0

8

Ariens 52000100

PINION GEAR W/BRACKET

Note: SERVICE PART

$28.99

$

In Stock, Qty 6

0

8

Ariens 03735300

PINION GEAR - CHUTE

$14.99

$

In Stock, only 1 left!

0

9

Ariens 04338000

ROD, CHUTE CRANK, COMP&SNOTEK

$53.99

$

In Stock, only 2 left!

0

10

Ariens 05500021

BUSHING, POLYLINER-.63 SNAPIN

$2.99

$

In Stock, Qty 13

0

11

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

12

Ariens 07500330

KNOB,CRANK-SNAP COMPACT-GRAY

$3.99

$

In Stock, Qty 10

0

13

Ariens 08320900

SG-COMP .187X.56X1.62

$4.99

$

In Stock, Qty 20+

0

14

Ariens 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$3.99

$

In Stock, Qty 20+

0

15

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06400917

@WSHR-FL-STL .406X1.25X.10 ZC
(Superseded to 06401021)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06400009

WSHR-THRST .625 X 1.0 X .03

$2.49

$

In Stock, Qty 20+

0

21

Ariens 04451600

CLIP, CABLE GUIDE

$2.49

$

In Stock, only 2 left!

0
