920021 - Ariens Compact 24" Snow Blower, Ariens AX 208cc engine (SN: 180000 - 274999) Discharge Chute Parts Diagram

Compact 24" Snow Blower, Ariens AX 208cc engine

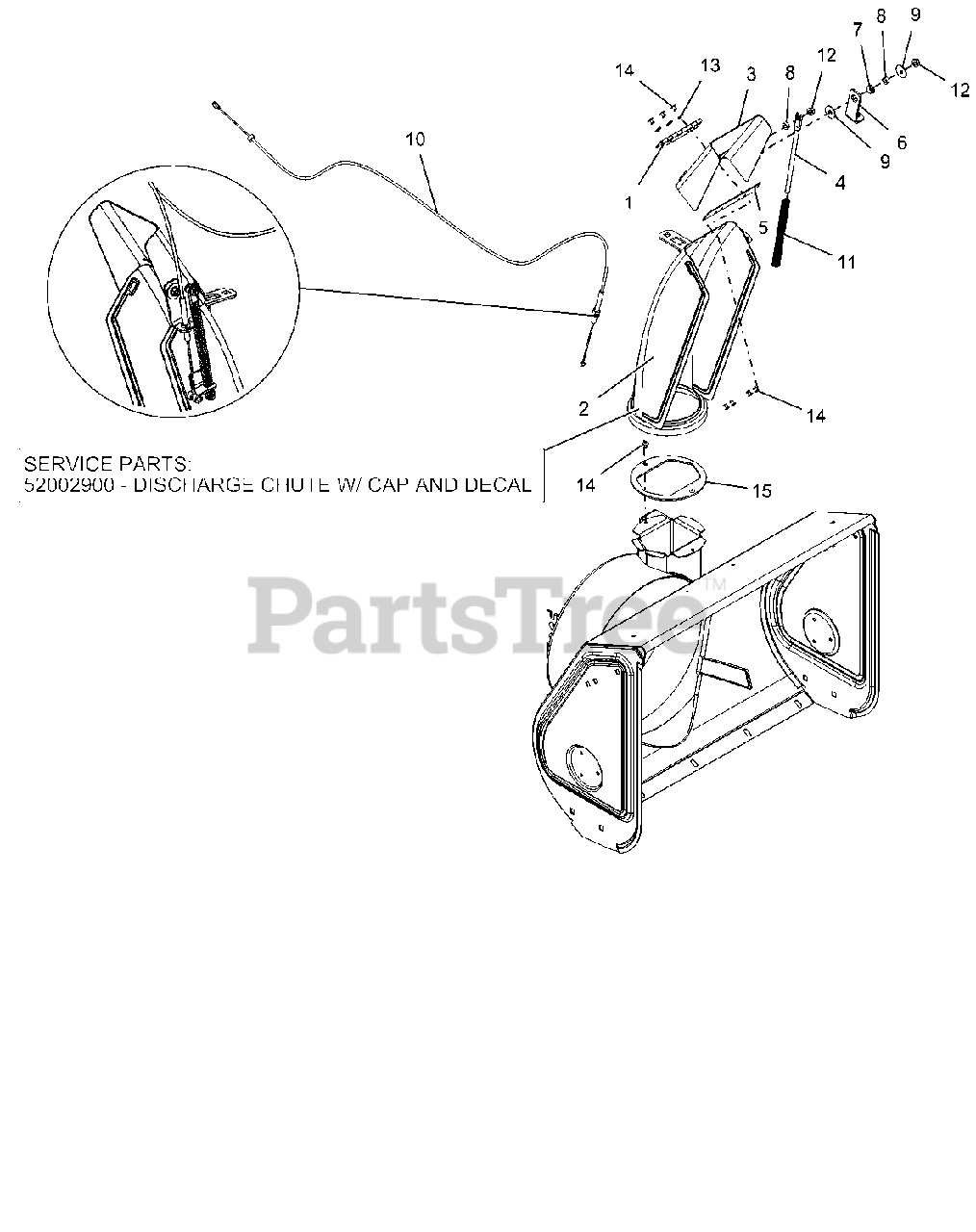

Discharge Chute Parts Diagram

  • Title
1

$11.99

$

In Stock, only 1 left!

0

2

Ariens 04092759

CHUTE, COMPACT-TALL W/REMOTE

$75.99

$

Usually ships in 4-12 days

0

3

Ariens 04092859

CAP, COMPACT-W/REMOTE
(Superseded to 52110200)

$

$

Not available

4

Ariens 00389000

ROD, DEFLECTOR CAP

$14.99

$

In Stock, only 2 left!

0

5

Ariens 00628500

CAP SEAL 5.25

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 04115359

BRACKET, CABLE ANCHOR

$60.99

$

Usually ships in 4-12 days

0

7

Ariens 05500028

BUSHING, POLYLINER-.50 SNAPIN

$2.49

$

In Stock, Qty 18

0

8

Ariens 05501012

BSHG-SLV .265X.500X.219

$3.99

$

In Stock, Qty 10

0

9

Ariens 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06900508

CABLE, DEFLECTOR - COMPACT

$39.99

$

In Stock, Qty 5

0

11

Ariens 08300013

SG-COMP .08X.40X6.50 14#/IN

$9.49

$

In Stock, Qty 6

0

12

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06400003

WSHR-FL-STL .196X.500X.06 YZ
(Superseded to 06401029)

$

$

Not available

14

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$0.99

$

In Stock, Qty 7

0

15

Ariens 03889400

BAFFLE, COMPACT DISCHARGE

$17.99

$

Usually ships in 4-12 days

0

16

Ariens 52002900

CHUTE, DISCHARGE W/REM.CAP,DEC
(Superseded to 52008600)

Note: SERVICE PART

$116.99

$

Usually ships in 4-12 days

0
