920021 - Ariens Compact 24" Snow Blower, Ariens AX 208cc engine (SN: 086470 - 179999) Wheels And Axle Parts Diagram

Compact 24" Snow Blower, Ariens AX 208cc engine

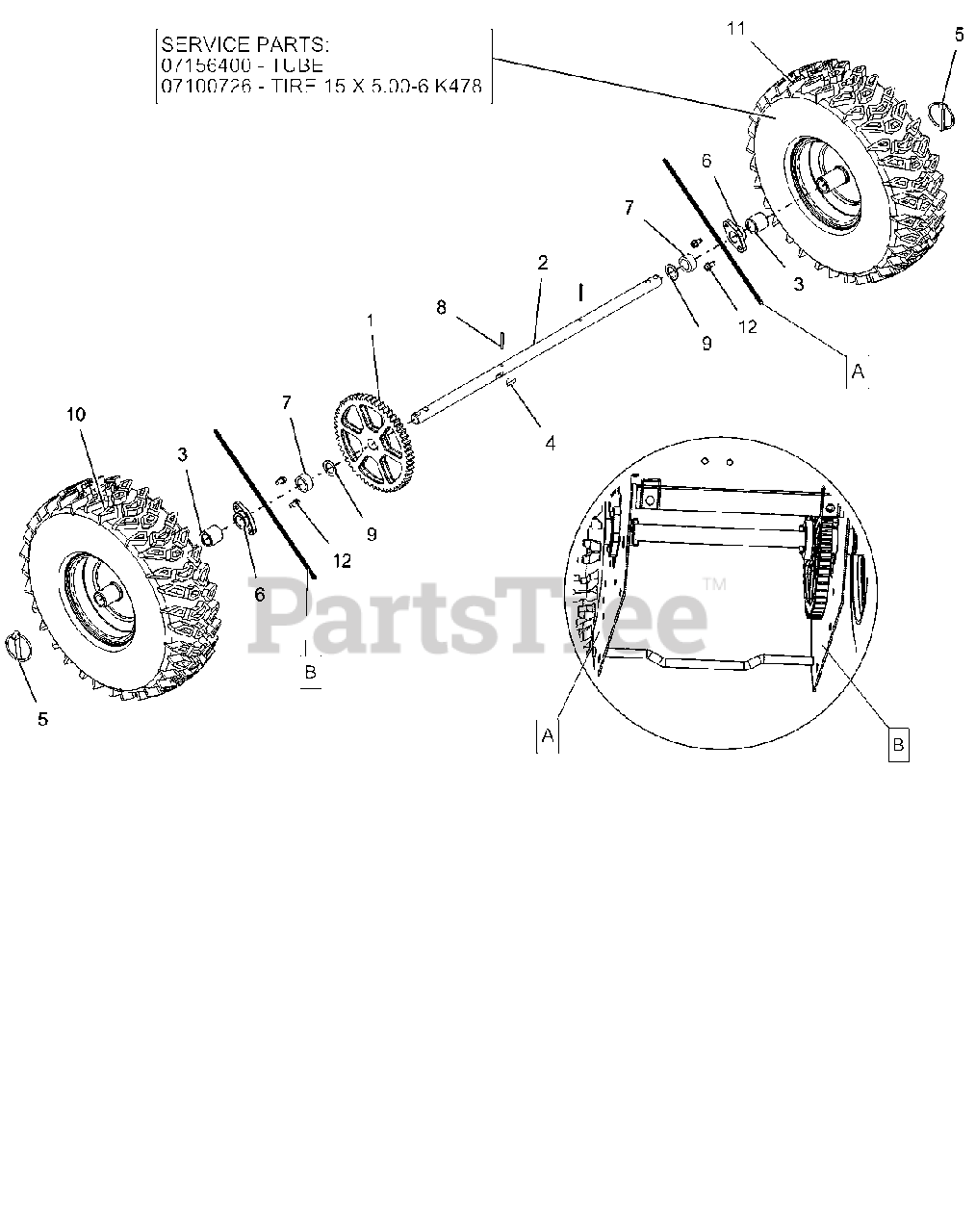

Wheels And Axle Parts Diagram

  • Title

1

Ariens 00657800

SPUR GEAR, 54T .75ID X 6.75PD

$38.99

$

Usually ships in 4-12 days

0

2

Ariens 03881800

AXLE, COMPACT 920,XXX 15" TIRE

$68.99

$

Usually ships in 4-12 days

0

3

Ariens 05500917

BSHG-SLV .75X1.12X1.062 NYL BK

$3.49

$

In Stock, only 2 left!

0

4

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

$2.99

$

In Stock, Qty 20+

0

5

Ariens 07053700

PIN-LOK .31X1.75

$2.49

$

In Stock, Qty 20+

0

6

Ariens 05500101

BSHG .75X1.125X.65

$9.99

$

In Stock, Qty 10

0

7

Ariens 05500140

BSHG-SLV .766 X 1.125 X .500

$3.99

$

Usually ships in 4-12 days

0

8

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 07101015

TIRE/WHEEL, RH 15X5.00-6 PIN
(Superseded to 07101206)

$102.99

$

In Stock, only 1 left!

0

11

Ariens 07101016

TIRE/WHEEL, LH 15X5.00-6 PIN
(Superseded to 07101207)

$102.99

$

Usually ships in 4-12 days

0

12

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 07156400

TUBE 15 X 5.00-6

Note: Optional Component Service Part

$20.99

$

In Stock, only 2 left!

0

14

Ariens 07100726

TIRE, 15X5.00-6 K478

Note: Component Service Part

$69.99

$

In Stock, only 1 left!

0
