920021 - Ariens Compact 24" Snow Blower, Ariens AX 208cc engine (SN: 000101 - 075999) Friction Drive Parts Diagram

Compact 24" Snow Blower, Ariens AX 208cc engine

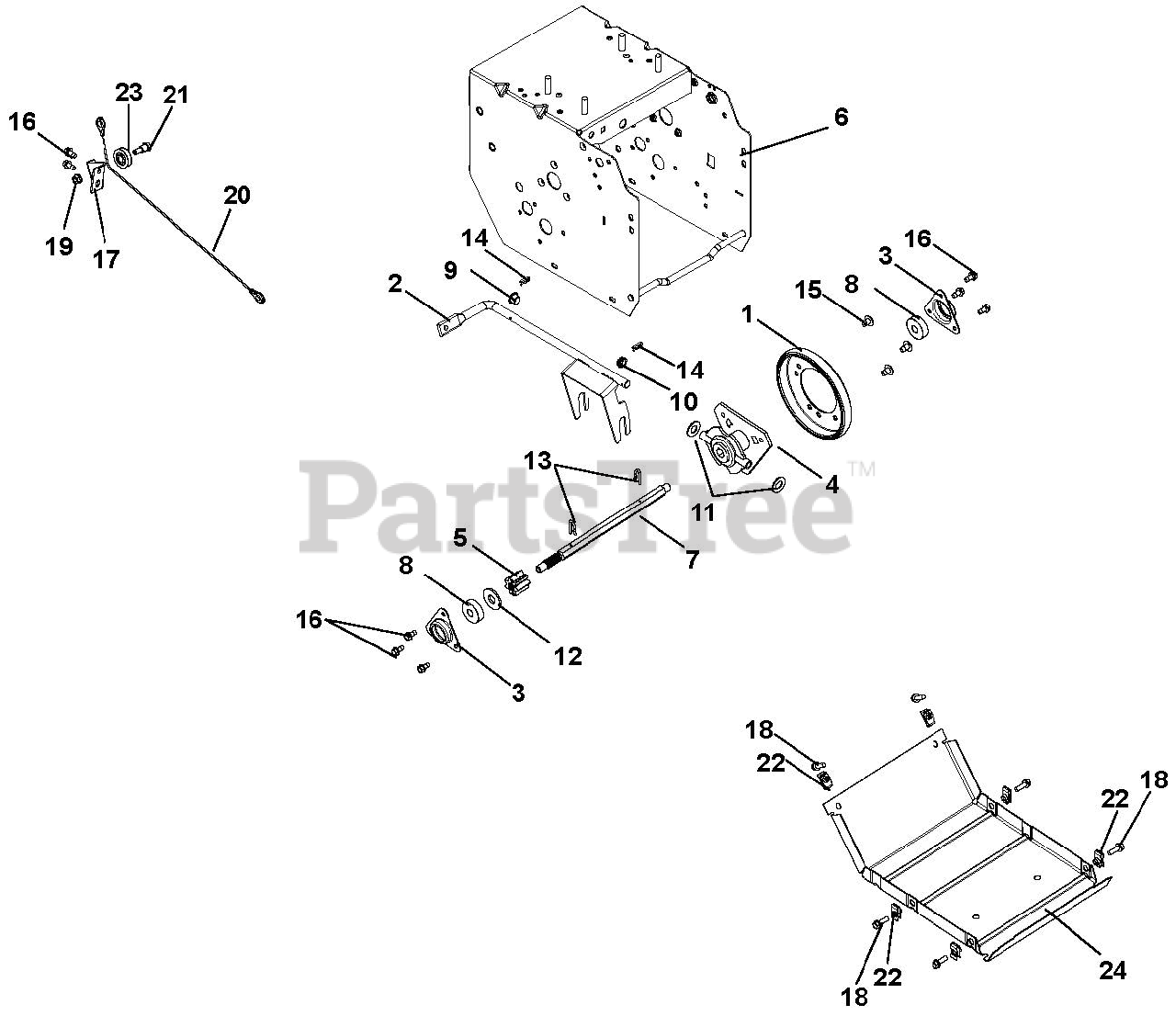

Friction Drive Parts Diagram

  • Title

1

Ariens 00170800

FRICTION, DISC
(Superseded to 09475300)

$35.99

$

In Stock, Qty 20+

0

2

Ariens 00656951

WELDMENT, SHIFT FORK

$103.99

$

Usually ships in 4-12 days

0

3

Ariens 00383000

FLANGE, BEARING

$12.99

$

In Stock, Qty 17

0

4

Ariens 00383100

CARRIER, DRIVE DISK

$117.99

$

In Stock, Qty 11

0

5

Ariens 00493900

GEAR, PINION, 7 TOOTH W/SPLINE

$

$

Not available

6

Ariens 52006200

FRAME W/ENGINE BOLT STRAPS

$

$

Not available

7

Ariens 04149500

SHAFT, HEX W/SPLINE

$31.99

$

In Stock, Qty 8

0

8

Ariens 05435200

BRG-BALL .437X1.375X.437

$9.49

$

In Stock, Qty 20+

0

9

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 20+

0

10

Ariens 05500028

BUSHING, POLYLINER-.50 SNAPIN

$2.49

$

In Stock, Qty 20+

0

11

Ariens 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 2 left!

0

13

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

14

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

15

Ariens 07400009

SCR-TAP SERRDHDTX .31-18X.50BP
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 00373051

BRACKET, CABLE PULLEY
(Superseded to 00373000)

$

$

Not available

18

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06900504

CABLE, LOWER TRACTION (CMPCT)

$9.49

$

In Stock, Qty 17

0

21

Ariens 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.99

$

In Stock, Qty 5

0

22

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

23

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 12

0

24

Ariens 00492359

COVER, BOTTOM

$48.99

$

Usually ships in 4-12 days

0
