920010 - Ariens Compact 24" Snow Blower, Subaru (SN: 000101 & Above) Auger And Chute Parts Diagram

Compact 24" Snow Blower, Subaru

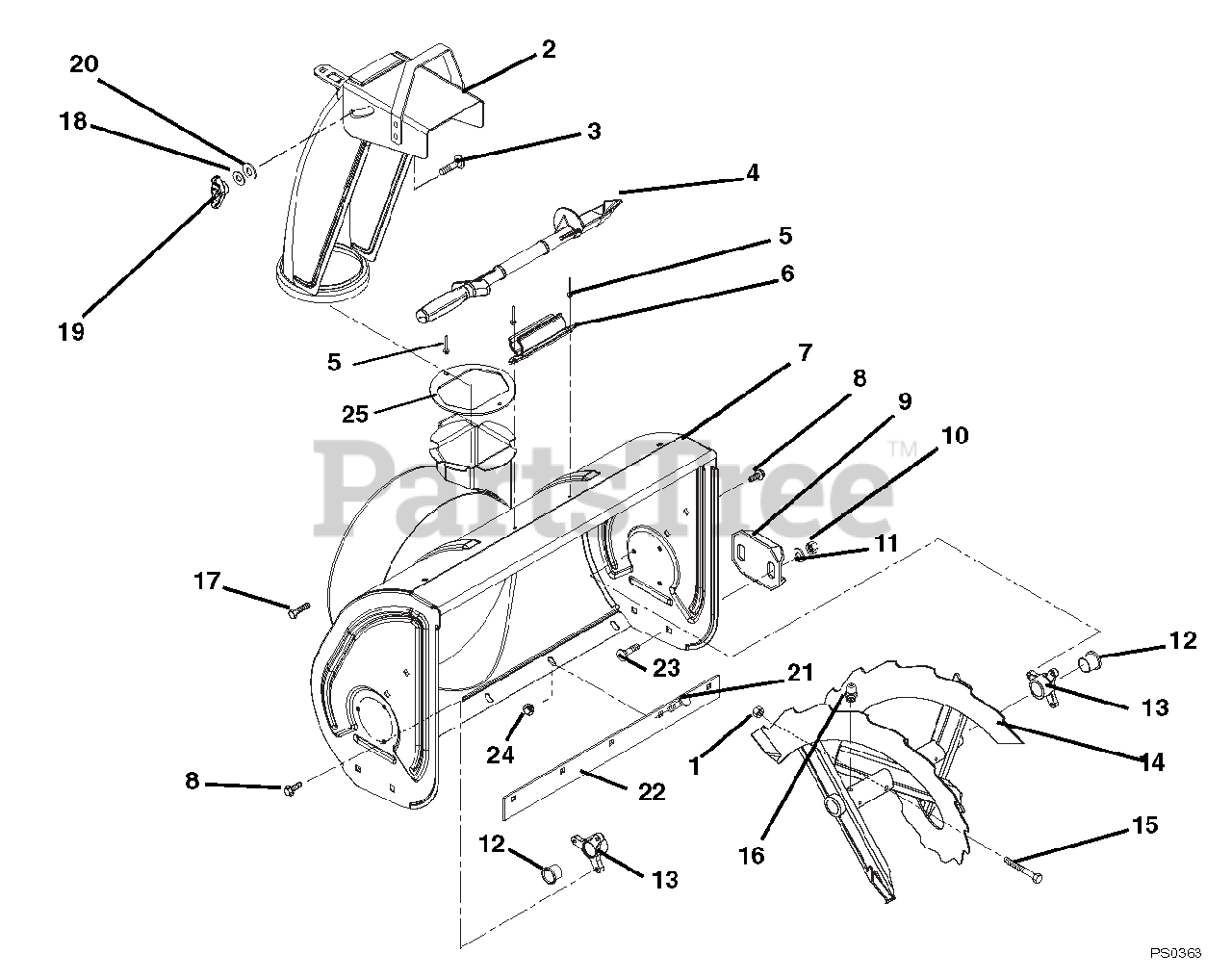

Auger And Chute Parts Diagram

  • Title

1

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 52001500

CHUTE, DISCHARGE W/CAP & DECAL

$

$

Not available

3

Ariens 06200007

@BLT-RHDSSQNK .31-18X1.00 G5YZ
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

4

Ariens 00170200

DEVICE, SNOW CLEAN OUT

$21.99

$

In Stock, Qty 10

0

5

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$0.99

$

In Stock, Qty 14

0

6

Ariens 00170300

MOUNT, SNOW CLEAN OUT

$11.99

$

In Stock, only 4 left!

0

7

Ariens 52000400

BLOWER HOUSING - 24"
(Superseded to 52001900)

Note: (920006, 010, 302)

$362.99

$

Usually ships in 4-12 days

0

7

Ariens 52000600

BLOWER HOUSING - 20"
(Superseded to 52002000)

Note: (920007, 303)

$362.99

$

Usually ships in 4-12 days

0

8

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 02483859

SKID SHOE, REVERSIBLE - ORANGE

$19.99

$

In Stock, Qty 20+

0

10

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 05500109

BSHG-FLG SPLIT NYLINER .75"ID

$3.99

$

In Stock, Qty 20+

0

13

Ariens 05500103

BUSHING, RAKE SHAFT .75"

$14.99

$

In Stock, Qty 17

0

14

Ariens 53213100

RAKE, 24" RH, BLK SERR W/ZERK

Note: (Includes Items 16) (920006, 010, 302)

$118.99

$

In Stock, only 4 left!

0

14

Ariens 53212300

AUGER, 20" RH, BLK SERR W/ZERK

Note: (Includes Items 16) (920007, 303)

$170.99

$

In Stock, only 1 left!

0

14

Ariens 53213200

RAKE, 24" LH, BLK SERR W/ZERK

Note: (Includes Items 16) (920006, 010, 302)

$

$

Not available

14

Ariens 53212400

AUGER, LH 20", BLK SERR W/ZERK

Note: (Includes Items 16) (920007, 303)

$

$

Not available

15

Ariens 53200500

SHEAR BOLT WITH NUT

Note: (Includes Items 1)

$2.99

$

In Stock, Qty 20+

0

16

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$3.99

$

In Stock, Qty 20+

0

17

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 07500105

KNOB,WING .31-18 UNC NYL/TALC

$3.99

$

In Stock, Qty 20+

0

20

Ariens 06433600

WSHR-FL-NY .375X.75X.060

$0.99

$

In Stock, Qty 11

0

21

Ariens 06200120

BLT,RDSHHDSQSHNK .31-18X.62 YZ
(Superseded to 06200209)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 03884459

SCRAPER BLADE, 24" COMPACT HI

Note: (920006, 010, 302)

$27.99

$

In Stock, Qty 8

0

22

Ariens 00396659

BLADE, SCRAPER - 20" COMPACT

Note: (920007, 303)

$28.99

$

In Stock, only 3 left!

0

23

Ariens 06200004

@BLT-RHDSSQNK .38-16X.75 G5YZ
(Superseded to 06200336)

$2.49

$

In Stock, Qty 20+

0

24

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 03889400

BAFFLE, COMPACT DISCHARGE

$17.99

$

Usually ships in 4-12 days

0
