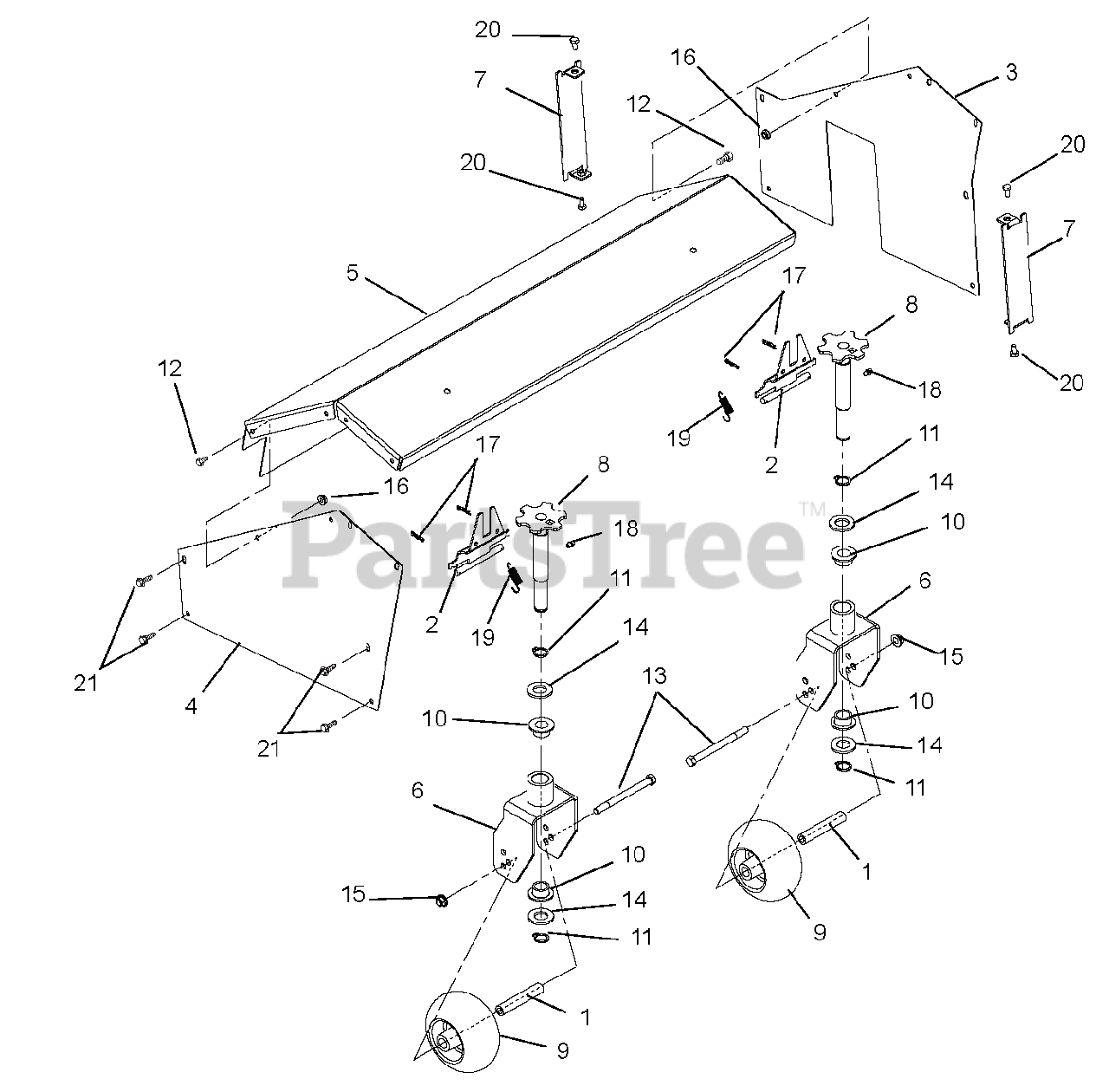

920008 - Ariens Sno-Brush 28" Power Brush, Briggs & Stratton (SN: 000101 & Above) Brush Head Parts Diagram

Sno-Brush 28" Power Brush, Briggs & Stratton

Brush Head Parts Diagram

  • Title

1

Ariens 00188000

SPACER, CASTER WHEEL

$

$

Not available

2

Ariens 00188151

LOCK,CASTER HEIGHT

$58.99

$

Usually ships in 4-12 days

0

3

Ariens 00256659

COVER,LH SIDE BRUSH

$50.99

$

Usually ships in 4-12 days

0

4

Ariens 00258159

COVER,RH SIDE BRUSH

$

$

Not available

5

Ariens 53216100

COVER WITH DECALS, 28"BRUSH

$

$

Not available

6

Ariens 00261851

CASTER FORK, BRUSH

$

$

Not available

7

Ariens 00267451

COVER,END

$16.99

$

Usually ships in 4-12 days

0

8

Ariens 00274500

HEIGHT ADJUSTER, CASTER

$51.99

$

Usually ships in 4-12 days

0

9

Ariens 00473600

WHEEL, ANTI SCALP
(Superseded to 03905900)

$11.99

$

In Stock, Qty 20+

0

10

Ariens 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$4.99

$

In Stock, Qty 20+

0

11

Ariens 05714600

RG-RTNG-EXT .689X.078

$2.49

$

In Stock, Qty 5

0

12

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 05970400

@BLT-HEX .38-16X4.50 GR5 YWZC
(Superseded to 05901938)

$4.99

$

In Stock, only 2 left!

0

14

Ariens 06439000

@WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

19

Ariens 08300103

SPRING-EXT .047 X .438 X 1.85

$2.49

$

In Stock, Qty 20+

0

20

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
