920 H (1690894) - Allis-Chalmers Garden Tractor, 18.5hp Diesel Clutch & Brake Group Parts Diagram

Garden Tractor, 18.5hp Diesel

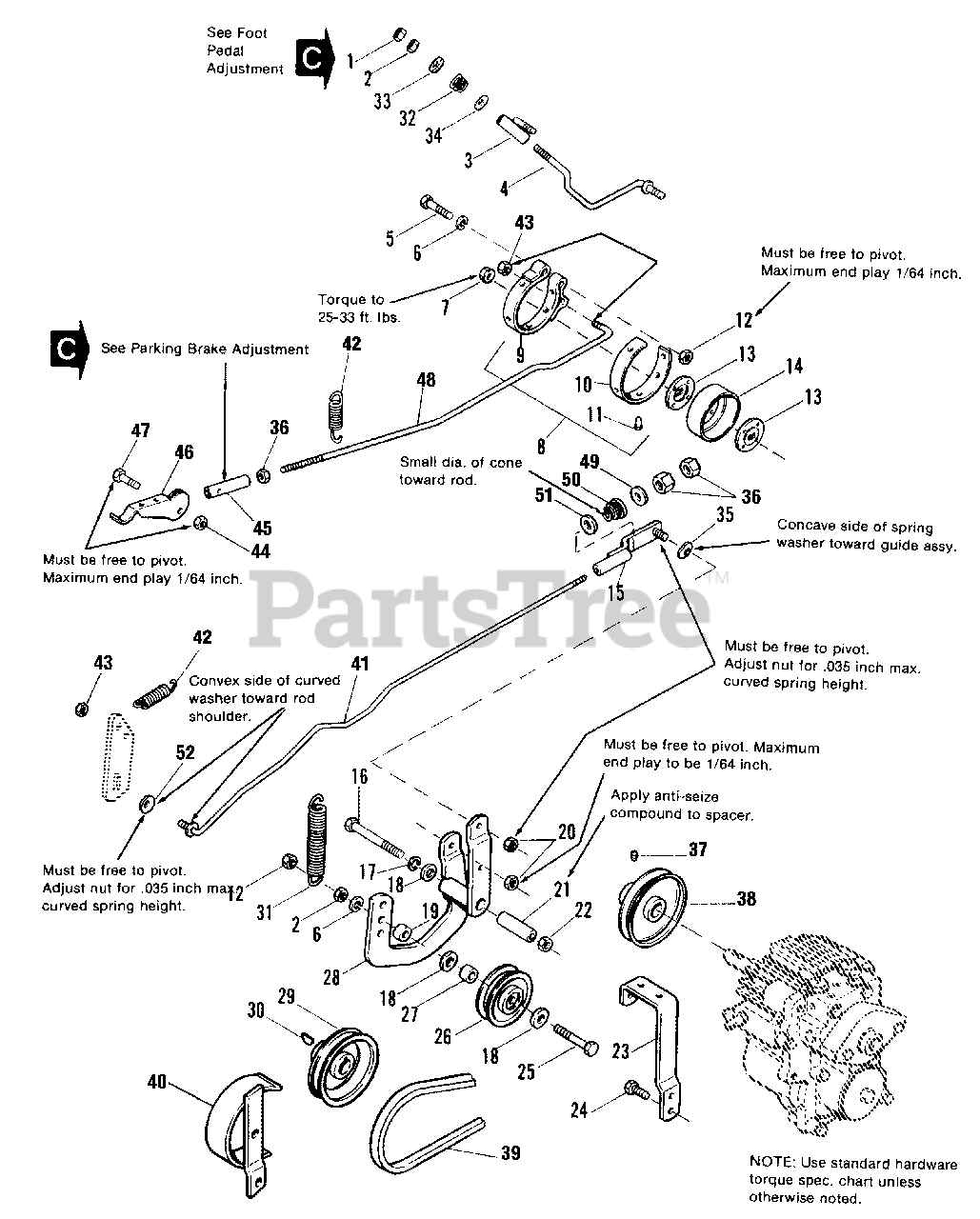

Clutch & Brake Group Parts Diagram

  • Title

1

Simplicity 2819439

LOCKNUT, Hex, Esna, 3/8-16

$

$

Not available

2

Simplicity 2816950SM

NUT, Hex, Full 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

3

Simplicity 2166119SM

GUIDE ASSY., Rod

$51.99

$

In Stock, only 1 left!

0

4

Simplicity 1650651SM

ROD, Brake

$22.99

$

Usually ships in 2-12 days

0

5

Simplicity 2821971

CAPSCREW, Hex Hd., 3/8-16 x 1-3/4

$

$

Not available

6

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

7

Simplicity 2830650

LOCKNUT, Hex, Flange, 7/16-14

$

$

Not available

8

Simplicity 2172234

BAND ASSY., Brake

$

$

Not available

9

BAND, Brake (See Ref. No. 8)

$

$

Not available

10

Simplicity 2172237

LINING, Brake

$

$

Not available

11

Simplicity 2826021SM

RIVET, 3/16 x 1/4

$3.49

$

Usually ships in 2-12 days

0

12

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

13

Simplicity 2158196SM

WASHER, Special

$5.49

$

Usually ships in 2-12 days

0

14

Simplicity 2166176SM

DRUM, Brake

$14.99

$

Usually ships in 2-12 days

0

15

Simplicity 2166157SM

GUIDE ASSY., Rod
(Superseded to 2166157ASM)

$53.99

$

Usually ships in 2-12 days

0

16

Simplicity 2828295

CAPSCREW, Hex Hd., 7/16-14 x 3-3/4

$

$

Not available

17

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

18

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

19

Simplicity 2157081SM

SPACER

$8.99

$

In Stock, Qty 6

0

20

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

21

Simplicity 2166130SM

SPACER

$14.99

$

Usually ships in 2-12 days

0

22

Simplicity 2818213

NUT, Hex, Full, 7/16-14

$

$

Not available

23

Simplicity 2166156

BRACKET

$

$

Not available

24

Simplicity 2826035

SCREW, Self Tapping, 3/8 x 3/4

$

$

Not available

25

Simplicity 2821972

CAPSCREW, Hex Hd., 3/8-16 x 2-1/2

$

$

Not available

26

Simplicity 1685144SM

PULLEY ASSY.

$

$

Not available

27

Simplicity 1666294SM

SPACER

$4.99

$

In Stock, Qty 20+

0

28

Simplicity 2166126SM

LEVER ASSY., Idler

$

$

Not available

29

Simplicity 1657323SM

PULLEY
(Superseded to 1657323ASM)

$87.99

$

Usually ships in 2-12 days

0

30

Simplicity 2805123SM

KEY
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 18

0

31

Simplicity 2154369SM

SPRING

$17.99

$

In Stock, Qty 8

0

32

Simplicity 2157127SM

SPRING, Cone

$

$

Not available

33

Simplicity 2822611

WASHER

$

$

Not available

34

Simplicity 2817642

WASHER

$

$

Not available

35

Simplicity 1668737SM

WASHER, Curved, Spring

$

$

Not available

36

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

37

Simplicity 2828709

SETSCREW, 5/16-18 x 3/8

$

$

Not available

38

Simplicity 2166173SM

PULLEY, Drive
(Superseded to 2166173ASM)

$117.99

$

Usually ships in 2-12 days

0

39

Simplicity 1650502SM

V-BELT, Drive

$29.99

$

In Stock, Qty 9

0

40

Simplicity 2166122SM

GUARD ASSY.

$

$

Not available

41

Simplicity 1650531SM

ROD, Clutch

$86.99

$

Usually ships in 2-12 days

0

42

Simplicity 2121037SM

SPRING

$

$

Not available

43

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

44

Simplicity 2823358

LOCKNUT, Hex, 1/4-20

$

$

Not available

45

Simplicity 2171994SM

END, Rod

$15.99

$

In Stock, only 1 left!

0

46

Simplicity 2172108SM

LEVER, Parking Brake

$

$

Not available

47

Simplicity 2826771

CAPSCREW, Hex Hd., 1/4-20 x 1

$

$

Not available

48

Simplicity 1668419SM

ROD ASSY.

$22.99

$

Usually ships in 2-12 days

0

49

Simplicity 2819381

WASHER, 5/16

$

$

Not available

50

Simplicity 2157127SM

SPRING, Cone

$

$

Not available

51

Simplicity 2817377

WASHER

$

$

Not available

52

Simplicity 1668737SM

WASHER, Curved, Spring

$

$

Not available
