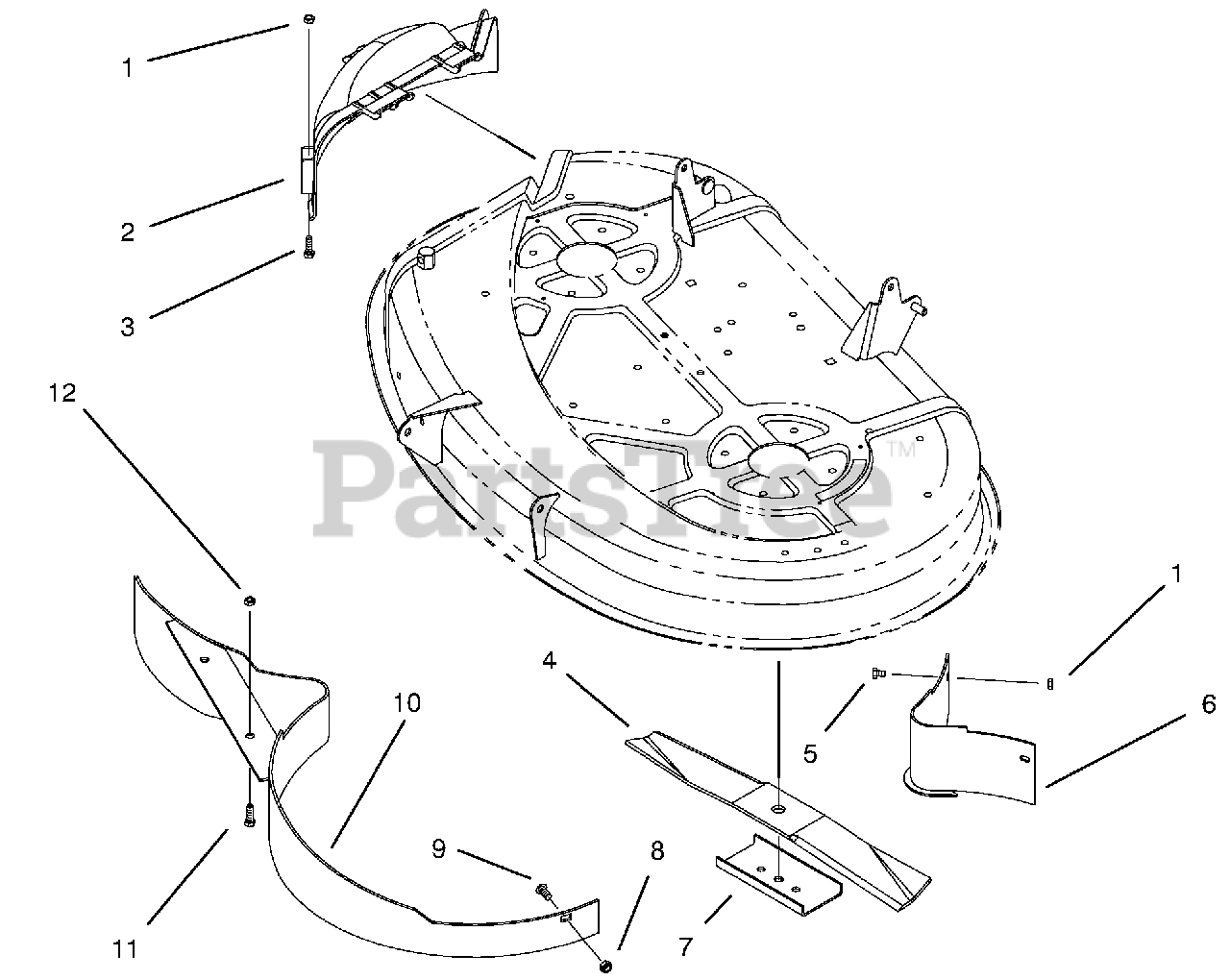

92-6830 - Lawn-Boy Mulcher Kit for 38" LT Tractor COVER & BAFFLE ASSEMBLY Parts Diagram

Mulcher Kit for 38" LT Tractor

COVER & BAFFLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 3296-42

Nut-Lock

$0.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 88-4520

Cover-Discharge

$

$

Not available

3

Lawn-Boy 321-14

Screw-Hex Hd. Cap

$4.99

$

In Stock, Qty 12

0

4

Lawn-Boy 88-5140

Blade-Power Mulch
(Superseded to 88-5140-03)

$38.99

$

In Stock, Qty 5

0

5

Lawn-Boy 321-4

Screw-Hex Hd. Cap

$1.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 79-1640

Baffle-Rear
(Superseded to 79-1640-03)

$59.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 80-0510

Stiffener-Blade
(Superseded to 80-0510-03)

$17.99

$

In Stock, Qty 7

0

8

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 14

0

9

Lawn-Boy 3230-1

Bolt-Carriage

$1.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 88-6210

Baffle-Power Mulch

$136.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 323-5

Screw-Hex Hd. Cap

$1.49

$

Usually ships in 3-6 days

0

12

Lawn-Boy 3296-39

Nut-Lock

$2.99

$

In Stock, Qty 20+

0
