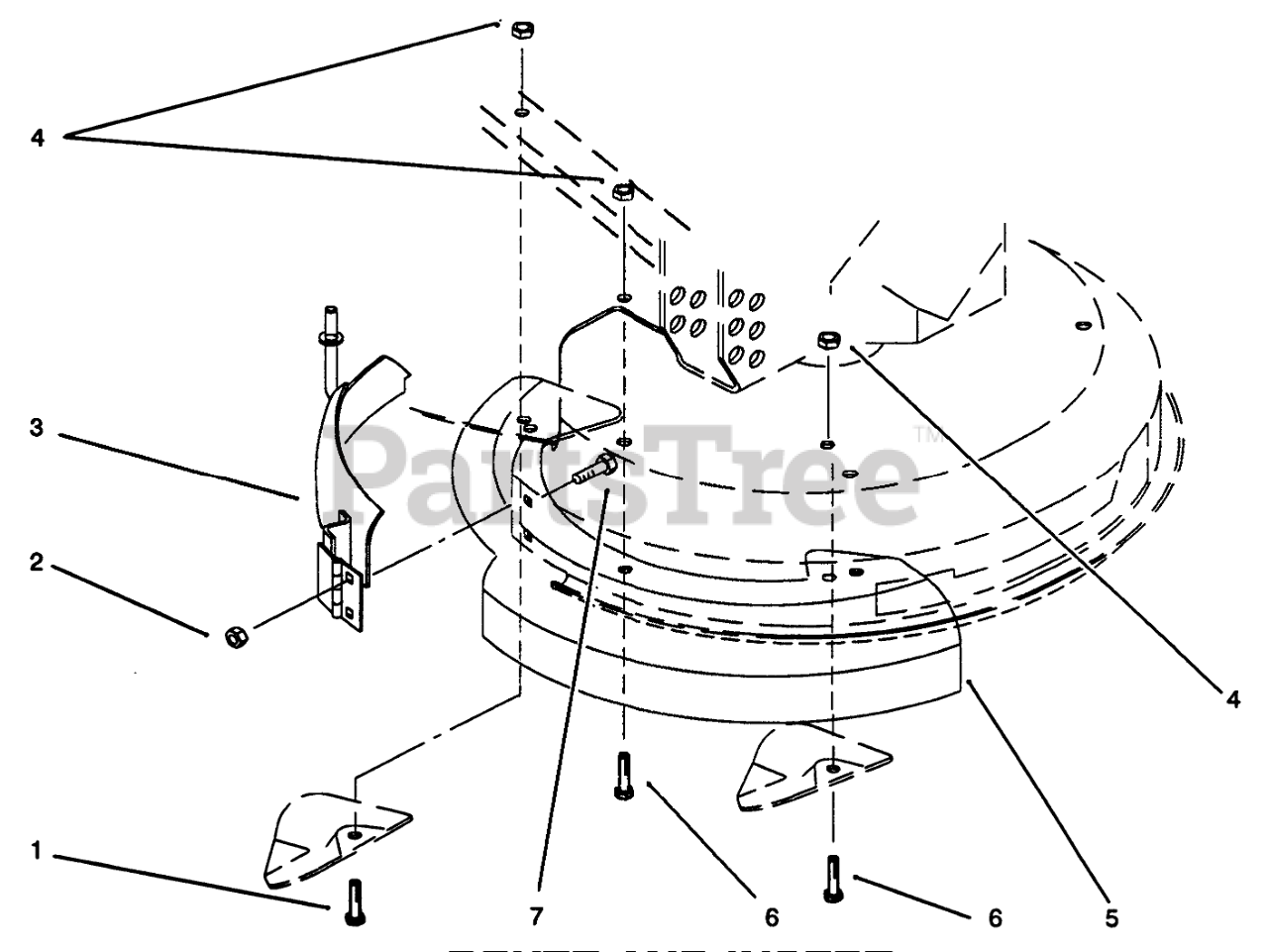

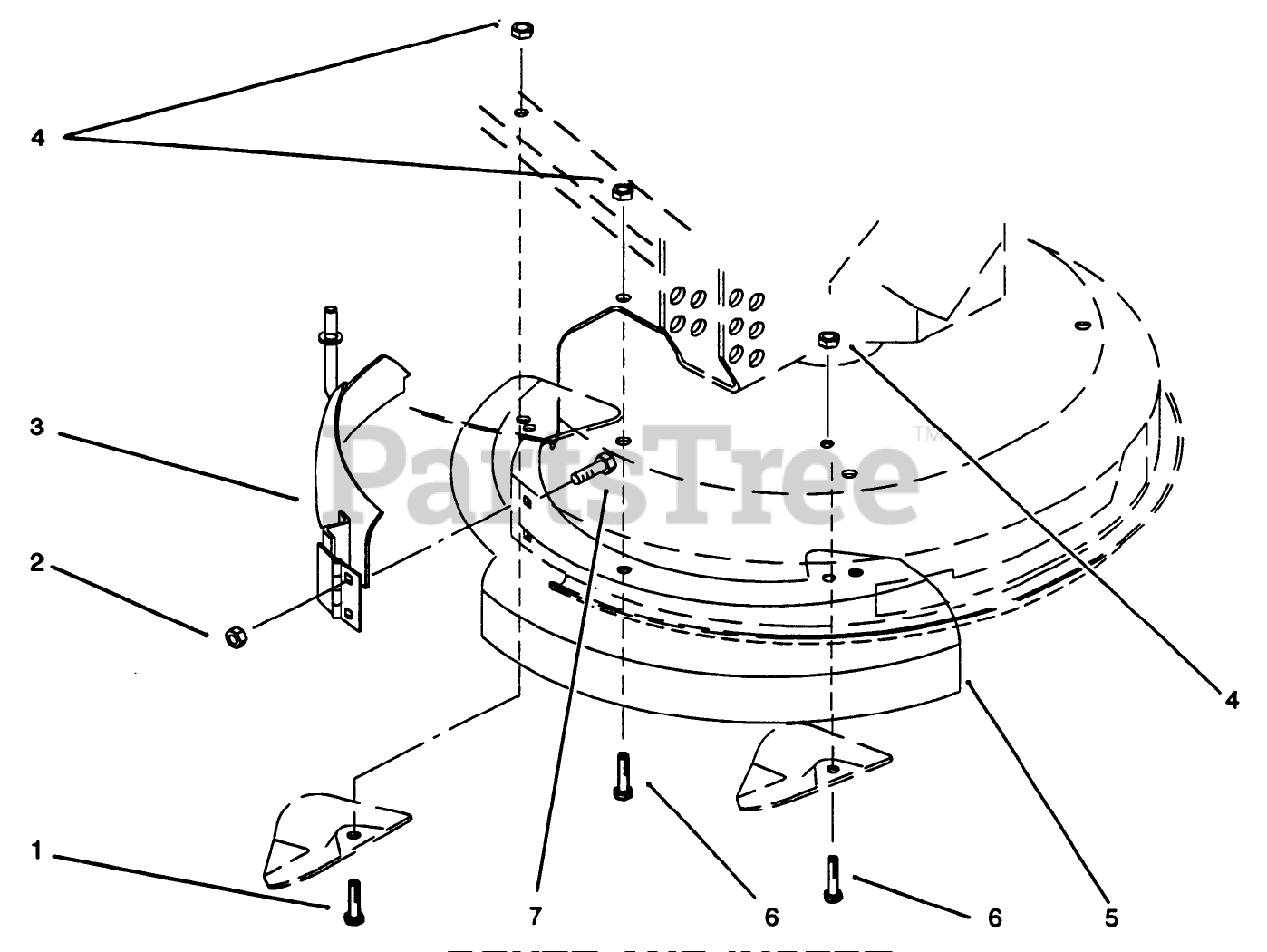

92-2938 - Toro 37" Mower Update Kit COVER AND INSERT Parts Diagram

37" Mower Update Kit

COVER AND INSERT Parts Diagram

  • Title
1

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

3

Toro 92-2932

Cover-Front
(Superseded to 92-2932-01)

$

$

Not available

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 92-2937

Insert-Deck
(Superseded to 92-2937-01)

$

$

Not available

6

Toro 322-52

Screw (Ref.)

$

$

Currently unavailable

7

Toro 3229-22

SCREW-CARRIAGE
(Superseded to 3229-11)

$1.49

$

In Stock, Qty 20+

0
