92-08BF01 (B-81) - Toro Lawn Tractor (1979) FUEL AND EXHAUST SYSTEMS Parts Diagram

Lawn Tractor

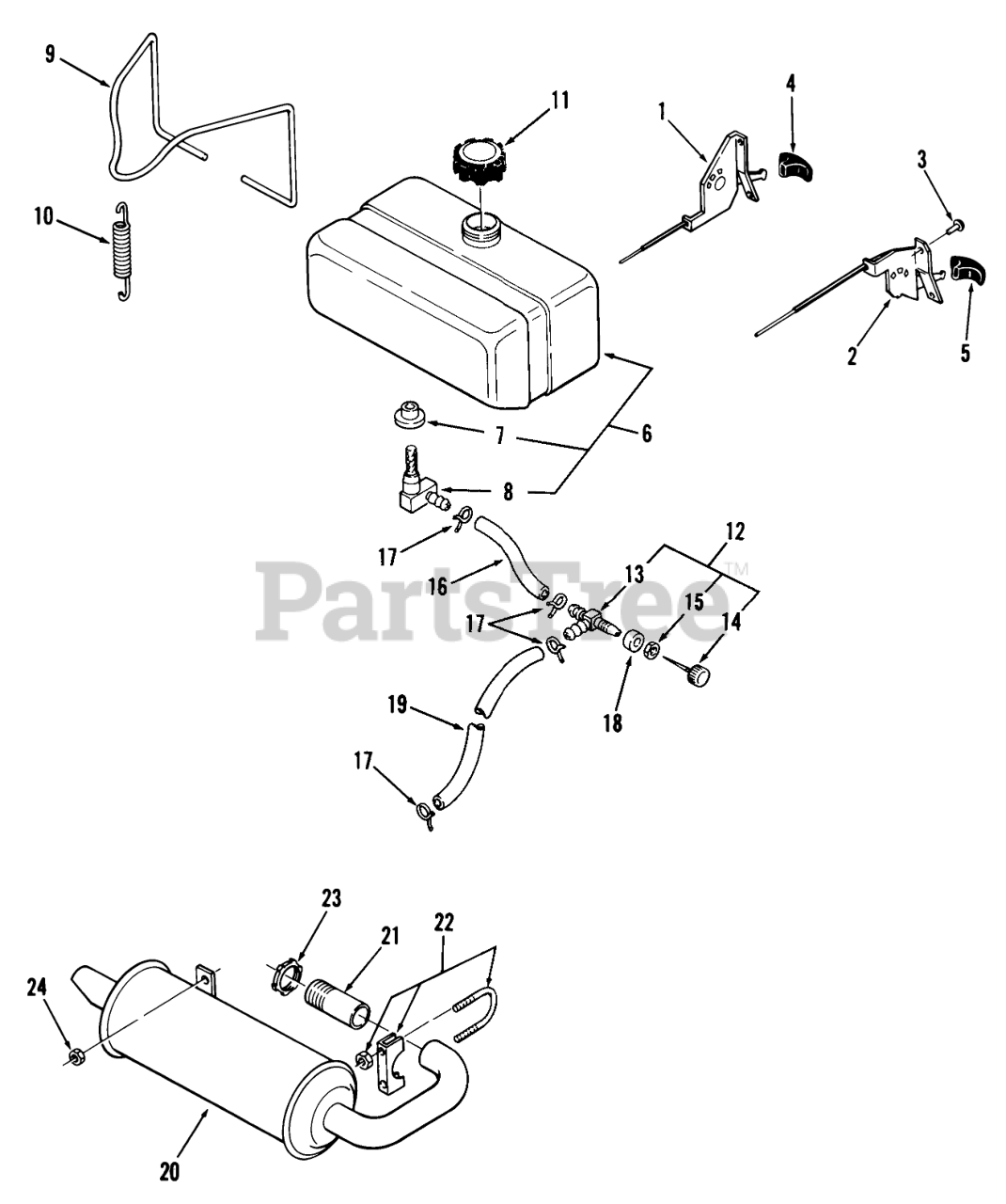

FUEL AND EXHAUST SYSTEMS Parts Diagram

  • Title

1

Toro 103519

Throttle Control

$

$

Not available

2

Toro 106422

CONTROL-CHOKE

$

$

Not available

3

Toro 923795

RIVET-4

$0.99

$

Usually ships in 3-6 days

0

4

Toro 102185

KNOB-THROTTLE

$18.99

$

Usually ships in 3-6 days

0

5

Toro 102186

KNOB-CHOKE

$18.99

$

In Stock, Qty 7

0

6

Toro 104067

ASSY-FUEL TANK

$305.99

$

Usually ships in 3-6 days

0

7

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

8

Toro 104071

FITTING FUEL TANK

$

$

Not available

9

Toro 100147

Hold Down Wire

$

$

Not available

10

Toro 9170

SPRING-EXTENSION

$

$

Not available

11

Toro 108011

CAP-GASOLINE

$61.99

$

In Stock, only 1 left!

0

12

Toro 8023

S/A FUEL VALVE

$

$

Not available

13

Toro 100748

VALVE BODY

$

$

Not available

14

Toro 100749

STEM

$

$

Not available

15

Toro 100750

NUT

$

$

Not available

16

Toro 107927

Fuel Hose 3.8 in. (9.7 cm)
(Superseded to 101338)

$

$

Not available

17

Toro 950154

Clamp

$

$

Not available

18

Toro 5189

SPACER

$

$

Not available

19

Toro 105442

Fuel Hose 18"
(Superseded to 100061)

$

$

Not available

20

Toro 106515

Muffler
(Superseded to 105196)

$

$

Not available

21

Toro 102265

NIPPLE

$

$

Not available

22

Toro 102645

ASSY-MUFFLER CLAMP

$15.99

$

In Stock, only 1 left!

0

23

Toro 1756

Lock Nut

$

$

Not available

24

Toro 960010

Flanged Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0
