92-08BF01 (B-81) - Toro Lawn Tractor (1979) 6-SPEED TRANSMISSION Parts Diagram

Lawn Tractor

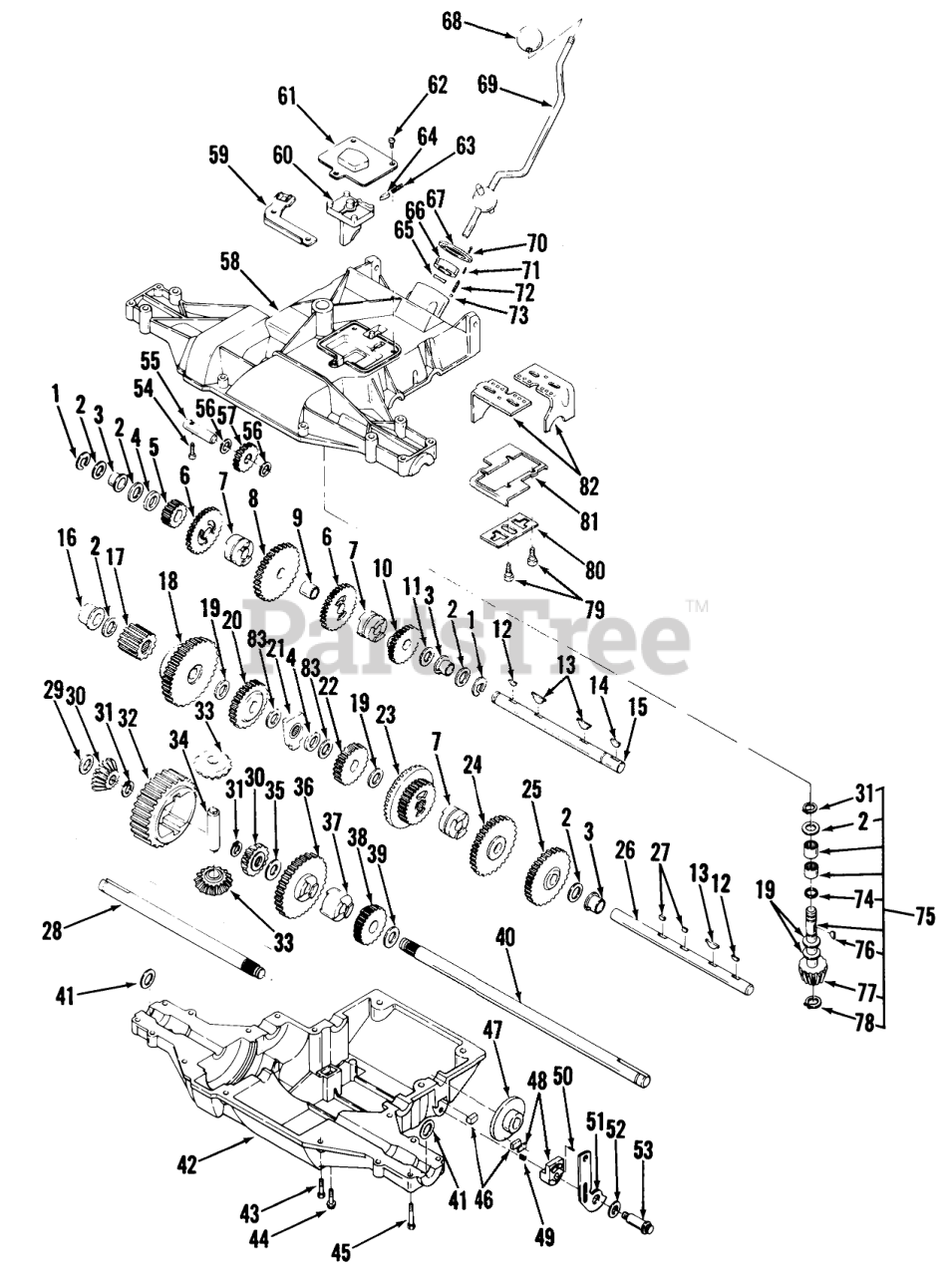

6-SPEED TRANSMISSION Parts Diagram

  • Title

1

Toro 107836

E-Ring

$

$

Not available

2

Toro 107837

WASHER

$

$

Not available

2

Toro 107838

WASHER

$

$

Not available

2

Toro 107839

WASHER

$

$

Not available

2

Toro 107840

WASHER

$

$

Not available

2

Toro 107841

Shim Washer .035

$

$

Not available

2

Toro 107842

WASHER

$

$

Not available

2

Toro 107843

WASHER

$

$

Not available

2

Toro 107844

WASHER

$

$

Not available

3

Toro 107845

Flange Bearing
(Superseded to 2119-458)

$

$

Not available

4

Toro 107846

SPACER

$

$

Not available

5

Toro 107847

Spur Gear 13T

$

$

Not available

6

Toro 107848

Spur Gear 25T
(Superseded to 121375)

$215.99

$

Usually ships in 3-6 days

0

7

Toro 107849

COLLAR-CLUTCH

$

$

Not available

8

Toro 107850

Spur Gear 30T

$

$

Not available

9

Toro 107851

SPACER 87X632X679

$

$

Not available

10

Toro 107852

GEAR-20T SPUR

$

$

Not available

11

Toro 107844

WASHER

$

$

Not available

12

Toro 107854

KEY-WDRF 3 ALLOY

$

$

Not available

13

Toro 107855

KEY-HI PRO SPECIAL

$

$

Not available

14

Toro 107856

KEY-WDRF 61

$

$

Not available

15

Toro 107857

Intermediate Shaft

$

$

Not available

16

Toro 107858

Flange Bearing

$

$

Not available

17

Toro 107859

Gear Assy. 12T
(Superseded to 108672)

$

$

Not available

18

Toro 107860

Spur Gear 37T

$

$

Not available

19

Toro 107839

WASHER

$

$

Not available

20

Toro 107862

Spur Gear 25T

$

$

Not available

21

Toro 107863

Shaft Support Assy.

$

$

Not available

22

Toro 107864

GEAR-SPUR 20T

$

$

Not available

23

Toro 107865

Bevel Gear Assy

$

$

Not available

24

Toro 107866

Spur Gear 33T
(Superseded to 227000)

$

$

Not available

25

Toro 107867

GEAR-SPUR 30T

$

$

Not available

26

Toro 107868

SHAFT-DRIVE

$

$

Not available

27

Toro 107869

WOODRUFF KEY #3

$

$

Not available

28

Toro 107870

Axle LH

$

$

Not available

29

Toro 107871

Shim Washer 1.25 X .755 X .062

$

$

Not available

29

Toro 107872

Shim Washer 1.25 X .755 X .031

$

$

Not available

29

Toro 107873

SHIM WASHER

$

$

Not available

30

Toro 107874

GEAR-MITER SPLINED

$

$

Not available

31

Toro 107875

RETAINING RING

$

$

Not available

32

Toro 107876

GEAR-SPUR 32T

$

$

Not available

33

Toro 107877

Bevel Gear 15T

$

$

Not available

34

Toro 107878

SHAFT-CROSS

$

$

Not available

35

Toro 107872

Shim Washer 1.25 X .755 X .031

$

$

Not available

36

Toro 107853

GEAR-SPUR 35T

$

$

Not available

37

Toro 107879

Gear Lock

$

$

Not available

38

Toro 107880

Spur Gear 22T

$

$

Not available

39

Toro 107871

Shim Washer 1.25 X .755 X .062

$

$

Not available

40

Toro 107881

Axle RH

$

$

Not available

41

Toro 107882

SEAL-FELT

$

$

Not available

42

Toro 107883

Case Half, Lower

$

$

Not available

43

Toro 107884

S.T. Bolt 1/4-20 X 3/4

$

$

Not available

44

Toro 107885

Hex HD. Machine Screw #12-24 X 5/8

$

$

Not available

45

Toro 107886

S.T. Bolt 1/4-20 X 1 5/16

$

$

Not available

46

Toro 107887

Friction Puck
(Superseded to 2119-601)

Note: are the only replacement parts available for 1979.

$

$

Not available

47

Toro 107888

DISC-BRAKE

Note: are the only replacement parts available for 1979.

$116.99

$

Usually ships in 3-6 days

0

48

Toro 107889

ASSY-BRAKE JAW

Note: are the only replacement parts available for 1979.

$

$

Not available

49

Toro 107890

SPRING-COMPRESSION

Note: are the only replacement parts available for 1979.

$

$

Not available

50

Toro 107891

SCREW-SET 8-32

Note: are the only replacement parts available for 1979.

$

$

Not available

51

Toro 107892

Brake Lever

Note: are the only replacement parts available for 1979.

$

$

Not available

52

Toro 107893

Shim Washer .750 X .505 X .015

Note: are the only replacement parts available for 1979.

$

$

Not available

52

Toro 107895

WASHER-PLAIN

Note: are the only replacement parts available for 1979.

$

$

Not available

53

Toro 107896

Shoulder Bolt

Note: are the only replacement parts available for 1979.

$

$

Not available

54

Toro 107897

SCREW 10-24X1 TAPPNG

$

$

Not available

55

Toro 107898

SHAFT-IDLER

$

$

Not available

56

Toro 107899

WASHER-PLAIN 1X.505

$

$

Not available

57

Toro 107900

Idler Gear Assembly

$

$

Not available

58

Toro 107901

HOUSING-UPPER

$

$

Not available

59

Toro 107902

Lever, HI-Lo Shift

$

$

Not available

60

Toro 107903

Shift Fork, HI-Lo

$

$

Not available

61

Toro 107904

Cover Plate

$

$

Not available

62

Toro 107905

S.T. Bolt #8-32 X 1/2

$

$

Not available

63

Toro 107906

Detent Spring

$

$

Not available

64

Toro 107907

Detent Pin

$

$

Not available

65

Toro 107908

WASHER-WAVE

Note: are the only replacement parts available for 1979.

$

$

Not available

66

Toro 107909

INSERT-NYLON

Note: are the only replacement parts available for 1979.

$

$

Not available

67

Toro 107910

Nylon Cover

Note: are the only replacement parts available for 1979.

$

$

Not available

68

Toro 1001

Knob

$

$

Not available

69

Toro 107912

ASSY-SHIFT LEVER

Note: are the only replacement parts available for 1979.

$

$

Not available

70

Toro 107913

SCREW 10-24X1/2

Note: are the only replacement parts available for 1979.

$

$

Not available

71

Toro 107914

Set Screw 1/4-20 X 1/2

Note: are the only replacement parts available for 1979.

$

$

Not available

72

Toro 107915

SPRING-DETENT

$

$

Not available

73

Toro 107916

Detent Ball
(Superseded to 103590)

$

$

Not available

74

Toro 107917

O-Ring

$

$

Not available

75

Toro 107918

Input Shaft Kit

$

$

Not available

76

Toro 107919

Woodruff Key #9

Note: are the only replacement parts available for 1979.

$

$

Not available

77

Toro 107920

Bevel Pinion 16T

$

$

Not available

78

Toro 107921

RING-RETAINING

$

$

Not available

79

Toro 107922

SCREW 1/4-28X3/4

$

$

Not available

80

Toro 107923

PLATE LOCK-OUT

$

$

Not available

81

Toro 107924

PLATE-FORK SUPPORT

$

$

Not available

82

Toro 107925

FORK SHIFTER

$

$

Not available

83

Toro 107843
