9191 A99 - Electrolux/AYP Lawn Tractor (1999) ENGINE Parts Diagram

Lawn Tractor

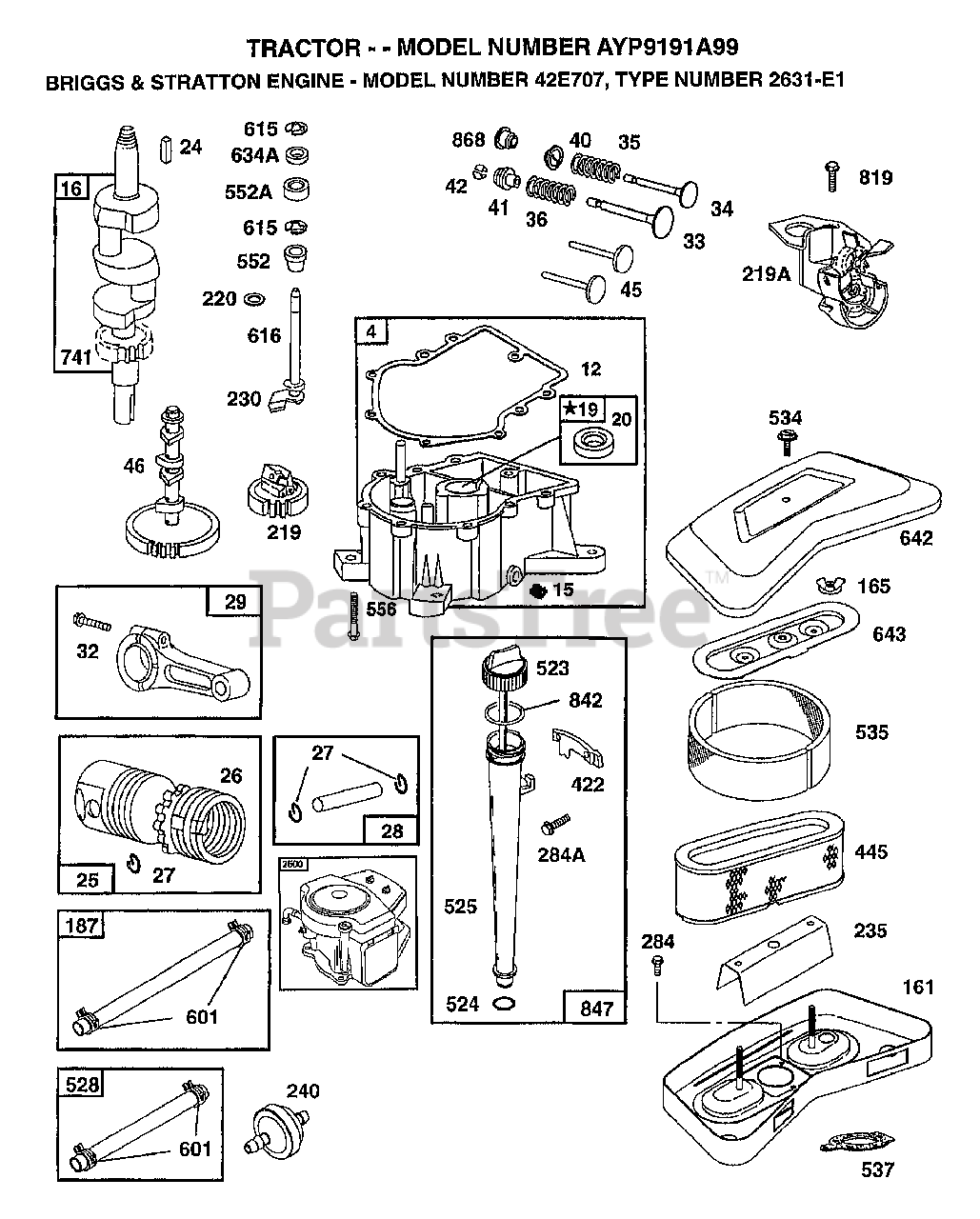

ENGINE Parts Diagram

  • Title

1

Briggs & Stratton 497074

CYLINDER ASSEMBLY

$

$

Not available

2

Briggs & Stratton 399265

P/N CONFLICT - CHECK WITH SUPPLIER
(Superseded to 797673)

$18.99

$

In Stock, Qty 8

0

3

Briggs & Stratton 391086

SEAL, OIL
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 493304

BASE ASSEMBLY, CRANKCASE

$157.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 493457

HEAD, CYLINDER #1

$

$

Not available

5A

Briggs & Stratton 493458

HEAD CYLINDER #2

$

$

Not available

7

Briggs & Stratton 271867

GASKET, CYLINDER HEAD #1
(Superseded to 271867S)

$10.99

$

In Stock, Qty 14

0

7A

Briggs & Stratton 271868

GASKET, CYLINDER HEAD #2
(Superseded to 271868S)

$10.99

$

In Stock, Qty 12

0

8

Briggs & Stratton 495754

BREATHER ASSEMBLY #1

$

$

Not available

8A

Briggs & Stratton 222892

COVER, BREATHER CYLINDER #2
(Superseded to 690415)

$10.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 27803

GASKET, VALVE COVER
(Superseded to 27803S)

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 94382

SCREW, SEMS
(Superseded to 690334)

$3.99

$

Usually ships in 2-12 days

0

10A

Briggs & Stratton 94830

SCREW, SEMS
(Superseded to 690366)

$1.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 280225

TUBE, BREATHER
(Superseded to 691899)

$13.99

$

In Stock, Qty 5

0

12

Briggs & Stratton 273208

GASKET, CRANKCASE, .015" THICK
(Superseded to 692292)

$11.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 271188

GASKET, CRANKCASE COVER,.005"

$11.99

$

In Stock, Qty 5

0

12

Briggs & Stratton 271189

GASKET, CRANKCASE COVER,.009"

$11.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 94565

SCREW, CYLINDER HEAD
(Superseded to 592244)

$3.49

$

In Stock, Qty 20+

0

15

Briggs & Stratton 94239

PLUG, OIL DRAIN
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 394028

CRANKSHAFT
(Superseded to 690636)

$620.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 94196

KEY, TIMING GEAR
(Superseded to 691639)

$4.49

$

In Stock, Qty 5

0

19

Briggs & Stratton 399264

BUSHING

$

$

Not available

20

Briggs & Stratton 291675

SEAL, OIL
(Superseded to 291675S)

$6.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 94724

SCREW
(Superseded to 691104)

$4.49

$

In Stock, only 2 left!

0

23

Briggs & Stratton 491180

FLYWHEEL & RING GEAR ASSY, MAGNETO
(Superseded to 691976)

$471.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

KEY, FLYWHEEL
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 498584

PISTON ASSEMBLY STANDARD SIZE

$102.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 498585

PISTON ASSEMBLY .010" OVERSIZE

$65.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 498586

PISTON ASSEMBLY .020" OVERSIZE

$113.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 498587

PISTON ASSEMBLY .030" OVERSIZE

$65.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 394959

RING SET, PISTON, STANDARD SIZE

$59.99

$

In Stock, only 2 left!

0

26

Briggs & Stratton 394960

RING SET, PISTON,.010" OVERSIZE

$

$

Not available

26

Briggs & Stratton 394961

RING SET, PISTON,.020" OVERSIZE

$83.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 394962

RING SET, PISTON,.030" OVERSIZE

$34.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 263129

LOCK, PISTON PIN
(Superseded to 691299)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 498319

PIN, PISTON, STD SIZE

$17.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 391286

PIN ASSEMBLY, PISTON .005" OVER

$14.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 394306

ROD ASSEMBLY, CONNECTING

$94.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 397158

ROD ASSEMBLY, CONNECTING

$45.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 94671

SCREW, CONNECTING ROD
(Superseded to 691133)

$5.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 390420

VALVE, EXHAUST
(Superseded to 691794)

$

$

Not available

34

Briggs & Stratton 261528

VALVE, INTAKE
(Superseded to 691804)

$

$

Not available

35

Briggs & Stratton 65906

SPRING, INTAKE VALVE
(Superseded to 691605)

$6.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26828

SPRING, EXHAUST VALVE
(Superseded to 691597)

$10.99

$

In Stock, Qty 5

0

40

Briggs & Stratton 221596

RETAINER, INTAKE VALVE
(Superseded to 690656)

$

$

Not available

41

Briggs & Stratton 292260

RETAINER, EXHAUST VALVE
(Superseded to 691939)

$27.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 494553

KEEPER VALVE

$7.99

$

In Stock, only 2 left!

0

45

Briggs & Stratton 261368

TAPPET, VALVE
(Superseded to 691800)

$13.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 214484

GEAR, CAM

$

$

Not available

50

Briggs & Stratton 213290

MANIFOLD, INTAKE
(Superseded to 691709)

$

$

Not available

51

Briggs & Stratton 271412

GASKET, CARBURETOR & INTAKE ELBOE
(Superseded to 692278)

$5.49

$

In Stock, Qty 9

0

51A

Briggs & Stratton 281412

SPACER, CARBURETOR
(Superseded to 691337)

$6.49

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 270884

GASKET, INTAKE MANIFOLD MOUNTING
(Superseded to 692219)

$5.49

$

In Stock, Qty 20+

0

53

Briggs & Stratton 93970

SCREW, SEMS, CARBURETOR MOUNTING
(Superseded to 690321)

$6.99

$

In Stock, only 1 left!

0

54

Briggs & Stratton 93208

SCREW, SEMS INTAKE MANIFOLDING MOUNTING

$8.49

$

In Stock, only 1 left!

0

75

Briggs & Stratton 222511

WASHER SPRING
(Superseded to 691056)

$9.49

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 95039

SCREW HEX
(Superseded to 691134)

$6.49

$

Usually ships in 2-12 days

0

91

Briggs & Stratton 499281

BODY ASSEMBLY, UPPER
(Superseded to 694026)

$

$

Not available

95

Briggs & Stratton 93499

SCREW
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 221939

VALVE, THROTTLE
(Superseded to 691727)

$6.99

$

Usually ships in 2-12 days

0

97

Electrolux/AYP 499172

SHAFT, THROTTLE

$

$

Not available

98

Briggs & Stratton 91920

SCREW, MACHINE, FILLISTER HEAD
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

SPRING, THROTTLE ADJUSTMENT
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 271607

GASKET, CARBURETOR BODY
(Superseded to 273186S)

$6.99

$

In Stock, Qty 9

0

103

Briggs & Stratton 298514

FLOAT, CARBURETOR
(Superseded to 692265)

$11.99

$

In Stock, Qty 8

0

104

Briggs & Stratton 231435

PIN FLOAT HINGE
(Superseded to 691775)

$3.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 394682

VALVE, NEEDLE

$9.99

$

In Stock, only 2 left!

0

107

Briggs & Stratton 499655

BODY ASSY, LOWER

$63.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 225373

VALVE, CHOKE
(Superseded to 691233)

$9.49

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 392673

SHAFT AND LEVER, CHOKE
(Superseded to 691957)

$45.99

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 280474

O-RING
(Superseded to 691319)

$5.49

$

In Stock, only 1 left!

0

117

Briggs & Stratton 232018

JET, NEEDLE VALVE, FIXED
(Superseded to 691253)

$18.99

$

Usually ships in 2-12 days

0

117

Electrolux/AYP 232022

JET, NEEDLE VALVE, FIXED, HIGH ALTITUDE

$

$

Not available

119

Briggs & Stratton 94152

SCREW, SEMS, HEX HEAD
(Superseded to 691090)

$3.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 491539

CARBURETOR OVERHAUL KIT
(Superseded to 694056)

$31.99

$

Usually ships in 2-12 days

0

125

Electrolux/AYP 19306

CARBURETOR

$

$

Not available

127

Briggs & Stratton 223472

PLUG, WELCH
(Superseded to 691739)

$4.49

$

Usually ships in 2-12 days

0

147

Briggs & Stratton 497684

JET, PILOT
(Superseded to 691431)

$13.99

$

Usually ships in 2-12 days

0

161

Briggs & Stratton 496599

BODY, AIR CLEANER
(Superseded to 691401)

$64.99

$

Usually ships in 2-12 days

0

165

Briggs & Stratton 94289

NUT, WING
(Superseded to 691331)

$5.99

$

In Stock, only 3 left!

0

187

Briggs & Stratton 299146

LINE, FUEL, 28"(CUT TO SUIT)
(Superseded to 841589)

$38.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 94627

SCREW, SEMS 3/4"
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

201

Briggs & Stratton 262683

LINK, GOVENOR
(Superseded to 690570)

$17.99

$

Usually ships in 2-12 days

0

202

Briggs & Stratton 262684

LINK. THROTTLE
(Superseded to 690571)

$7.99

$

Usually ships in 2-12 days

0

203

Briggs & Stratton 280997

CRANK, BELL
(Superseded to 493230)

$28.99

$

In Stock, Qty 6

0

205

Briggs & Stratton 93971

SCREW, SHOULDER
(Superseded to 690322)

$

$

Not available

206

Briggs & Stratton 94298

NUT, SQUARE
(Superseded to 690330)

$3.49

$

In Stock, only 2 left!

0

207

Briggs & Stratton 262337

SPRING, COMPRESSION

$

$

Not available

209

Briggs & Stratton 262352

SPRING, GOVERNOR
(Superseded to 691273)

$10.99

$

In Stock, only 2 left!

0

209A

Briggs & Stratton 261563

SPRING, GOVERNOR IDLE
(Superseded to 691807)

$10.99

$

In Stock, only 2 left!

0

219

Briggs & Stratton 394348

GEAR, GOVERNOR
(Superseded to 793338)

$27.99

$

In Stock, Qty 20+

0

219A

Briggs & Stratton 393415

OIL SLINGER ASSEMBLY
(Superseded to 691964)

$

$

Not available

220

Briggs & Stratton 222773

WASHER, THRUST
(Superseded to 690412)

$

$

Not available

222

Briggs & Stratton 491282

PLATE ASSEMBLY, GOVERNOR CONTROL

$

$

Not available

224

Briggs & Stratton 94297

SCREW, PAN HEAD
(Superseded to 690329)

$3.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 491297

LEVER ASSEMBLY, GOVERNOR
(Superseded to 690762)

$8.49

$

Usually ships in 2-12 days

0

229

Briggs & Stratton 62199

WASHER
(Superseded to 692810)

$5.49

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 223882

WASHER, GOVERNOR CRANK, INSIDE
(Superseded to 690442)

$3.49

$

In Stock, Qty 5

0

235

Briggs & Stratton 224995

SHIELD, SPITBACK
(Superseded to 691206)

$9.99

$

In Stock, only 1 left!

0

240

Briggs & Stratton 394358

FILTER, FUEL
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

244

Briggs & Stratton 230318

CONNECTOR, IMPULSE PUMP
(Superseded to 691764)

$14.99

$

In Stock, only 4 left!

0

257

Briggs & Stratton 93897

SCREW, SEMS
(Superseded to 690316)

$3.99

$

Usually ships in 2-12 days

0

284

Briggs & Stratton 94674

SCREW, HEX HEAD
(Superseded to 691100)

$3.99

$

Usually ships in 2-12 days

0

284A

Briggs & Stratton 94882

SCREW, HEX HEAD
(Superseded to 691044)

$3.99

$

In Stock, Qty 6

0

304

Electrolux/AYP 495469

HOUSING, BLOWER, RED

$

$

Not available

305

Briggs & Stratton 94786

SCREW
(Superseded to 692198)

$5.99

$

In Stock, Qty 13

0

306

Briggs & Stratton 222846

SHIELD, CYLINDER
(Superseded to 690414)

$23.99

$

Usually ships in 2-12 days

0

306A

Briggs & Stratton 223734

SHIELD, CYLINDER
(Superseded to 690435)

$10.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94930

SCREW
(Superseded to 691003)

$3.49

$

In Stock, Qty 9

0

308

Briggs & Stratton 224774

COVER, AIR GUIDE
(Superseded to 691196)

$166.99

$

Usually ships in 2-12 days

0

308A

Briggs & Stratton 224775

COVER, AIR GUIDE
(Superseded to 691197)

$75.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 497596

MOTOR, STARTER

$122.99

$

In Stock, only 1 left!

0

310

Briggs & Stratton 94003

BOLT
(Superseded to 690323)

$4.49

$

In Stock, Qty 7

0

311

Briggs & Stratton 497608

BRUSH SET

$27.99

$

In Stock, only 3 left!

0

332

Briggs & Stratton 230674

NUT, HEX
(Superseded to 691059)

$4.49

$

In Stock, only 1 left!

0

333

Briggs & Stratton 394891

ARMATURE GROUP MAGNETRON IGNITION
(Superseded to 590781)

$75.99

$

In Stock, Qty 10

0

334

Briggs & Stratton 94731

SCREW, SEMS
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 802592

PLUG, SPARK
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 494705

WIRE, STOP
(Superseded to 690807)

$

$

Not available

358

Briggs & Stratton 495868

IN GASKET SET

$75.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19203

PULLER, FLYWHEEL

$23.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838

WRENCH SPARK PLUG
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

391

Briggs & Stratton 280197

BODY, PUMP
(Superseded to 691896)

$15.99

$

In Stock, Qty 6

0

392

Briggs & Stratton 261395

SPRING, PUMP
(Superseded to 691801)

$4.99

$

In Stock, Qty 9

0

394

Briggs & Stratton 272638

DIAPHRAGM
(Superseded to 272638S)

$6.99

$

In Stock, only 4 left!

0

414

Briggs & Stratton 220680

WASHER
(Superseded to 690390)

$3.99

$

Usually ships in 2-12 days

0

422

Briggs & Stratton 222875

CLAMP, OIL FILLER
(Superseded to 691176)

$

$

Not available

432

Briggs & Stratton 221377

CAP, SPRING
(Superseded to 690766)

$4.99

$

In Stock, Qty 6

0

434

Briggs & Stratton 223688

COVER, DIAPHRAGM
(Superseded to 690434)

$

$

Not available

435

Briggs & Stratton 93829

SCREW, DIAPHRAGM COVER
(Superseded to 691085)

$4.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 394019

CARTRIDGE AIR CLEANER
(Superseded to 394019S)

$21.99

$

In Stock, Qty 7

0

468

Briggs & Stratton 497908

SCREEN, ROTATING
(Superseded to 691438)

$

$

Not available

474

Briggs & Stratton 393474

STATOR, ALTERNATOR, DUAL CIRCUIT
(Superseded to 592831)

$101.99

$

In Stock, Qty 9

0

482

Briggs & Stratton 93621

SCREW, SEMS
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 497606

DRIVE, STARTER
(Superseded to 696541)

$90.99

$

In Stock, Qty 10

0

523

Briggs & Stratton 494947

CAP AND DIPSTICK
(Superseded to 691385)

$31.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 271157

SEAL, FILLER TUBE
(Superseded to 692532)

$5.99

$

In Stock, only 2 left!

0

525

Briggs & Stratton 495348

TUBE, OIL FILLER
(Superseded to 690823)

$28.99

$

Usually ships in 2-12 days

0

528

Briggs & Stratton 393815

HOSE (CUT TO SUIT)
(Superseded to 791880)

$11.99

$

Usually ships in 2-12 days

0

534

Briggs & Stratton 94823

SCREW ROUND HEAD
(Superseded to 691675)

$13.99

$

In Stock, only 2 left!

0

535

Briggs & Stratton 272490

ELEMENT, FILTER
(Superseded to 272490S)

$5.49

$

In Stock, Qty 19

0

537

Briggs & Stratton 271411

GASKET AIR CLEANER
(Superseded to 690273)

$5.49

$

In Stock, Qty 9

0

544

Briggs & Stratton 497603

ARMATURE, STARTER
(Superseded to 692034)

$82.99

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 262332

LOWER BUSHING, GOVERNOR
(Superseded to 690553)

$7.49

$

In Stock, Qty 9

0

552A

Briggs & Stratton 262331

UPPER BUSHING GOVERNOR
(Superseded to 690552)

$8.49

$

In Stock, Qty 9

0

556

Briggs & Stratton 93585

SCREW, HEX HEAD
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

562

Briggs & Stratton 93853

BOLT, GOVERNOR LEVER
(Superseded to 690311)

$4.49

$

Usually ships in 2-12 days

0

567

Briggs & Stratton 94811

SCREW, HEX HEAD
(Superseded to 690364)

$3.99

$

In Stock, only 2 left!

0

569

Briggs & Stratton 272645

GASKET, CRANKCASE
(Superseded to 692287)

$10.99

$

In Stock, Qty 6

0

572

Briggs & Stratton 224816

BAFFLE, AIR, CYLINDER #2
(Superseded to 690481)

$9.49

$

Usually ships in 2-12 days

0

573

Briggs & Stratton 491304

BACK PLATE ASSEMBLY
(Superseded to 696040)

$51.99

$

Usually ships in 2-12 days

0

592

Briggs & Stratton 92278

NUT, HEX
(Superseded to 691029)

$5.49

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 93053

CLAMP, HOSE, GREEN
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

615

Briggs & Stratton 94296

RETAINER, E-RING
(Superseded to 690328)

$4.49

$

In Stock, Qty 6

0

615A

Briggs & Stratton 263080

RETAINER
(Superseded to 691265)

$5.49

$

In Stock, Qty 7

0

616

Briggs & Stratton 491530

CRANK, GOVERNOR

$

$

Not available

634

Briggs & Stratton 271013

WASHER, THROTTLE SHAFT
(Superseded to 691872)

$7.49

$

Usually ships in 2-12 days

0

634A

Briggs & Stratton 491287

SEAL, GOVERNOR SHAFT
(Superseded to 790574)

$5.99

$

In Stock, Qty 20+

0

635

Briggs & Stratton 66538

ELBOW, SPARK PLUG
(Superseded to 66538S)

$3.99

$

In Stock, Qty 12

0

642

Briggs & Stratton 225008

COVER, AIR CLEANER
(Superseded to 691207)

$78.99

$

In Stock, only 3 left!

0

643

Briggs & Stratton 496700

CARTRIDGE PLATES AIR CLEANER

$

$

Not available

653

Briggs & Stratton 93585

SCREW, HEX HEAD
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

726

Briggs & Stratton 391362

GEAR, RING

$

$

Not available

741

Briggs & Stratton 262989

GEAR, TIMING
(Superseded to 691285)

$

$

Not available

783

Briggs & Stratton 280104

GEAR, STARTER
(Superseded to 695708)

$6.99

$

In Stock, Qty 5

0

801

Briggs & Stratton 394860

CAP, DRIVE
(Superseded to 691967)

$74.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 497607

P/N CONFLICT - CHECK WITH SUPPLIER
(Superseded to 691286)

$26.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 497604

HOUSING, STARTER
(Superseded to 693757)

$25.99

$

Usually ships in 2-12 days

0

819

Briggs & Stratton 94675

SCREW, HEX HEAD
(Superseded to 690353)

$23.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 270920

SEAL, OIL FILLER CAP
(Superseded to 691870)

$4.49

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 495715

DIPSTICK & TUBE ASSY

$34.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880

TERMINAL, IGNITION CABLE
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

858

Briggs & Stratton 270989

DIAPHRAGM, DAMPING
(Superseded to 691871)

$6.49

$

In Stock, only 1 left!

0

859

Briggs & Stratton 271025

GASKET, CARBURETOR
(Superseded to 691873)

$8.49

$

Usually ships in 2-12 days

0

860

Briggs & Stratton 261358

SPRING, DIAPHRAGM
(Superseded to 691799)

$7.49

$

Usually ships in 2-12 days

0

861

Briggs & Stratton 393397

PUMP REPAIR KIT

$

$

Not available

868

Briggs & Stratton 497212

SEAL, VALVE
(Superseded to 692324)

$

$

Not available

869

Briggs & Stratton 261463

SEAT, INTAKE VALVE, STANDARD
(Superseded to 691802)

$17.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 213316

SEAT, EXHAUST VALVE, STANDARD
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 261961

GUIDE, EXHAUST VALVE

$14.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 231218

GUIDE, INTAKE VALVE

$14.99

$

In Stock, Qty 7

0

877

Briggs & Stratton 393456

DIODE & CONNECTOR ASSY

$20.99

$

In Stock, only 1 left!

0

881

Briggs & Stratton 495901

COVER PLATE

$359.99

$

Usually ships in 2-12 days

0

955

Briggs & Stratton 397882

PLUG & SEAL, SOLENOID

$

$

Not available

1005

Briggs & Stratton 281053

FAN, FLYWHEEL
(Superseded to 498157)

$81.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 224901

RETAINER, FAN
(Superseded to 790692)

$

$

Not available

1019

Briggs & Stratton 496726

LABEL KIT

$6.99

$

Usually ships in 2-12 days

0

1090

Electrolux/AYP 97605

RETAINER, BRUSH

$

$

Not available

2500

Electrolux/AYP 42E707-2631

ENGINE

$

$

Not available

Electrolux/AYP 498543

SHORT BLOCK

$

$

Not available
