9191 A89 - Electrolux/AYP Lawn Tractor (1998) ENGINE BRIGGS AND STRATTON Parts Diagram

Lawn Tractor

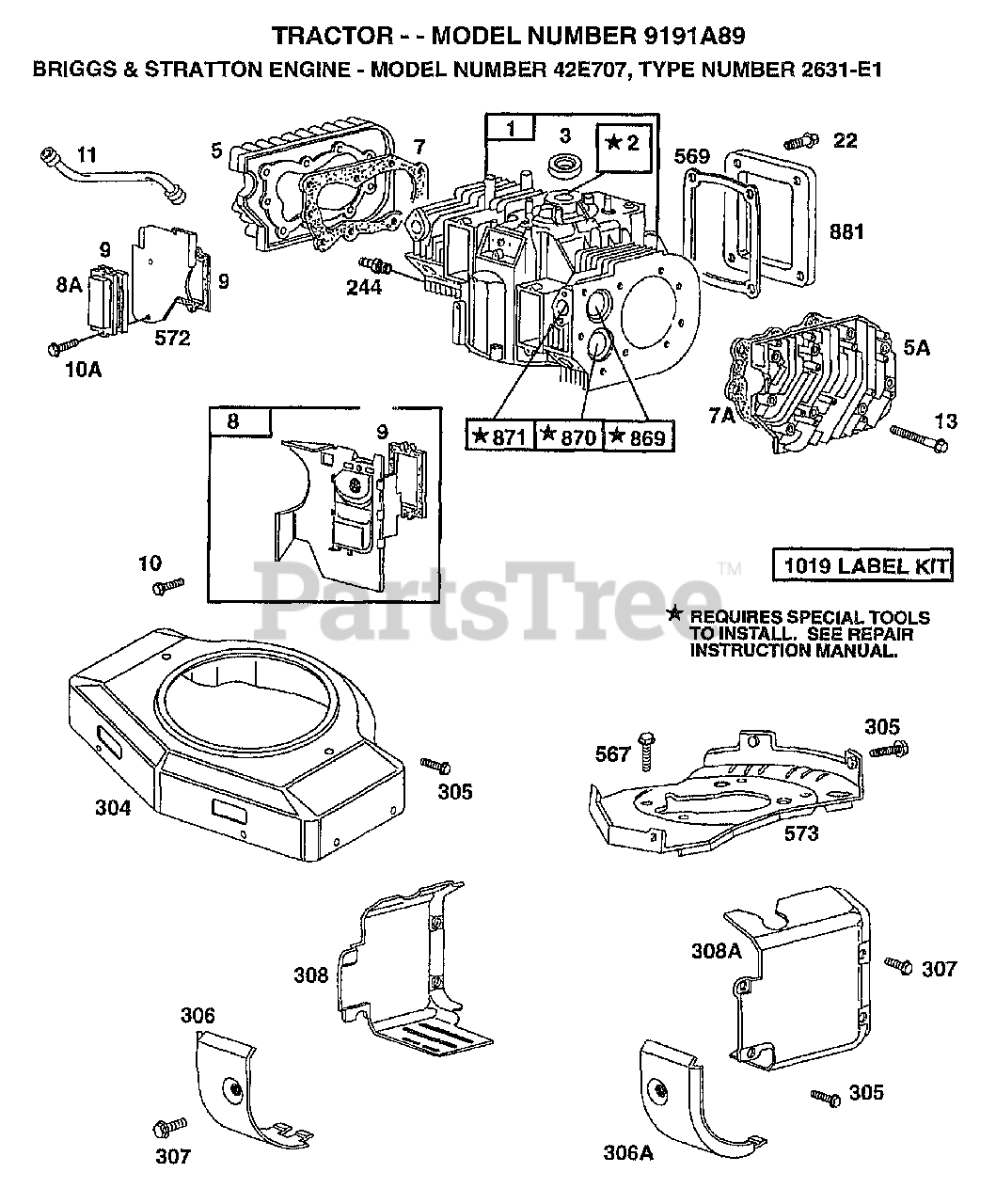

ENGINE BRIGGS AND STRATTON Parts Diagram

  • Title

1

Electrolux/AYP 497074

CYLINDER ASSEMBLY

$

$

Not available

2

Electrolux/AYP 399265

P/N CONFLICT - CHECK WITH SUPPLIER

$

$

Not available

3

Electrolux/AYP 391086

SEAL, OIL
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

4

Electrolux/AYP 493304

BASE ASSEMBLY, CRANKCASE

$

$

Not available

5

Electrolux/AYP 493457

HEAD, CYLINDER #1

$

$

Not available

5A

Electrolux/AYP 493458

HEAD CYLINDER #2

$

$

Not available

7

Electrolux/AYP 271867

GASKET, CYLINDER HEAD #1

$

$

Not available

7A

Electrolux/AYP 271868

GASKET, CYLINDER HEAD #2

$

$

Not available

8

Electrolux/AYP 495754

BREATHER ASSEMBLY #1

$

$

Not available

8A

Electrolux/AYP 222892

COVER, BREATHER CYLINDER #2

$

$

Not available

9

Electrolux/AYP 27803

GASKET, VALVE COVER

$

$

Not available

10

Electrolux/AYP 94382

SCREW, SEMS

$

$

Not available

10A

Electrolux/AYP 94830

SCREW, SEMS

$

$

Not available

11

Electrolux/AYP 280225

TUBE, BREATHER

$

$

Not available

12

Electrolux/AYP 273208

GASKET, CRANKCASE, .015" THICK

$

$

Not available

12

Electrolux/AYP 271188

GASKET, CRANKCASE COVER,.005"

$

$

Not available

12

Electrolux/AYP 271189

GASKET, CRANKCASE COVER,.009"

$

$

Not available

13

Electrolux/AYP 94565

SCREW, CYLINDER HEAD

$

$

Not available

15

Electrolux/AYP 94239

PLUG, OIL DRAIN

$

$

Not available

16

Electrolux/AYP 394028

CRANKSHAFT

$

$

Not available

16

Electrolux/AYP 94196

KEY, TIMING GEAR

$

$

Not available

19

Electrolux/AYP 399264

BUSHING

$

$

Not available

20

Electrolux/AYP 291675

SEAL, OIL

$

$

Not available

22

Electrolux/AYP 94724

SCREW

$

$

Not available

23

Electrolux/AYP 491180

FLYWHEEL & RING GEAR ASSY, MAGNETO

$

$

Not available

24

Electrolux/AYP 222698

KEY, FLYWHEEL

$

$

Not available

25

Electrolux/AYP 498584

PISTON ASSEMBLY STANDARD SIZE

$

$

Not available

25

Electrolux/AYP 498585

PISTON ASSEMBLY .010" OVERSIZE

$

$

Not available

25

Electrolux/AYP 498586

PISTON ASSEMBLY .020" OVERSIZE

$

$

Not available

25

Electrolux/AYP 498587

PISTON ASSEMBLY .030" OVERSIZE

$

$

Not available

26

Electrolux/AYP 394959

RING SET, PISTON, STANDARD SIZE

$

$

Not available

26

Electrolux/AYP 394960

RING SET, PISTON,.010" OVERSIZE

$

$

Not available

26

Electrolux/AYP 394961

RING SET, PISTON,.020" OVERSIZE

$

$

Not available

26

Electrolux/AYP 394962

RING SET, PISTON,.030" OVERSIZE

$

$

Not available

27

Electrolux/AYP 263129

LOCK, PISTON PIN

$

$

Not available

28

Electrolux/AYP 498319

PIN, PISTON, STD SIZE

$

$

Not available

28

Electrolux/AYP 391286

PIN ASSEMBLY, PISTON .005" OVER

$

$

Not available

29

Electrolux/AYP 394306

ROD ASSEMBLY, CONNECTING

$

$

Not available

29

Electrolux/AYP 397158

ROD ASSEMBLY, CONNECTING

$

$

Not available

32

Electrolux/AYP 94671

SCREW, CONNECTING ROD

$

$

Not available

33

Electrolux/AYP 390420

VALVE, EXHAUST

$

$

Not available

34

Electrolux/AYP 261528

VALVE, INTAKE

$

$

Not available

35

Electrolux/AYP 65906

SPRING, INTAKE VALVE

$

$

Not available

36

Electrolux/AYP 26828

SPRING, EXHAUST VALVE

$

$

Not available

40

Electrolux/AYP 221596

RETAINER, INTAKE VALVE

$

$

Not available

41

Electrolux/AYP 292260

RETAINER, EXHAUST VALVE

$

$

Not available

42

Electrolux/AYP 494553

KEEPER VALVE

$

$

Not available

45

Electrolux/AYP 261368

TAPPET, VALVE

$

$

Not available

46

Electrolux/AYP 214484

GEAR, CAM

$

$

Not available

50

Electrolux/AYP 213290

MANIFOLD, INTAKE

$

$

Not available

51

Electrolux/AYP 271412

GASKET, CARBURETOR & INTAKE ELBOE

$

$

Not available

51A

Electrolux/AYP 281412

SPACER, CARBURETOR

$

$

Not available

52

Electrolux/AYP 270884

GASKET, INTAKE MANIFOLD MOUNTING

$

$

Not available

53

Electrolux/AYP 93970

SCREW, SEMS, CARBURETOR MOUNTING

$

$

Not available

54

Electrolux/AYP 93208

SCREW, SEMS INTAKE MANIFOLDING MOUNTING

$

$

Not available

75

Electrolux/AYP 222511

WASHER SPRING

$

$

Not available

78

Electrolux/AYP 95039

SCREW HEX

$

$

Not available

91

Electrolux/AYP 499281

BODY ASSEMBLY, UPPER

$

$

Not available

95

Electrolux/AYP 93499

SCREW

$

$

Not available

96

Electrolux/AYP 221939

VALVE, THROTTLE

$

$

Not available

97

Electrolux/AYP 499172

SHAFT, THROTTLE

$

$

Not available

98

Electrolux/AYP 91920

SCREW, MACHINE, FILLISTER HEAD

$

$

Not available

99

Electrolux/AYP 26157

SPRING, THROTTLE ADJUSTMENT

$

$

Not available

102

Electrolux/AYP 271607

GASKET, CARBURETOR BODY

$

$

Not available

103

Electrolux/AYP 298514

FLOAT, CARBURETOR

$

$

Not available

104

Electrolux/AYP 231435

PIN FLOAT HINGE

$

$

Not available

105

Electrolux/AYP 394682

VALVE, NEEDLE

$

$

Not available

107

Electrolux/AYP 499655

BODY ASSY, LOWER

$

$

Not available

108

Electrolux/AYP 225373

VALVE, CHOKE

$

$

Not available

109

Electrolux/AYP 392673

SHAFT AND LEVER, CHOKE

$

$

Not available

116

Electrolux/AYP 280474

O-RING

$

$

Not available

117

Electrolux/AYP 232018

JET, NEEDLE VALVE, FIXED

$

$

Not available

117

Electrolux/AYP 232022

JET, NEEDLE VALVE, FIXED, HIGH ALTITUDE

$

$

Not available

119

Electrolux/AYP 94152

SCREW, SEMS, HEX HEAD

$

$

Not available

121

Electrolux/AYP 491539

CARBURETOR OVERHAUL KIT

$

$

Not available

125

Electrolux/AYP 19306

CARBURETOR

$

$

Not available

127

Electrolux/AYP 223472

PLUG, WELCH

$

$

Not available

161

Electrolux/AYP 496599

BODY, AIR CLEANER

$

$

Not available

165

Electrolux/AYP 94289

NUT, WING

$

$

Not available

187

Electrolux/AYP 299146

LINE, FUEL, 28"(CUT TO SUIT)

$

$

Not available

188

Electrolux/AYP 94627

SCREW, SEMS 3/4"

$

$

Not available

201

Electrolux/AYP 262683

LINK, GOVENOR

$

$

Not available

202

Electrolux/AYP 262684

LINK. THROTTLE

$

$

Not available

203

Electrolux/AYP 280997

CRANK, BELL

$

$

Not available

205

Electrolux/AYP 93971

SCREW, SHOULDER

$

$

Not available

206

Electrolux/AYP 94298

NUT, SQUARE

$

$

Not available

207

Electrolux/AYP 262337

SPRING, COMPRESSION

$

$

Not available

209

Electrolux/AYP 262352

SPRING, GOVERNOR

$

$

Not available

209A

Electrolux/AYP 261563

SPRING, GOVERNOR IDLE

$

$

Not available

219

Electrolux/AYP 394348

GEAR, GOVERNOR

$

$

Not available

219A

Electrolux/AYP 393415

OIL SLINGER ASSEMBLY

$

$

Not available

220

Electrolux/AYP 222773

WASHER, THRUST

$

$

Not available

222

Electrolux/AYP 491282

PLATE ASSEMBLY, GOVERNOR CONTROL

$

$

Not available

224

Electrolux/AYP 94297

SCREW, PAN HEAD

$

$

Not available

227

Electrolux/AYP 491297

LEVER ASSEMBLY, GOVERNOR

$

$

Not available

229

Electrolux/AYP 62199

WASHER

$

$

Not available

230

Electrolux/AYP 223882

WASHER, GOVERNOR CRANK, INSIDE

$

$

Not available

235

Electrolux/AYP 224995

SHIELD, SPITBACK

$

$

Not available

240

Electrolux/AYP 394358

FILTER, FUEL

$

$

Not available

244

Electrolux/AYP 230318

CONNECTOR, IMPULSE PUMP

$

$

Not available

257

Electrolux/AYP 93897

SCREW, SEMS

$

$

Not available

284

Electrolux/AYP 94674

SCREW, HEX HEAD

$

$

Not available

284A

Electrolux/AYP 94882

SCREW, HEX HEAD

$

$

Not available

304

Electrolux/AYP 495469

HOUSING, BLOWER, RED

$

$

Not available

305

Electrolux/AYP 94786

SCREW

$

$

Not available

306

Electrolux/AYP 222846

SHIELD, CYLINDER

$

$

Not available

306A

Electrolux/AYP 223734

SHIELD, CYLINDER

$

$

Not available

307

Electrolux/AYP 94930

SCREW

$

$

Not available

308

Electrolux/AYP 224774

COVER, AIR GUIDE

$

$

Not available

308A

Electrolux/AYP 224775

COVER, AIR GUIDE

$

$

Not available

309

Electrolux/AYP 497596

MOTOR, STARTER

$

$

Not available

310

Electrolux/AYP 94003

BOLT

$

$

Not available

311

Electrolux/AYP 497608

BRUSH SET

$

$

Not available

332

Electrolux/AYP 230674

NUT, HEX

$

$

Not available

333

Electrolux/AYP 394891

ARMATURE GROUP MAGNETRON IGNITION

$

$

Not available

334

Electrolux/AYP 94731

SCREW, SEMS

$

$

Not available

337

Electrolux/AYP 802592

PLUG, SPARK

$

$

Not available

356

Electrolux/AYP 494705

WIRE, STOP

$

$

Not available

358

Electrolux/AYP 495868

IN GASKET SET

$

$

Not available

363

Electrolux/AYP 19203

PULLER, FLYWHEEL

$

$

Not available

383

Electrolux/AYP 89838

WRENCH SPARK PLUG

$

$

Not available

391

Electrolux/AYP 280197

BODY, PUMP

$

$

Not available

392

Electrolux/AYP 261395

SPRING, PUMP

$

$

Not available

394

Electrolux/AYP 272638

DIAPHRAGM

$

$

Not available

414

Electrolux/AYP 220680

WASHER

$

$

Not available

422

Electrolux/AYP 222875

CLAMP, OIL FILLER

$

$

Not available

432

Electrolux/AYP 221377

CAP, SPRING

$

$

Not available

434

Electrolux/AYP 223688

COVER, DIAPHRAGM

$

$

Not available

435

Electrolux/AYP 93829

SCREW, DIAPHRAGM COVER

$

$

Not available

445

Electrolux/AYP 394019

CARTRIDGE AIR CLEANER

$

$

Not available

468

Electrolux/AYP 497908

SCREEN, ROTATING

$

$

Not available

474

Electrolux/AYP 393474

STATOR, ALTERNATOR, DUAL CIRCUIT

$

$

Not available

482

Electrolux/AYP 93621

SCREW, SEMS

$

$

Not available

510

Electrolux/AYP 497606

DRIVE, STARTER

$

$

Not available

523

Electrolux/AYP 494947

CAP AND DIPSTICK

$

$

Not available

524

Electrolux/AYP 271157

SEAL, FILLER TUBE

$

$

Not available

525

Electrolux/AYP 495348

TUBE, OIL FILLER

$

$

Not available

528

Electrolux/AYP 393815

HOSE (CUT TO SUIT)

$

$

Not available

534

Electrolux/AYP 94823

SCREW ROUND HEAD

$

$

Not available

535

Electrolux/AYP 272490

ELEMENT, FILTER

$

$

Not available

537

Electrolux/AYP 271411

GASKET AIR CLEANER

$

$

Not available

544

Electrolux/AYP 497603

ARMATURE, STARTER

$

$

Not available

552

Electrolux/AYP 262332

LOWER BUSHING, GOVERNOR

$

$

Not available

552A

Electrolux/AYP 262331

UPPER BUSHING GOVERNOR

$

$

Not available

556

Electrolux/AYP 93585

SCREW, HEX HEAD

$

$

Not available

562

Electrolux/AYP 93853

BOLT, GOVERNOR LEVER

$

$

Not available

567

Electrolux/AYP 94811

SCREW, HEX HEAD

$

$

Not available

569

Electrolux/AYP 272645

GASKET, CRANKCASE

$

$

Not available

572

Electrolux/AYP 224816

BAFFLE, AIR, CYLINDER #2

$

$

Not available

573

Electrolux/AYP 491304

BACK PLATE ASSEMBLY

$

$

Not available

592

Electrolux/AYP 92278

NUT, HEX

$

$

Not available

601

Electrolux/AYP 93053

CLAMP, HOSE, GREEN

$

$

Not available

615

Electrolux/AYP 94296

RETAINER, E-RING

$

$

Not available

615A

Electrolux/AYP 263080

RETAINER

$

$

Not available

616

Electrolux/AYP 491530

CRANK, GOVERNOR

$

$

Not available

634

Electrolux/AYP 271013

WASHER, THROTTLE SHAFT

$

$

Not available

634A

Electrolux/AYP 491287

SEAL, GOVERNOR SHAFT

$

$

Not available

635

Electrolux/AYP 66538

ELBOW, SPARK PLUG

$

$

Not available

642

Electrolux/AYP 225008

COVER, AIR CLEANER

$

$

Not available

643

Electrolux/AYP 496700

CARTRIDGE PLATES AIR CLEANER

$

$

Not available

653

Electrolux/AYP 93585

SCREW, HEX HEAD

$

$

Not available

726

Electrolux/AYP 391362

GEAR, RING

$

$

Not available

741

Electrolux/AYP 262989

GEAR, TIMING

$

$

Not available

783

Electrolux/AYP 280104

GEAR, STARTER

$

$

Not available

801

Electrolux/AYP 394860

CAP, DRIVE

$

$

Not available

802

CHECK WITH SUPPLIER

$

$

Not available

803

Electrolux/AYP 497604

HOUSING, STARTER

$

$

Not available

819

Electrolux/AYP 94675

SCREW, HEX HEAD

$

$

Not available

842

Electrolux/AYP 270920

SEAL, OIL FILLER CAP

$

$

Not available

847

Electrolux/AYP 495715

DIPSTICK & TUBE ASSY

$

$

Not available

851

Electrolux/AYP 493880

TERMINAL, IGNITION CABLE

$

$

Not available

858

Electrolux/AYP 270989

DIAPHRAGM, DAMPING

$

$

Not available

859

Electrolux/AYP 271025

GASKET, CARBURETOR

$

$

Not available

860

Electrolux/AYP 261358

SPRING, DIAPHRAGM

$

$

Not available

861

Electrolux/AYP 393397

PUMP REPAIR KIT

$9.99

$

Usually ships in 3-10 days

0

868

Electrolux/AYP 497212

SEAL, VALVE

$

$

Not available

869

Electrolux/AYP 261463

SEAT, INTAKE VALVE, STANDARD

$

$

Not available

870

Electrolux/AYP 213316

SEAT, EXHAUST VALVE, STANDARD

$

$

Not available

871

Electrolux/AYP 261961

GUIDE, EXHAUST VALVE

$

$

Not available

871

Electrolux/AYP 231218

GUIDE, INTAKE VALVE

$

$

Not available

877

Electrolux/AYP 393456

DIODE & CONNECTOR ASSY

$

$

Not available

881

Electrolux/AYP 495901

COVER PLATE

$

$

Not available

955

Electrolux/AYP 397882

PLUG & SEAL, SOLENOID

$

$

Not available

1005

Electrolux/AYP 281053

FAN, FLYWHEEL

$

$

Not available

1006

Electrolux/AYP 224901

RETAINER, FAN

$

$

Not available

1019

Electrolux/AYP 496726

LABEL KIT

$

$

Not available

1090

Electrolux/AYP 97605

RETAINER, BRUSH

$

$

Not available

2500

Electrolux/AYP 42E707-2631

ENGINE

$

$

Not available

Electrolux/AYP 498543

SHORT BLOCK

$

$

Not available
