9187 A99 - Electrolux/AYP Lawn Tractor (1999) BRIGGS AND STRATTON ENGINE Parts Diagram

Lawn Tractor

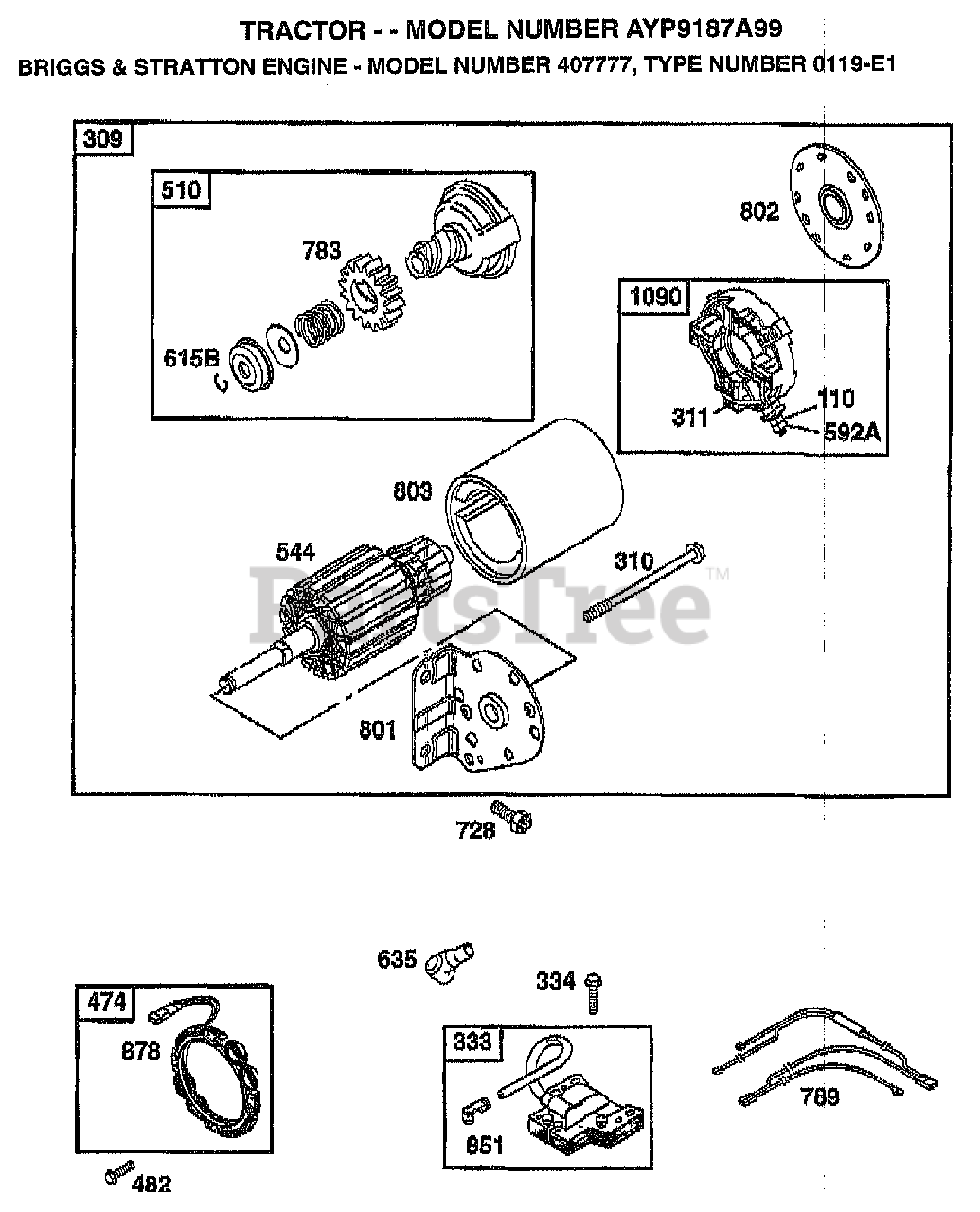

BRIGGS AND STRATTON ENGINE Parts Diagram

  • Title

1

Electrolux/AYP 499584

CYLINDER ASSY

$

$

Not available

2

Briggs & Stratton 499585

BUSHING CYLINDER
(Superseded to 797673)

$18.99

$

In Stock, Qty 8

0

3

Electrolux/AYP 690926

SEAL OIL

$

$

Not available

4

Briggs & Stratton 690069

SUMP ENGINE

$

$

Not available

5

Briggs & Stratton 499587

HEAD CYLINDER NO. 1
(Superseded to 796231)

$235.99

$

In Stock, Qty 20+

0

5A

Briggs & Stratton 499595

HEAD CYLINDER NO. 2
(Superseded to 796232)

$202.99

$

In Stock, Qty 11

0

6

Electrolux/AYP 690097

WASHER FLAT

$

$

Not available

7

Briggs & Stratton 690962

GASKET, CYLINDER HEAD
(Superseded to 693997)

$24.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 499601

BREATHER ASSY
(Superseded to 792185)

$

$

Not available

9

Briggs & Stratton 690937

GASKET BREATHER

$8.49

$

In Stock, only 1 left!

0

10

Briggs & Stratton 691003

SCREW, HEX

$3.49

$

In Stock, Qty 9

0

11

Briggs & Stratton 690942

TUBE, BREATHER
(Superseded to 792184)

$14.99

$

In Stock, only 3 left!

0

12

Briggs & Stratton 690945

GASKET, CRANKCASE
(Superseded to 594195)

$37.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 690360

SCREW, CYLINDER HEAD (3-9/16")
(Superseded to 84001963)

$3.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 690946

PLUG, OIL DRAIN

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 691046

CRANKSHAFT
(Superseded to 595704)

$385.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 690947

SEAL OIL
(Superseded to 795387)

$7.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 690308

SCREW, CRANKCASE COVER
(Superseded to 694966)

$5.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 691054

FLYWHEEL
(Superseded to 84004916)

$185.99

$

Usually ships in 2-12 days

0

24

Electrolux/AYP 690974

KEY, FLYWHEEL

$

$

Not available

25

Briggs & Stratton 499588

PISTON ASSY (STD)
(Superseded to 793647)

$137.99

$

In Stock, only 1 left!

0

25

Electrolux/AYP 499589

PISTON ASSY (.010" O.S.)

$

$

Not available

25

Briggs & Stratton 499590

PISTON ASSY (.020" O.S.)
(Superseded to 793648)

$159.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 499591

PISTON ASSY (.030" O.S.)

$96.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 499604

RING SET, PISTON (STD.)

$69.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 499605

RING SET, PISTON (.010" O.S.)

$43.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 499606

RING SET, PISTON (.020" O.S.)

$61.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 499607

RING SET, PISTON (.030" O.S.)

$53.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 690975

LOCK, PISTON PIN

$3.99

$

In Stock, Qty 10

0

28

Briggs & Stratton 499582

PIN ASSY, PISTON
(Superseded to 690229)

$17.99

$

In Stock, only 1 left!

0

29

Electrolux/AYP 499583

ROD ASSY, CONNECTING

$

$

Not available

32

Briggs & Stratton 690976

SCREW, CONNECTING ROD

$4.49

$

In Stock, Qty 19

0

33

Briggs & Stratton 499596

VALVE, EXHAUST
(Superseded to 697576)

$43.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton 499597

VALVE, INTAKE
(Superseded to 792200)

$25.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 690963

SPRING, VALVE
(Superseded to 694865)

$5.49

$

In Stock, only 2 left!

0

40

Briggs & Stratton 690964

RETAINER, VALVE
(Superseded to 499586)

$7.49

$

In Stock, Qty 20+

0

42

Briggs & Stratton 499586

KEEPER VALVE

$7.49

$

In Stock, Qty 20+

0

45

Briggs & Stratton 690977

TAPPET, VALVE

$7.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 690978

GEAR, CAM

$100.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 690948

MANIFOLD, INTAKE
(Superseded to 595606)

$87.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 690949

GASKET, CARB. MOUNTING

$3.49

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 690950

GASKET, INTAKE MANIFOLD

$2.99

$

In Stock, Qty 16

0

53

Briggs & Stratton 690951

STUD, CARB. MOUNTING

$7.49

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 691055

SCREEN, ROTATING
(Superseded to 494439)

$53.99

$

In Stock, Qty 10

0

75

Briggs & Stratton 691056

WASHER, SPRING

$9.49

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 691057

SCREW, TORX
(Superseded to 698425)

$3.49

$

In Stock, Qty 20+

0

87

Briggs & Stratton 690657

SEAL, GOVERNOR SHAFT
(Superseded to 790574)

$5.99

$

In Stock, Qty 20+

0

89

Briggs & Stratton 690238

PLUG, OIL

$3.49

$

In Stock, only 1 left!

0

95

Briggs & Stratton 690718

SCREW, SLOTTED

$5.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 499802

SCREW, IDLE SPEED

$8.99

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 690234

GASKET, PLATE

$12.99

$

In Stock, Qty 19

0

104

Briggs & Stratton 690984

PIN, FLOAT HINGE
(Superseded to 694918)

$7.49

$

In Stock, only 2 left!

0

105

Briggs & Stratton 690985

VALVE, NEEDLE
(Superseded to 797410)

$15.99

$

In Stock, Qty 20+

0

108

Briggs & Stratton 690986

VALVE, CHOKE

$9.49

$

Usually ships in 2-12 days

0

110

Briggs & Stratton 691261

WASHER

$3.99

$

In Stock, only 3 left!

0

116

Briggs & Stratton 690987

O-RING, SOLENOID RETAINER

$9.49

$

In Stock, only 2 left!

0

116A

Briggs & Stratton 690988

O-RING, FUEL TRANSFER TUBE

$7.99

$

In Stock, Qty 20+

0

116B

Briggs & Stratton 690589

SEAL, O-RING (OIL PUMP COVER)

$8.99

$

In Stock, Qty 20+

0

116C

Briggs & Stratton 691031

SEAL, O-RING (DIPSTICK)

$5.49

$

In Stock, Qty 20+

0

116D

Briggs & Stratton 691032

SEAL, O-RING (OIL FILTER TUBE)

$5.99

$

In Stock, only 1 left!

0

117

Briggs & Stratton 690232

JET, MAIN (STANDARD)

$24.99

$

In Stock, only 2 left!

0

119

Briggs & Stratton 690990

SCREW, PHILLIPS

$3.99

$

Usually ships in 2-12 days

0

119A

Briggs & Stratton 690991

SCREW, PHILLIPS

$3.99

$

Usually ships in 2-12 days

0

119B

Briggs & Stratton 690992

SCREW, PHILLIPS

$4.99

$

Usually ships in 2-12 days

0

119C

Briggs & Stratton 690720

SCREW, PHILLIPS

$3.49

$

In Stock, only 2 left!

0

121

Briggs & Stratton 499811

CARBURETOR OVERHAUL KIT
(Superseded to 797890)

$95.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 690952

SPACER, CARBURETOR

$10.99

$

In Stock, only 1 left!

0

125

Briggs & Stratton 499804

CARBURETOR
(Superseded to 791230)

$205.99

$

In Stock, only 1 left!

0

130

Briggs & Stratton 690993

VALVE, THROTTLE

$8.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 499802

SCREW, IDLE SPEED

$8.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 499806

FLOAT, CARBURETOR
(Superseded to 699724)

$31.99

$

In Stock, only 1 left!

0

135

Briggs & Stratton 499803

TUBE, FUEL TRANSFER

$15.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 690994

GASKET, FLOAT BOWL

$6.99

$

In Stock, Qty 20+

0

141

Briggs & Stratton 499807

SHAFT CHOKE

$47.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 499808

NOZZLE, CARBURETOR

$39.99

$

Usually ships in 2-12 days

0

146

Briggs & Stratton 94388

TIMING GEAR KEY
(Superseded to 690979)

$3.49

$

In Stock, Qty 8

0

150

Electrolux/AYP 281767

GASKET, NOZZLE

$

$

Not available

160

Briggs & Stratton 690996

RETAINER, SOLENOID

$29.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 691001

GASKET, AIR CLEANER

$3.49

$

In Stock, Qty 5

0

176

Briggs & Stratton 691033

SCREW, T-30
(Superseded to 790832)

$4.49

$

In Stock, only 2 left!

0

187

Briggs & Stratton 691050

LINE, FUEL
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 691049

LINE, FUEL
(Superseded to 791744)

$14.99

$

In Stock, only 2 left!

0

188

Briggs & Stratton 691058

SCREW, HEX

$5.99

$

In Stock, Qty 11

0

190

Briggs & Stratton 690953

SCREW, TORX HEX

$5.99

$

Usually ships in 2-12 days

0

192

Briggs & Stratton 690083

ADJUSTER, ROCKER ARM

$11.99

$

In Stock, only 1 left!

0

195

Briggs & Stratton 690954

NIPPLE

$7.99

$

In Stock, Qty 5

0

209

Briggs & Stratton 690018

SPRING, GOVERNOR

$22.99

$

Usually ships in 2-12 days

0

211

Briggs & Stratton 690019

SPRING, GOVERNED IDLE

$59.99

$

In Stock, only 1 left!

0

212

Briggs & Stratton 691020

LINK, THROTTLE

$9.49

$

Usually ships in 2-12 days

0

213

Briggs & Stratton 691021

BRACKET, CHOKE CONTROL

$10.99

$

In Stock, only 3 left!

0

216

Briggs & Stratton 691022

LINK, CHOKE

$8.49

$

In Stock, only 1 left!

0

219

Briggs & Stratton 394348

GEAR, GOVERNOR
(Superseded to 793338)

$27.99

$

In Stock, Qty 20+

0

220

Briggs & Stratton 690412

WASHER, THRUST

$

$

Not available

222

Briggs & Stratton 691023

PLATE, GOVERNOR CONTROL
(Superseded to 592661)

$61.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 691048

LEVER ASSY, GOVERNOR
(Superseded to 798856)

$23.99

$

In Stock, Qty 9

0

240

Briggs & Stratton 691035

FILTER, FUEL
(Superseded to 84001895)

$7.99

$

In Stock, Qty 20+

0

252

Briggs & Stratton 690956

ELEMENT, BREATHER
(Superseded to 794389)

$7.99

$

In Stock, only 1 left!

0

256

Briggs & Stratton 690957

RETAINER, ELEMENT

$6.99

$

In Stock, only 1 left!

0

258

Briggs & Stratton 691003

SCREW, HEX

$3.49

$

In Stock, Qty 9

0

265

Briggs & Stratton 691024

CLAMP, CASING

$3.99

$

In Stock, Qty 7

0

277

Briggs & Stratton 691029

NUT, HEX

$5.49

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 691004

HOUSING, BLOWER

$201.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 691005

SCREW, HEX
(Superseded to 594618)

$3.99

$

In Stock, Qty 20+

0

309

Briggs & Stratton 691262

MOTOR, STARTER
(Superseded to 795121)

$143.99

$

In Stock, Qty 20+

0

310

Briggs & Stratton 691263

SCREW, HEX

$

$

Not available

311

Electrolux/AYP 691264

BRUSH, SET

$

$

Not available

332

Electrolux/AYP 690059

NUT, FLYWHEEL

$

$

Not available

333

Briggs & Stratton 691060

ARMATURE, MAGNETO
(Superseded to 592846)

$56.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW, ARMATURE MOUNTING

$3.49

$

In Stock, Qty 20+

0

337

Electrolux/AYP 690965

SPARK PLUG

$

$

Not available

351

Briggs & Stratton 691044

SCREW, HEX

$3.99

$

In Stock, only 4 left!

0

355

Briggs & Stratton 690997

WASHER, SEAL

$7.99

$

In Stock, Qty 6

0

358

Briggs & Stratton 499889

GASKET SET
(Superseded to 694012)

$113.99

$

Usually ships in 2-12 days

0

363

Electrolux/AYP 691062

FLYWHEEL, PULLER

$

$

Not available

383

Briggs & Stratton 690966

WRENCH, SPARK PLUG
(Superseded to 19576S)

$5.99

$

In Stock, only 1 left!

0

387

Briggs & Stratton 691034

PUMP, FUEL
(Superseded to 808656)

$27.99

$

In Stock, Qty 20+

0

445

Electrolux/AYP 691007

CARTRIDGE, AIR CLEANER

$

$

Not available

467

Briggs & Stratton 691008

NUT, AIR CLEANER

$13.99

$

In Stock, only 2 left!

0

474

Briggs & Stratton 691063

ALTERNATOR
(Superseded to 592831)

$101.99

$

In Stock, Qty 8

0

482

Briggs & Stratton 691183

SCREW, HEX

$3.49

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 497606

DRIVE, STARTER
(Superseded to 696541)

$90.99

$

In Stock, Qty 9

0

523

Briggs & Stratton 691036

DIPSTICK, OIL
(Superseded to 594528)

$18.99

$

In Stock, only 1 left!

0

525

Briggs & Stratton 691037

TUBE, OIL FILL
(Superseded to 597129)

$21.99

$

In Stock, only 1 left!

0

544

Electrolux/AYP PARTSIMAGE

REFER TO PARTS IMAGE

$

$

Not available

552

Briggs & Stratton 690552

BUSHING, GOVERNOR CRANK

$8.49

$

In Stock, Qty 9

0

552A

Briggs & Stratton 690553

BUSHING, GOVERNOR CRANK

$7.49

$

In Stock, Qty 9

0

556

Briggs & Stratton 690967

SCREW, HEX
(Superseded to 697890)

$3.49

$

In Stock, Qty 7

0

562

Briggs & Stratton 690311

BOLT, CARRIAGE

$4.49

$

Usually ships in 2-12 days

0

573

Briggs & Stratton 691009

PLATE, BLACK
(Superseded to 594902)

$59.99

$

Usually ships in 2-12 days

0

592

Briggs & Stratton 690958

NUT, HEX

$3.49

$

In Stock, only 3 left!

0

592A

Briggs & Stratton 691029

NUT, HEX

$5.49

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 691038

CLAMP, FUEL LINE

$3.99

$

In Stock, Qty 17

0

615

Briggs & Stratton 690328

RETAINER, GOVERNOR

$4.49

$

In Stock, Qty 6

0

615A

Briggs & Stratton 690317

RETAINER, GOVERNOR
(Superseded to 698290)

$4.49

$

In Stock, Qty 9

0

615B

Briggs & Stratton 691265

RETAINER

$5.49

$

In Stock, Qty 7

0

646

Briggs & Stratton 691045

CRANK, GOVERNOR

$19.99

$

In Stock, only 1 left!

0

633

Briggs & Stratton 690998

SEAL, CHOKE SHAFT

$7.99

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 690442

WASHER, FLAT

$3.49

$

In Stock, Qty 5

0

635

Electrolux/AYP 691210

BOOT, SPARK PLUG

$

$

Not available

668

Briggs & Stratton 691215

SPACER

$7.49

$

In Stock, only 1 left!

0

703

Electrolux/AYP 690010

CLIP, HOSE

$

$

Not available

718

Briggs & Stratton 690959

DOWEL, SLEEVE

$6.99

$

In Stock, only 1 left!

0

726

Briggs & Stratton 499612

GEAR, RING

$71.99

$

In Stock, Qty 20+

0

728

Briggs & Stratton 690372

SCREW, TORX
(Superseded to 791680)

$3.99

$

In Stock, Qty 6

0

741

Briggs & Stratton 690980

GEAR, TIMING

$14.99

$

In Stock, only 2 left!

0

783

Electrolux/AYP 691280

GEAR, STARTER

$

$

Not available

788

Briggs & Stratton 691039

BRACKET, PUMP

$24.99

$

In Stock, only 1 left!

0

789

Briggs & Stratton 691220

HARNESS, WIRING

$43.99

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 691283

CAP, DRIVE

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 691286

CAP, END

$26.99

$

Usually ships in 2-12 days

0

803

Electrolux/AYP PARTSIMAGE

REFER TO PARTS IMAGE

$

$

Not available

823

Briggs & Stratton 690960

SCREW, HEX
(Superseded to 691108)

$3.49

$

In Stock, Qty 20+

0

847

Briggs & Stratton 499602

DIPSTICK/TUBE ASSY
(Superseded to 594609)

$47.99

$

In Stock, only 2 left!

0

851

Electrolux/AYP 691234

TERMINAL, IGNITION CABLE

$

$

Not available

855

Briggs & Stratton 691011

ADAPTER, AIR

$45.99

$

Usually ships in 2-12 days

0

865

Briggs & Stratton 691012

COVER, AIR GUIDE
(Superseded to 796852)

$37.99

$

Usually ships in 2-12 days

0

865A

Briggs & Stratton 691013

COVER, AIR GUIDE
(Superseded to 591666)

$47.99

$

Usually ships in 2-12 days

0

865B

Briggs & Stratton 691015

COVER, AIR GUIDE

$27.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 690968

SEAL, VALVE

$10.99

$

In Stock, Qty 20+

0

871

Electrolux/AYP 690969

BUSHING, GUIDE

$

$

Not available

878

Briggs & Stratton 691237

WIRE, ALTERNATOR
(Superseded to 398661)

$34.99

$

Usually ships in 2-12 days

0

881

Briggs & Stratton 690999

PLATE, COVER
(Superseded to 795912)

$14.99

$

In Stock, only 2 left!

0

883

Briggs & Stratton 690970

GASKET, EXHAUST

$4.99

$

In Stock, Qty 20+

0

918

Briggs & Stratton 691040

HOSE, VACUUM
(Superseded to 694000)

$4.99

$

In Stock, Qty 20+

0

947

Briggs & Stratton 499809

SOLENOID, FUEL
(Superseded to 791230)

$205.99

$

In Stock, only 1 left!

0

965

Briggs & Stratton 499613

COVER, OIL PUMP

$13.99

$

In Stock, Qty 10

0

967

Electrolux/AYP 691016

FILTER, PRE-CLEANER

$

$

Not available

968

Briggs & Stratton 499788

COVER, AIR CLEANER
(Superseded to 790692)

$

$

Not available

975

Briggs & Stratton 499810

BOWL, FLOAT

$29.99

$

Usually ships in 2-12 days

0

877

Briggs & Stratton 499812

GASKET SET, CARBURETOR
(Superseded to 797890)

$95.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 691000

SEAL, THROTTLE SHAFT

$6.99

$

Usually ships in 2-12 days

0

1005

Briggs & Stratton 691243

FAN, FLYWHEEL
(Superseded to 790692)

$

$

Not available

1006

Briggs & Stratton 691247

RETAINER, FAN
(Superseded to 790692)

$

$

Not available

1017

Briggs & Stratton 690770

SCREEN, OIL PUMP

$

$

Not available

1019

Briggs & Stratton 690103

LABEL KIT
(Superseded to 790094)

$25.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 690971

GASKET, ROCKER COVER

$7.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 499599

COVER, ROCKER (CYL. NO.1)

$

$

Not available

1023A

Briggs & Stratton 499600

COVER, ROCKER (CYL. NO.2)

$15.99

$

In Stock, only 1 left!

0

1024

Briggs & Stratton 499054

PUMP, OIL
(Superseded to 794644)

$35.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 690981

ROD, PUSH (STEEL)
(Superseded to 597785)

$7.99

$

In Stock, Qty 20+

0

1026A

Briggs & Stratton 690982

ROD, PUSH (ALUMINUM)

$7.99

$

In Stock, Qty 20+

0

1027

Electrolux/AYP 690041

FILTER, OIL

$

$

Not available

1029

Briggs & Stratton 690972

ARM, ROCKER

$12.99

$

In Stock, Qty 13

0

1033

Briggs & Stratton 499890

VALVE OVERHAUL KIT
(Superseded to 694013)

$69.99

$

In Stock, only 1 left!

0

1035

Briggs & Stratton 691042

SHAFT, OIL PUMP
(Superseded to 794644)

$35.99

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 499783

LABEL KIT, EMISSION

$4.49

$

Usually ships in 2-12 days

0

1058

Electrolux/AYP 273694

OWNER'S MANUAL

$

$

Not available

1090

Briggs & Stratton 691293

RETAINER, BRUSH

$29.99

$

In Stock, Qty 6

0

1100

Briggs & Stratton 690973

PIVOT, ROCKER ARM
(Superseded to 791959)

$6.99

$

In Stock, only 2 left!

0

2500

Electrolux/AYP 407777-0027

ENGINE

$

$

Not available
