918026 - Ariens Ikon Onyx 52" Zero-Turn Mower, 23hp Kawasaki FR (SN: 035000 & Above) Rear Tires and Transaxles Parts Diagram

Ikon Onyx 52" Zero-Turn Mower, 23hp Kawasaki FR

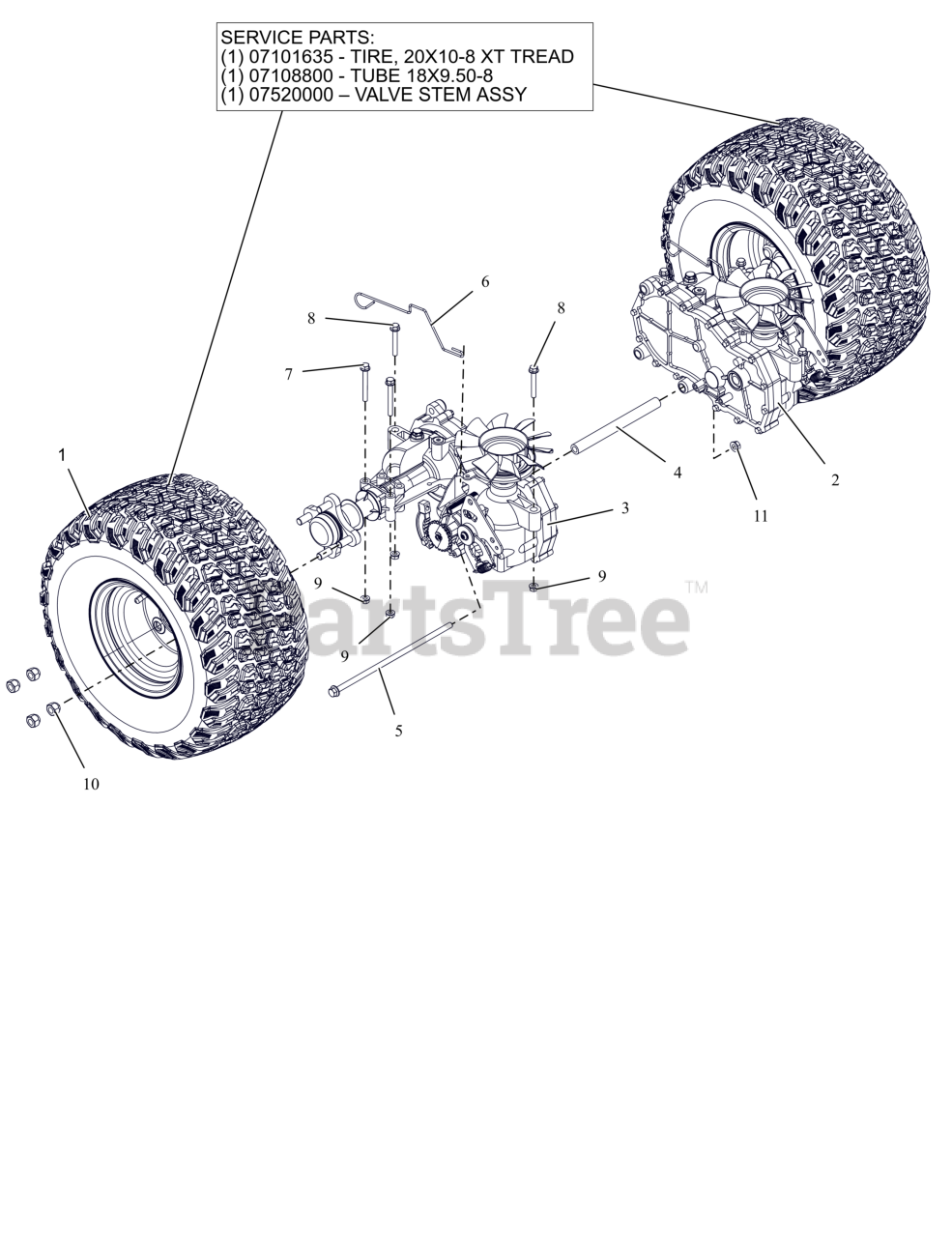

Rear Tires and Transaxles Parts Diagram

  • Title

1

Ariens 07101634

ASM, TIRE /WHL 20X10-8 XT TREAD

$

$

Currently unavailable

1

Ariens 07101635

TIRE, 20X10-8 XT TREAD

Note: Component Service Part

$

$

Currently unavailable

1

Ariens 07108800

TIRE TUBE 18/6.50/8.50/9.50-8, 20/8.00/10.00-8 4 PLY TR13 STRAIGHT VALVE

Note: Component Service Part

$34.99

$

Usually ships in 4-12 days

0

1

Ariens 07520000

VALVE STEM ASS'Y

Note: Component Service Part

$2.49

$

In Stock, only 4 left!

0

2

Ariens 09499900

TRANSAXLE- EZT - LH

$775.99

$

Usually ships in 4-12 days

0

3

Ariens 09499800

TRANSAXLE- EZT-RH

$775.99

$

Usually ships in 4-12 days

0

4

Ariens 05162451

TUBE, TRANSAXLE BRACE 8.18LG

$21.99

$

In Stock, only 2 left!

0

5

Ariens 05901902

BLT,HEX-FLG .38-16X11.5 G5 ZCC

$11.99

$

In Stock, only 2 left!

0

6

Ariens 09661600

WIRE- DUMP VALVE LEVER

$9.49

$

Usually ships in 4-12 days

0

7

Ariens 05901911

BLT,HEX-FLG .31-18X2.75 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 05901910

BLT,HEX-FLG .31-18X2.25 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

9

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06500926

NUT, WHEEL .50-20 ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0
