918014 (ZT XL 52) - Gravely 52" Zero-Turn Mower, 25hp Kohler Pro (SN: 000101 - 004999) Fuel System - Kohler Parts Diagram

52" Zero-Turn Mower, 25hp Kohler Pro

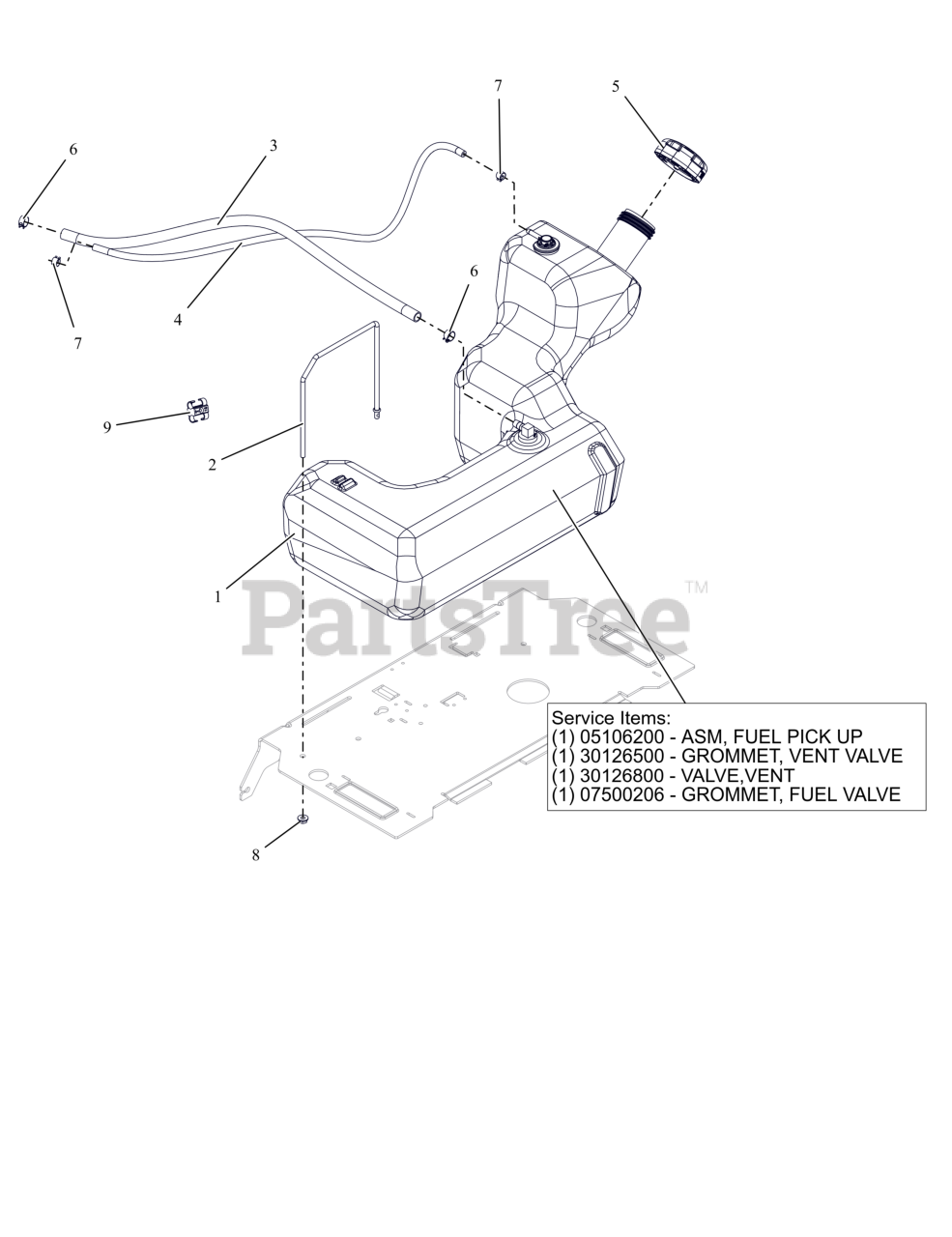

Fuel System - Kohler Parts Diagram

  • Title

1

Gravely 09670900

ASM, FUEL TANK - IKON 23

$219.99

$

In Stock, only 1 left!

0

1

Gravely 05106200

ASM, IKON FUEL PICK-UP

Note: Service Part Assembly

$29.99

$

Usually ships in 4-12 days

0

1

Gravely 30126500

GROMMET, VENT VALVE

Note: Service Part Component

$

$

Not available

1

Gravely 30126800

VALVE, VENT

Note: Service Part Component

$

$

Not available

1

Gravely 07500206

BSHG-FLG .375X1.062X.625 NITR

Note: Service Part Component

$2.49

$

In Stock, Qty 20+

0

2

Gravely 09671200

STRAP, TANK HOLD DOWN

$18.99

$

Usually ships in 4-12 days

0

3

Gravely 03278100

1 INCH OF HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

4

Gravely 04745900

HOSE, .188 30R7 BULK

$

$

Not available

5

Gravely 09190200

CAP-FUEL- 2.25 RATCHET INLET V

$18.99

$

In Stock, Qty 20+

0

6

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

7

Gravely 04097700

CLAMP-HOSE, SPRING .188

$

$

Not available

8

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

9

Gravely 07001712

CLIP, T, .38-.50

$

$

Not available
