918012 (ZT XL 42) - Gravely 42" Zero-Turn Mower, 21.5hp Kawasaki FR (SN: 000101 - 004999) Rear Tires and Transaxles - 42" Parts Diagram

42" Zero-Turn Mower, 21.5hp Kawasaki FR

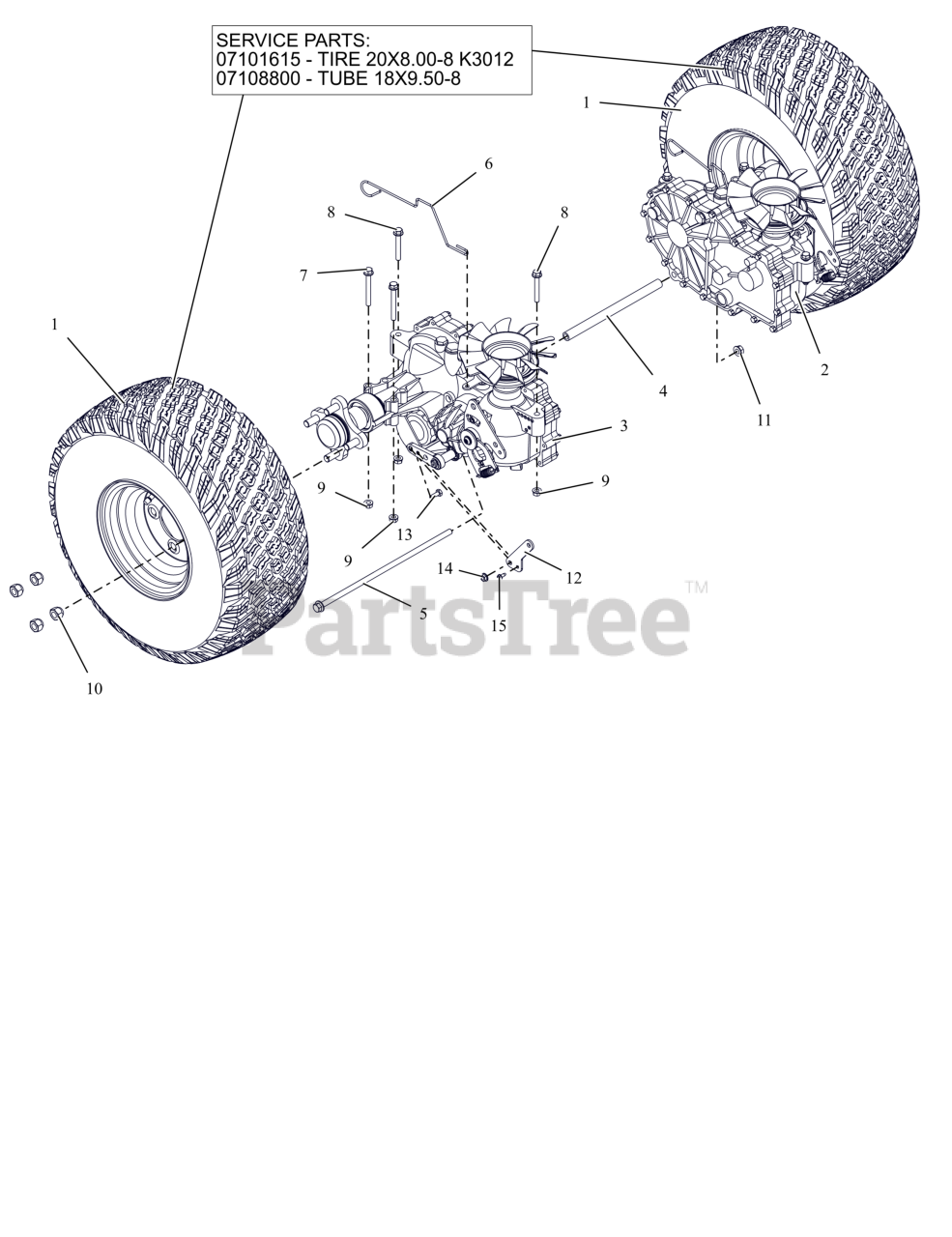

Rear Tires and Transaxles - 42" Parts Diagram

  • Title

1

Gravely 07101502

ASM-WHL/TIRE 20X8.00-10 TURF

$159.99

$

Usually ships in 4-12 days

0

1

Gravely 07101615

Tire, 20x8.00-8 K3012

Note: Service Part Component

$153.99

$

Usually ships in 4-12 days

0

1

Gravely 07108800

TUBE 18X6.50/8.50/9.50-8/20X8.00/10.00-8

Note: Optional Service Part

$34.99

$

Usually ships in 4-12 days

0

2

Gravely 09483100

TRANSAXLE- 2800 - LH

$1034.99

$

Usually ships in 4-12 days

0

3

Gravely 09483000

TRANSAXLE- 2800 - RH

$1034.99

$

Usually ships in 4-12 days

0

4

Gravely 05162551

SPCR, TRANSAXLE .406 ID X .630 OD X 9.27 (BLACK)

$18.99

$

Usually ships in 4-12 days

0

5

Gravely 05901903

BLT, HEX-FLG 0.375-16X13 GR5 ZC120

$13.99

$

Usually ships in 4-12 days

0

6

Gravely 09661600

WIRE- DUMP VALVE LEVER

$

$

Not available

7

Gravely 05901911

BLT,HEX-FLG .31-18X2.75 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 05901910

BLT,HEX-FLG .31-18X2.25 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06500926

NUT, WHEEL .50-20 ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 09677851

PLATE- ADAPTOR PARKING BRAKE

$

$

Not available

13

Gravely 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

15

Gravely 07400130

SCR,TAP #10-24X.50 HWH TR ZCC

$2.49

$

In Stock, Qty 5

0
