918011 (ZTX 52) - Gravely 52" Zero-Turn Mower, 23hp Kawasaki FR (SN: 000101 - 004999) Engine - Kawasaki -FR691V Parts Diagram

52" Zero-Turn Mower, 23hp Kawasaki FR

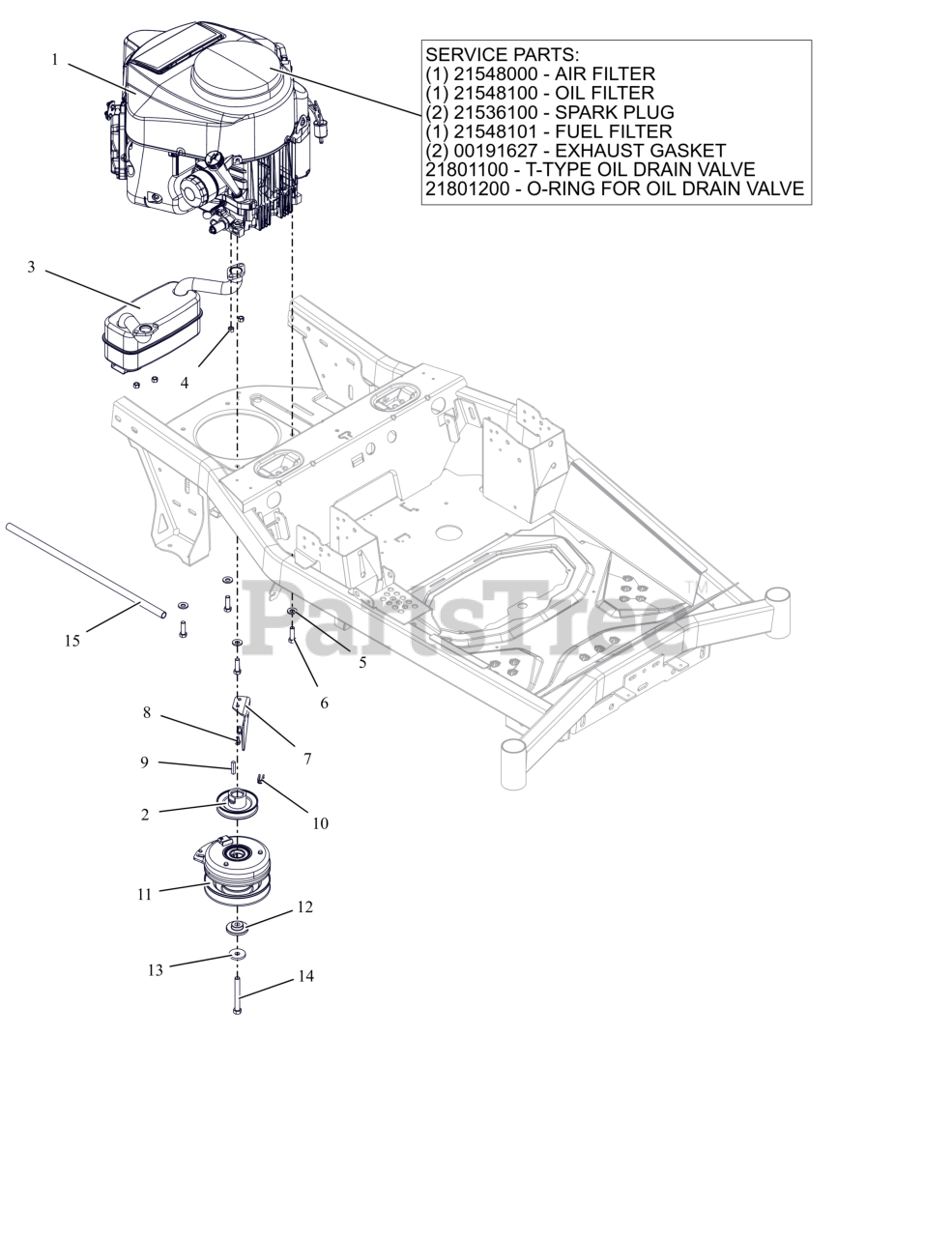

Engine - Kawasaki -FR691V Parts Diagram

  • Title
1

Gravely 08200717

ENGINE, KAWASAKI FR691 23HP

$

$

Not available

1

Gravely 21548000

AIR FILTER, KAWASAKI FR

Note: Component Service Part

$17.99

$

In Stock, Qty 20+

0

1

Gravely 21548100

OIL FILTER, KAWASAKI FR
(Superseded to 49065-0721)

Note: Component Service Part

$18.99

$

In Stock, Qty 20+

0

1

Gravely 21536100

PLUG, SPARK

Note: Component Service Part

$3.99

$

In Stock, Qty 20+

0

1

Gravely 21548101

FUEL FILTER-KAWASAKI FR
(Superseded to 21573800)

Note: Component Service Part

$

$

Not available

1

Gravely 00191627

GASKET, MUFFLER S/O

Note: Component Service Part

$7.99

$

In Stock, only 2 left!

0

1

Gravely 21801100

VALVE- T-TYPE OIL DRAIN

Note: Component Service Part

$

$

Not available

1

Gravely 21801200

O-RING- OIL DRAIN VALVE

Note: Component Service Part

$5.99

$

Usually ships in 4-12 days

0

2

Gravely 07351400

WLDMT-PULLEY-4.831OD X1.003

$28.99

$

Usually ships in 4-12 days

0

3

Gravely 05088300

MUFFLER - KAWASAKI

$102.99

$

Usually ships in 4-12 days

0

4

Gravely 06500919

NUT-LK-TOP-FLG M8 ZCC

$2.49

$

In Stock, Qty 18

0

5

Gravely 06400927

WASHER, 3/8" SPRING DISC

$3.49

$

In Stock, only 2 left!

0

6

Gravely 05901808

BLT, HEX .38-16X1.25 G5 ZCC NT

$1.99

$

In Stock, Qty 11

0

7

Gravely 09656751

BRKT- CLUTCH STOP

$

$

Not available

8

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 11

0

10

Gravely 30145600

BSHG, CLUTCH

$

$

Not available

11

Gravely 09481100

CLUTCH, WARNER-IXR-18211

$284.99

$

Usually ships in 4-12 days

0

12

Gravely 05501206

BSHG-FLG .469X1.06X.574X2.0

$19.99

$

In Stock, only 1 left!

0

13

Gravely 06400936

WASHER, 7/16" SPRING DISK

$11.99

$

In Stock, only 1 left!

0

14

Gravely 05902124

BLT- HEX .44-20X3.50 G8 ZCC NT

$9.49

$

Usually ships in 4-12 days

0

15

Gravely 30143000

HOSE- OIL DRAIN

$5.99

$

Usually ships in 4-12 days

0
