918010 (ZTX 52) - Gravely 52" Zero-Turn Mower, 23hp Kohler Pro (SN: 005000 - 029999) Deck Lift Parts Diagram

52" Zero-Turn Mower, 23hp Kohler Pro

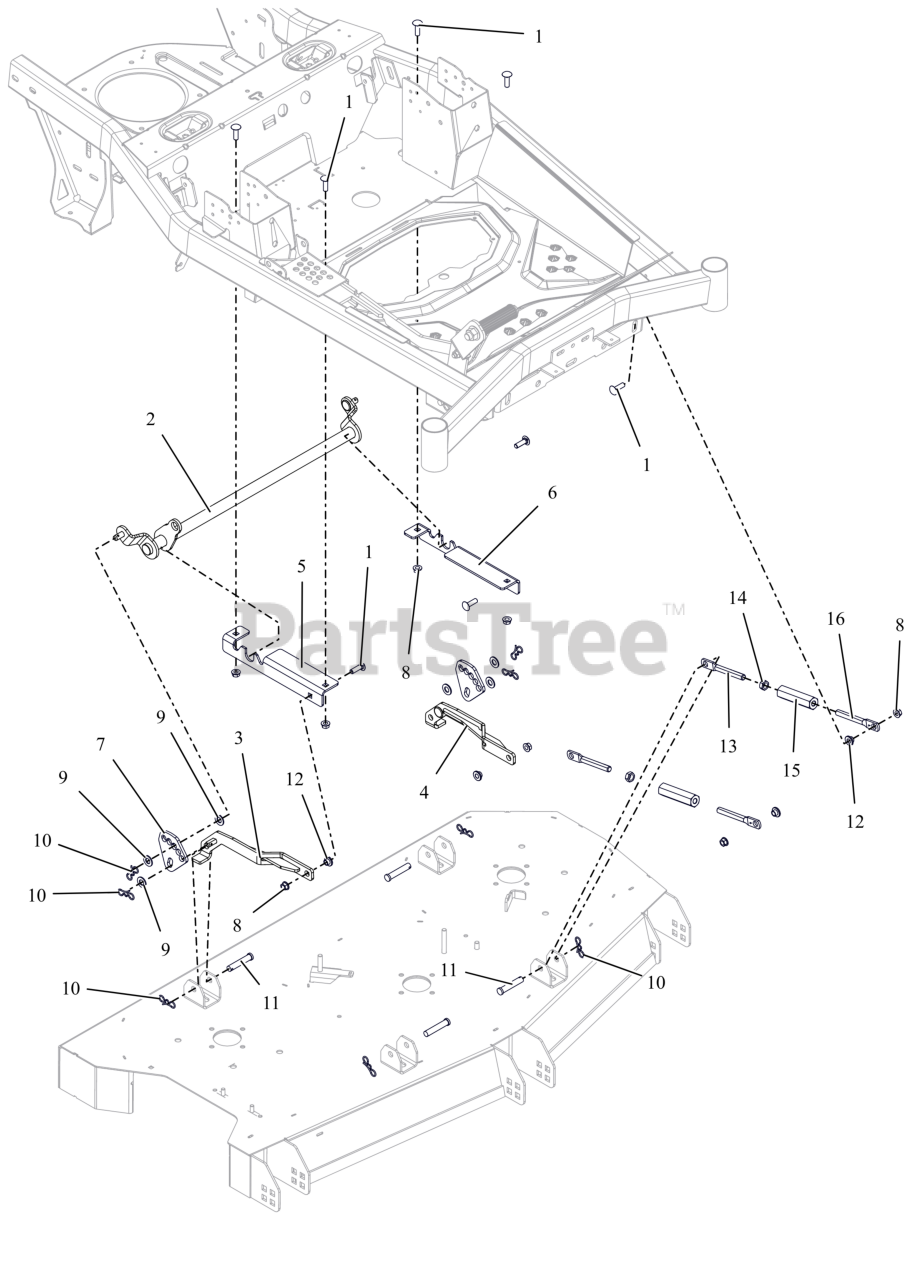

Deck Lift Parts Diagram

  • Title

1

Gravely 06200236

BLT,RHSSN .38-16X1.25 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

2

Gravely 09656851

WLDMT- DECK LIFT SHAFT

$103.99

$

Usually ships in 4-12 days

0

3

Gravely 09658351

WLDMT- REAR DECKLIFT -RH

$38.99

$

Usually ships in 4-12 days

0

4

Gravely 09658451

WLDMT- REAR DECKLIFT BRKT-LH

$38.99

$

Usually ships in 4-12 days

0

5

Gravely 09660951

PLATE- REAR DECKLIFT MTG-RH

$17.99

$

Usually ships in 4-12 days

0

6

Gravely 09660851

PLATE- REAR DECKLIFT MTG-LH

$17.99

$

Usually ships in 4-12 days

0

7

Gravely 09658551

BRKT- DECK HEIGHT ADJUSTER

$13.99

$

Usually ships in 4-12 days

0

8

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06700220

PIN, BOWTIE .091X1.875 ZCC

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06810700

PIN-CLEV .494X2.50 BRIGHT ZINC

$3.99

$

In Stock, only 2 left!

0

12

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

13

Gravely 09692700

LINK- DECK -RH

$14.99

$

Usually ships in 4-12 days

0

14

Gravely 06500911

NUT-JAM .500-13 G2 ZCC

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06501017

NUT-COUPLER .500 LH/RH
(Superseded to 06501020)

$9.99

$

Usually ships in 4-12 days

0

16

Gravely 09661500

ROD, FRONT LIFT - LH THREAD

$12.99

$

In Stock, only 1 left!

0
