918009 (ZTX 48) - Gravely 48" Zero-Turn Mower, 21.5hp Kawasaki FR (SN: 000101 - 004999) Controls Parts Diagram

48" Zero-Turn Mower, 21.5hp Kawasaki FR

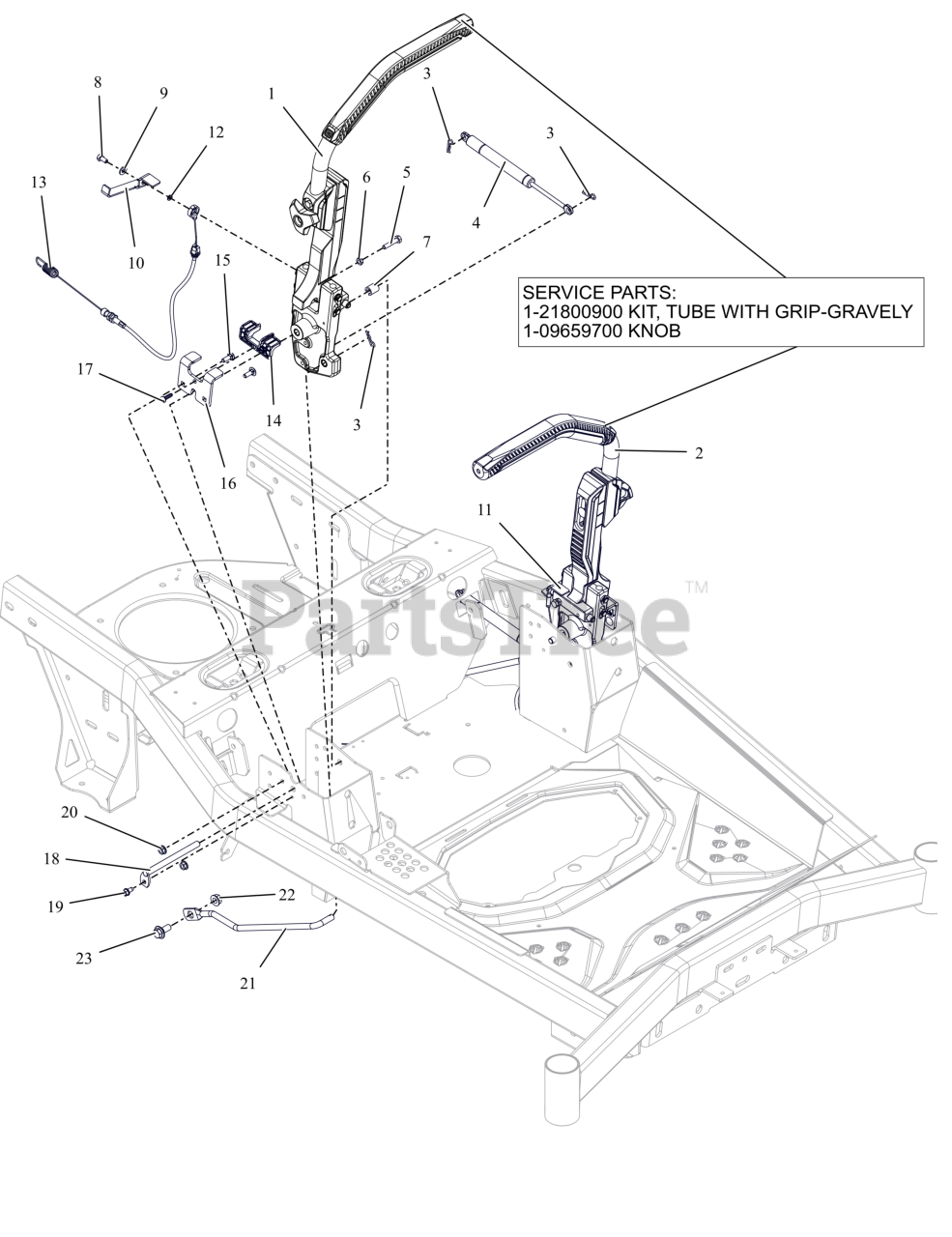

Controls Parts Diagram

  • Title

1

Gravely 09681200

ASM- CONTROLS -RH-GRAVELY

$258.99

$

Usually ships in 4-12 days

0

2

Gravely 09681300

ASM- CONTROLS -LH -GRAVELY

$

$

Not available

3

Gravely 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

4

Gravely 09670000

DAMPER- STRAIGHT MOUNT

$39.99

$

Usually ships in 4-12 days

0

5

Gravely 05902208

BLT, HEX 0.25-20X1.25F GR5 ZCC

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 06500908

NUT-JAM .250-20 G2 ZCC

$0.99

$

Usually ships in 4-12 days

0

7

Gravely 09670100

SPCR- SNAP-ON 1/2 X 1 1/2

$

$

Not available

8

Gravely 05901918

BLT, HEX 0.375-16X1 GR5 EP80 ZC120

$1.49

$

In Stock, only 1 left!

0

9

Gravely 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

10

Gravely 09676951

BRKT, PARKING BRK ENG R (BLACK)

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 09677051

BRKT- PARKING BRK ENG R-BLACK

$5.99

$

In Stock, only 1 left!

0

12

Gravely 06401236

WSHR-FLT .250X.406X.050 ZCC

$

$

Not available

13

Gravely 09669900

CABLE- PARK BRAKE

$51.99

$

Usually ships in 4-12 days

0

14

Gravely 07500530

STEERING, PLASTIC LINER

$4.99

$

Usually ships in 4-12 days

0

15

Gravely 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

16

Gravely 09669351

PLATE- BRAKE STOP

$

$

Not available

17

Gravely 07400101

SCR-TAP 12-14X.75PLSTITE @BLZC

$0.99

$

In Stock, Qty 20+

0

18

Gravely 30135500

PIN- FIXED STEERING PIVOT

$

$

Not available

19

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

21

Gravely 09659900

WIREFORM- STEERING LINKAGE

$

$

Not available

22

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

23

Gravely 07002029

BLT- SHLDR .375-16X.100X.72

$5.99

$

Usually ships in 4-12 days

0
