918005 - Ariens Ikon 52" Zero-Turn Mower, 23hp Kawasaki FR (SN: 030000 & Above) Fenders Parts Diagram

Ikon 52" Zero-Turn Mower, 23hp Kawasaki FR

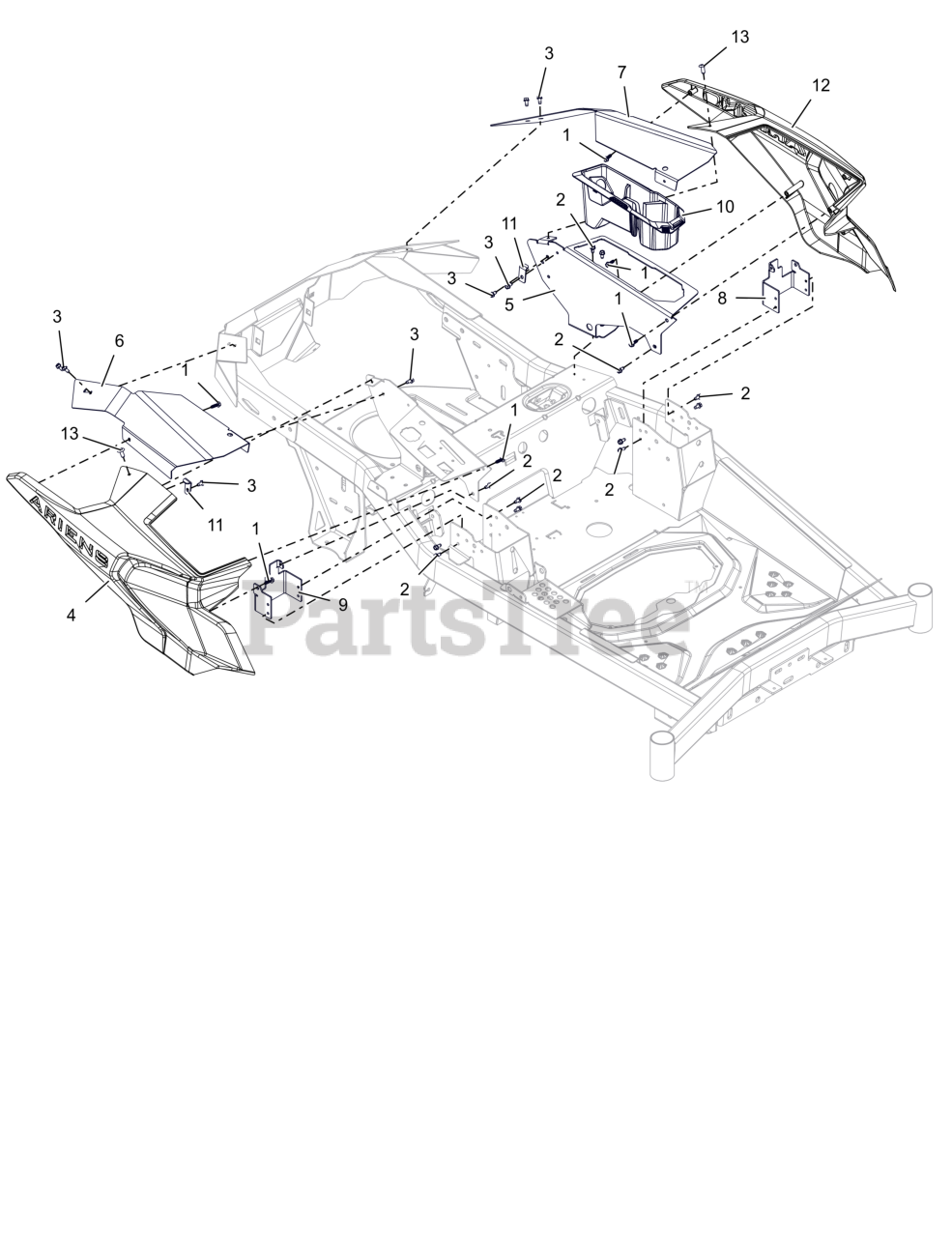

Fenders Parts Diagram

  • Title

1

Ariens 06100231

SCR, PLASTITE .25-10X.75 ZCC

$1.49

$

In Stock, Qty 6

0

2

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

3

Ariens 07400210

SCR-TAP .25X.50 HWH ZB500

$3.49

$

In Stock, only 1 left!

0

4

Ariens 09662400

FENDER-RH-ARIENS

$

$

Not available

5

Ariens 09666559

PANEL- CONTROL-LH-ARIENS

$64.99

$

Usually ships in 4-12 days

0

6

Ariens 09667359

BRKT- REAR FENDER MOUNT-A-RH

$68.99

$

Usually ships in 4-12 days

0

7

Ariens 09667459

BRKT-REAR FENDER MOUNT-A-LH

$68.99

$

Usually ships in 4-12 days

0

8

Ariens 09667551

BRKT-FRONT FENDER MOUNT-A-RH

$14.99

$

Usually ships in 4-12 days

0

9

Ariens 09667651

BRKT-FRONT FENDER MOUNT-A-LH

$

$

Not available

10

Ariens 09676400

HOLDER- CUP - IKON

$18.99

$

Usually ships in 4-12 days

0

11

Ariens 30148059

PLATE, FENDER HOLDDOWN (ORANGE)

$

$

Not available

12

Ariens 51801200

KIT,LH ARIENS FENDER W/ DECAL

$68.99

$

Usually ships in 4-12 days

0

13

Ariens P80-332-A

XMAS TREE FASTNER-BLACK

$

$

Not available
