918004 - Ariens Ikon 52" Zero-Turn Mower, 23hp Kohler (SN: 030000 & Above) Rear Tire and Transaxles 48",52",60" Parts Diagram

Ikon 52" Zero-Turn Mower, 23hp Kohler

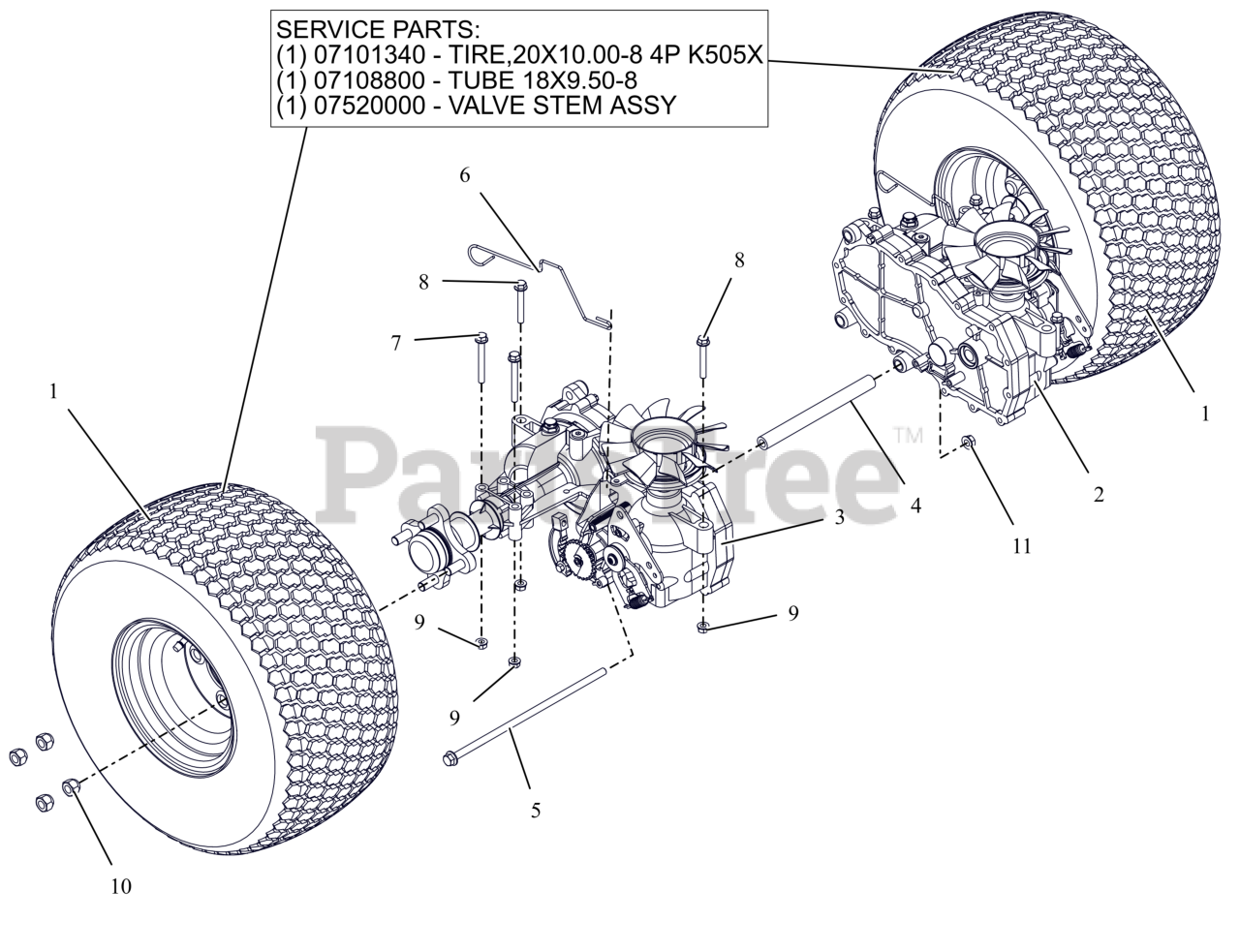

Rear Tire and Transaxles 48",52",60" Parts Diagram

  • Title

1

Ariens 07101419

ASSM TIRE\WHEEL, 20 X 10 -8

$136.99

$

Usually ships in 4-12 days

0

1

Ariens 07101340

LAWN TIRE REAR, 4 PLY kK505 20/10.00-8

Note: Component Service Parts

$

$

Not available

1

Ariens 07520000

VALVE STEM ASS'Y

Note: Component Service Parts

$2.49

$

In Stock, Qty 5

0

1

Ariens 07108800

TIRE TUBE 18/6.50/8.50/9.50-8, 20/8.00/10.00-8 4 PLY TR13 STRAIGHT VALVE

Note: Optional Component Service Parts

$34.99

$

Usually ships in 4-12 days

0

2

Ariens 09499900

TRANSAXLE- EZT - LH

$775.99

$

Usually ships in 4-12 days

0

3

Ariens 09499800

TRANSAXLE- EZT-RH

$775.99

$

Usually ships in 4-12 days

0

4

Ariens 05162451

TUBE, TRANSAXLE BRACE 8.18LG

$19.99

$

In Stock, only 1 left!

0

5

Ariens 05901902

BLT,HEX-FLG .38-16X11.5 G5 ZCC

$11.99

$

In Stock, only 1 left!

0

6

Ariens 09661600

WIRE- DUMP VALVE LEVER

$

$

Not available

7

Ariens 05901911

BLT,HEX-FLG .31-18X2.75 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 05901910

BLT,HEX-FLG .31-18X2.25 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

9

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06500926

NUT, WHEEL .50-20 ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0
