918004 - Ariens Ikon 52" Zero-Turn Mower, 23hp Kohler (SN: 030000 & Above) Front Wheel and Caster Forks Parts Diagram

Ikon 52" Zero-Turn Mower, 23hp Kohler

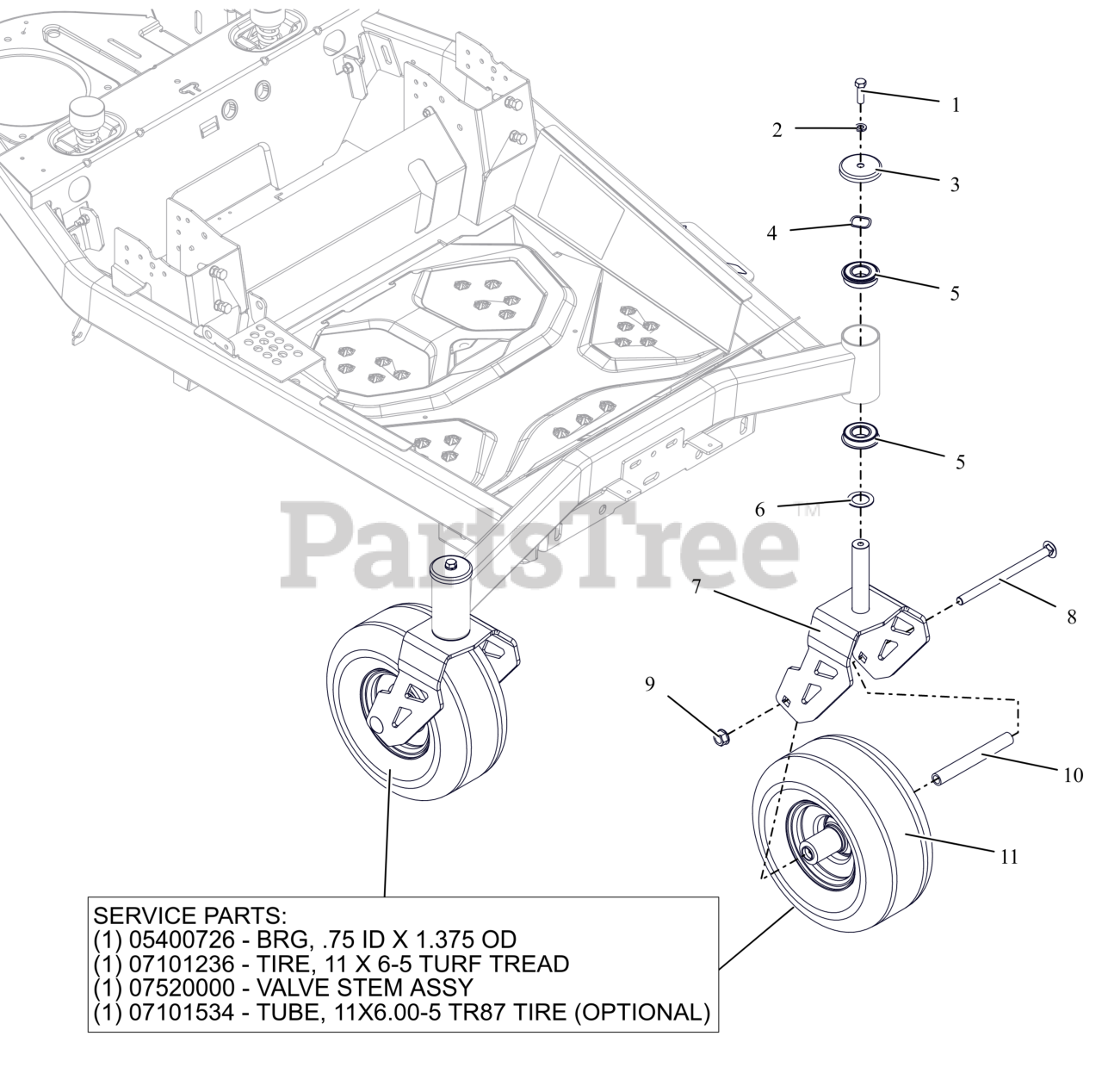

Front Wheel and Caster Forks Parts Diagram

  • Title

1

Ariens 05902203

BLT- HEX .38-16X1.25 G5 ZB500

$2.99

$

In Stock, only 1 left!

0

2

Ariens 06300130

WSHR-LK-REG .375X.094 ZB500

$1.49

$

In Stock, only 1 left!

0

3

Ariens 09692800

SHIELD, AXLE BEARING

$6.99

$

In Stock, only 1 left!

0

4

Ariens 06401030

WSHR-WAVE 1.0X1.25X.028 .145FH

$5.99

$

In Stock, Qty 20+

0

5

Ariens 05400728

BEARING, BALL -2.000 OD X 1.000 ID X .5625 W/RING

$12.99

$

In Stock, Qty 6

0

6

Ariens 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$2.99

$

In Stock, Qty 20+

0

7

Ariens 09657959

WLDMT, CASTER FORK (ORANGE)

$71.99

$

In Stock, only 1 left!

0

8

Ariens 06200509

BLT-RHSN .50-13X7.50 G5 ZCC NS

$6.99

$

In Stock, only 1 left!

0

9

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 00853400

SPACER, FRONT WHEEL (WIDE 6.0)

$14.99

$

In Stock, only 1 left!

0

11

Ariens 07101423

TIRE/WHEEL ASSY 11X6-5
(Superseded to 07101505)

$79.99

$

In Stock, only 1 left!

0

11

Ariens 05400726

BRG, .75 ID X 1.375 OD
(Superseded to 07145400)

Note: Component Service Part

$

$

Not available

11

Ariens 07101236

LAWN TIRE FRONT, 11/6.00-5 SMOOTH

Note: Component Service Part

$67.99

$

Usually ships in 4-12 days

0

11

Ariens 07520000

VALVE STEM ASS'Y

Note: Component Service Part

$2.49

$

In Stock, Qty 5

0

11

Ariens 07101534

TUBE- 11X6.00-5 TR87 TIRE

Note: Optional Component Service Part

$

$

Not available
