918004 - Ariens Ikon 52" Zero-Turn Mower, 23hp Kohler (SN: 030000 & Above) Engine - Kohler KT730 Parts Diagram

Ikon 52" Zero-Turn Mower, 23hp Kohler

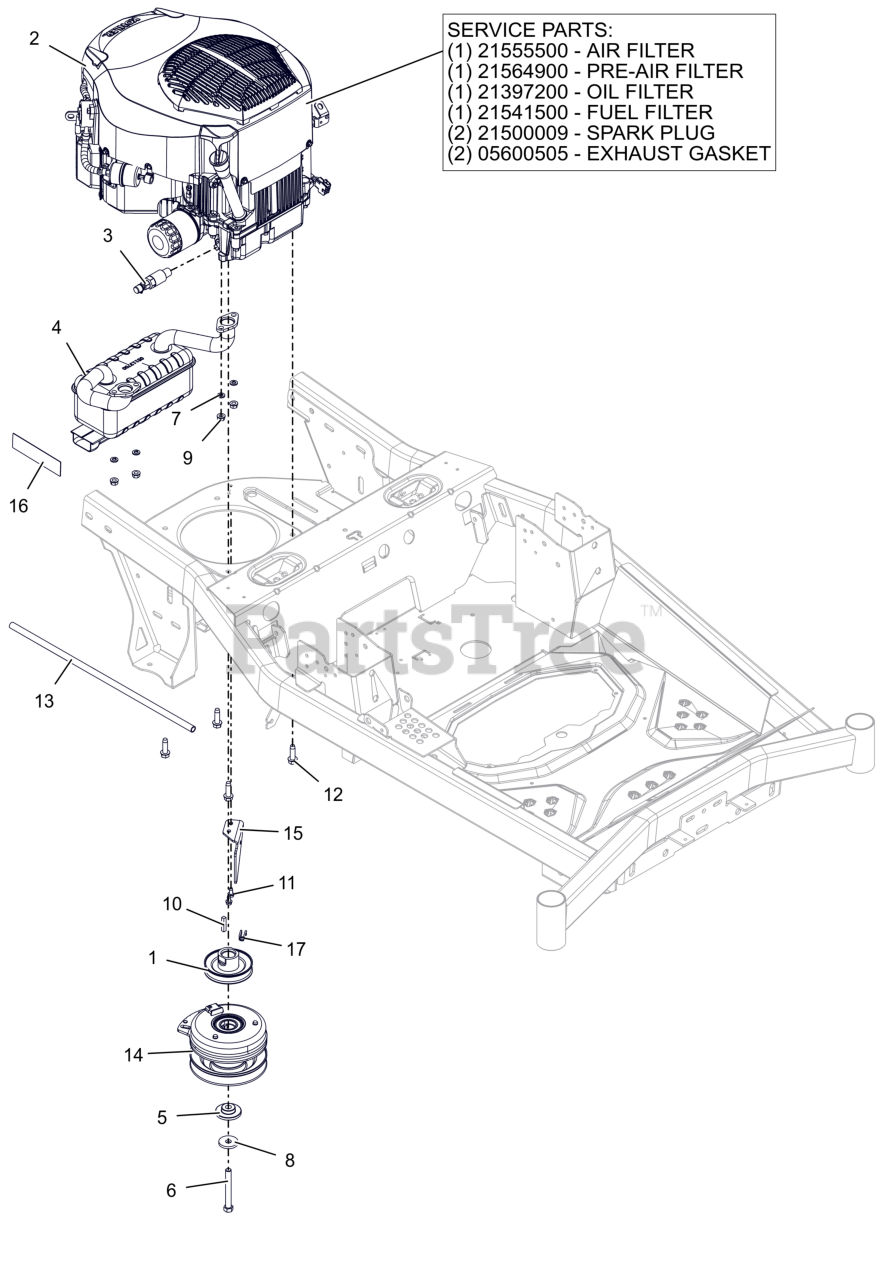

Engine - Kohler KT730 Parts Diagram

  • Title

1

Ariens 07351400

WLDMT, PULLEY 3.75 OD X 1.003 ENGINE

$28.99

$

Usually ships in 4-12 days

0

2

Ariens 08201307

ENGINE, KOHLER - KT730

$

$

Currently unavailable

2

Ariens 21555500

AIR CLEANER, KOHLER

Note: Service Part Component

$29.99

$

In Stock, only 1 left!

0

2

Ariens 21564900

PRE-CLEANER, KOHLER

Note: Service Part Component

$11.99

$

Usually ships in 4-12 days

0

2

Ariens 21397200

FILTER, OIL - KOH CV20
(Superseded to 20715100)

Note: Service Part Component

$18.99

$

In Stock, only 1 left!

0

2

Ariens 21541500

FILTER, FUEL

Note: Service Part Component

$8.99

$

In Stock, Qty 20+

0

2

Ariens 21500009

PLUG, SPARK KOHLER

Note: Service Part Component

$10.99

$

Usually ships in 4-12 days

0

2

Ariens 05600505

GASKET, MUFFLER COURAGE TWIN

Note: Service Part Component

$9.99

$

Usually ships in 4-12 days

0

3

Ariens 03943600

DRAIN, OIL

$11.99

$

In Stock, only 2 left!

0

4

Ariens 05113700

MUFFLER, KOHLER

$82.99

$

In Stock, only 1 left!

0

5

Ariens 05501206

BSHG-FLG .469X1.06X.574X2.0

$19.99

$

In Stock, only 1 left!

0

6

Ariens 05902124

BLT, HEX 0.4375-20X3.5 G8 ZCC NT

$9.49

$

Usually ships in 4-12 days

0

7

Ariens 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06400936

WASHER, 7/16" SPRING DISK

$11.99

$

In Stock, only 1 left!

0

9

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 11

0

11

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

12

Ariens 07400128

SCR,TAP .375-16X1.25HWH TR ZCC

$2.99

$

In Stock, only 3 left!

0

13

Ariens 09166300

HOSE, OIL DRAIN

$

$

Not available

14

Ariens 09481100

CLUTCH- WARNER IXR-18211

$284.99

$

Usually ships in 4-12 days

0

15

Ariens 09656751

BRKT- CLUTCH STOP

$

$

Not available

16

Ariens 09695200

TAPE- HEAT DEFLECTOR

$

$

Not available

17

Ariens 30145600

BSHG, CLUTCH

$

$

Not available
