918004 - Ariens Ikon 52" Zero-Turn Mower, 23hp Kohler (SN: 000101 - 030000) Electrical Parts Diagram

Ikon 52" Zero-Turn Mower, 23hp Kohler

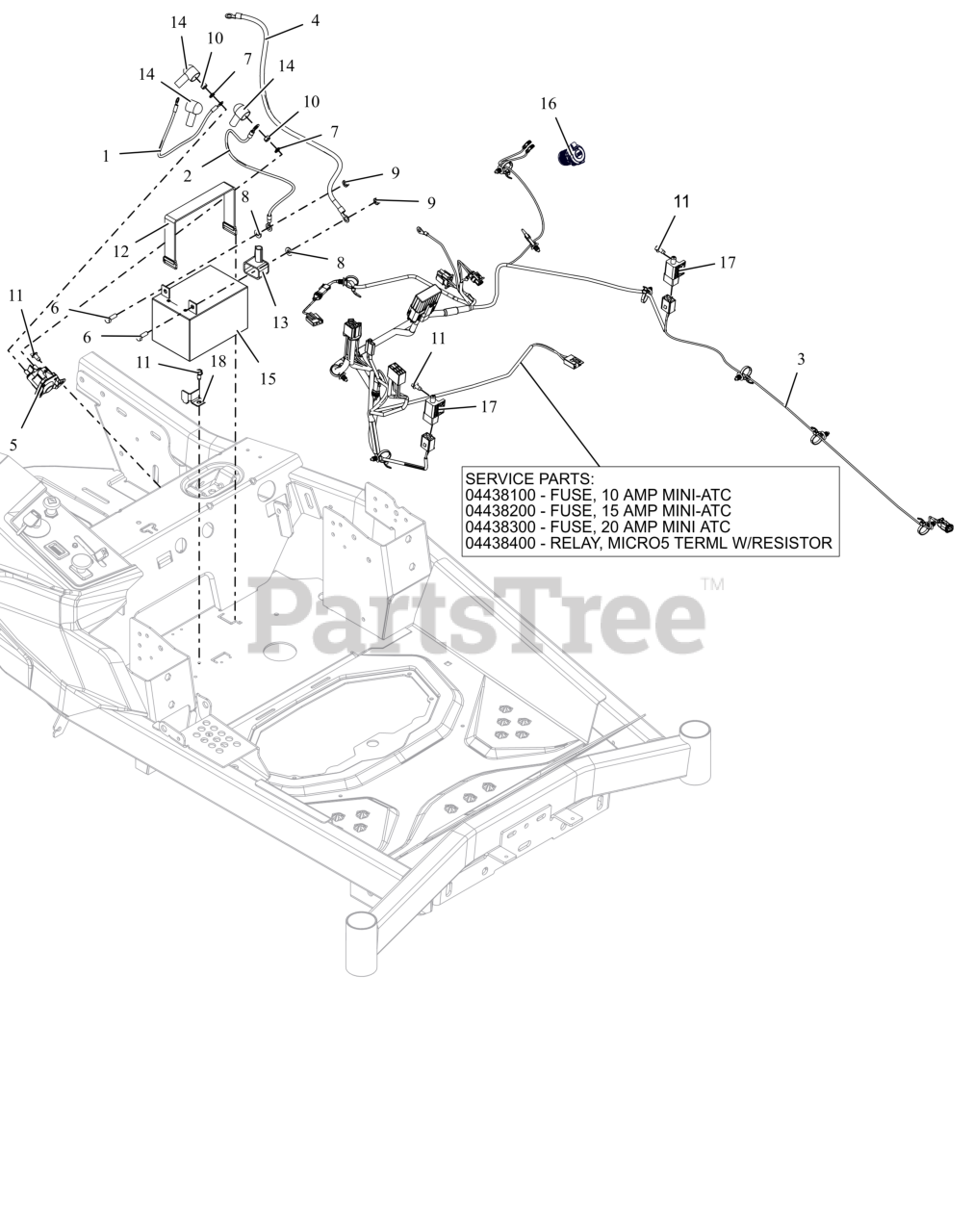

Electrical Parts Diagram

  • Title

1

Ariens 04787400

CABLE,POS W/2 1/4 RING 15.0 LG

$9.99

$

In Stock, only 1 left!

0

2

Ariens 04787500

CABLE,POS W/2 1/4 RING 18.5 LG

$18.99

$

Usually ships in 4-12 days

0

3

Ariens 09481300

HARNESS- MAIN- IKON23

$206.99

$

Usually ships in 4-12 days

0

3

Ariens 04438100

FUSE,10 AMP MINI-ATC

Note: Service Part Component

$4.99

$

Usually ships in 4-12 days

0

3

Ariens 04438200

Fuse, 15 AMP MINI-ATC

Note: Service Part Component

$4.99

$

Usually ships in 4-12 days

0

3

Ariens 04438300

FUSE,20 AMP MINI ATC

Note: Service Part Component

$4.99

$

Usually ships in 4-12 days

0

3

Ariens 04438400

RELAY,MICRO5 TERML W/RESISTOR

Note: Service Part Component

$19.99

$

In Stock, only 1 left!

0

4

Ariens 03288100

CABLE-NEGATIVE BATTERY 24.00"

$17.99

$

In Stock, only 2 left!

0

5

Ariens 05167200

SOLENOID, STARTER (SEALED)

$45.99

$

In Stock, Qty 14

0

6

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 19

0

7

Ariens 06300118

WSHR,LK-EXT.262X.502X.026 ZCC

$0.99

$

Usually ships in 4-12 days

0

8

Ariens 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06500921

NUT-KEPS .250-20 ZCC

$1.49

$

In Stock, only 1 left!

0

10

Ariens 06500925

NUT-STD M6-1.0 ZCC

$0.99

$

Usually ships in 4-12 days

0

11

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

12

Ariens 07500521

STRAP- RUBBER

$17.99

$

Usually ships in 4-12 days

0

13

Ariens 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

14

Ariens 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, only 2 left!

0

15

Ariens 09425500

BATTERY, 12V 12A -190CCA

$129.99

$

In Stock, only 2 left!

0

16

Ariens 30145700

USB, DUAL PORT USB-C, 12V BLK

$45.99

$

Usually ships in 4-12 days

0

17

Ariens 09675800

SWITCH-BRAKE NO/NO-POST & HOLE

Note: Parking Brake/Neutral Switch

$17.99

$

In Stock, only 1 left!

0

18

Ariens 30133051

RETAINER, BATTERY CORNER (BLACK)

$

$

Currently unavailable
