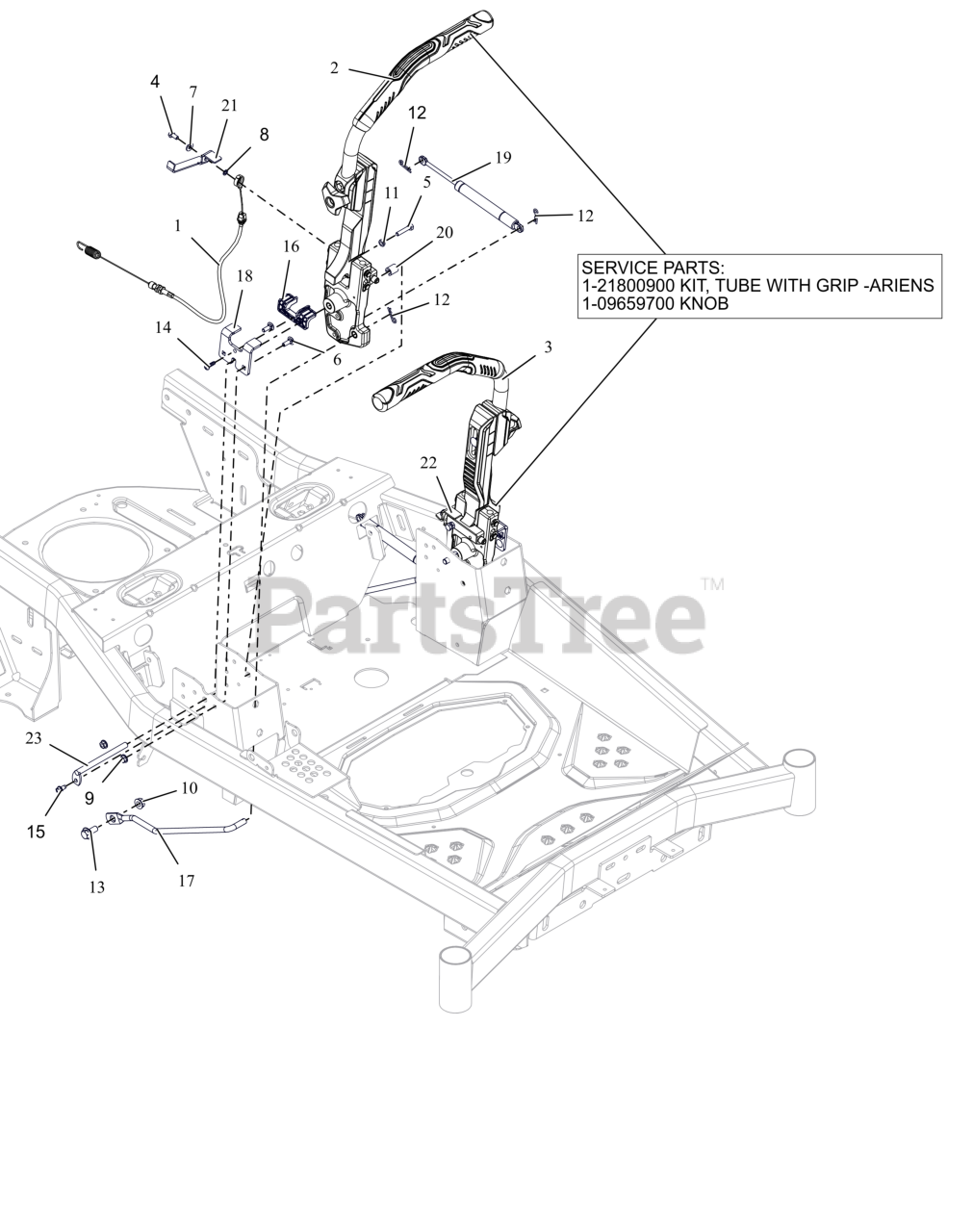

918004 - Ariens Ikon 52" Zero-Turn Mower, 23hp Kohler (SN: 000101 - 030000) Controls Parts Diagram

Ikon 52" Zero-Turn Mower, 23hp Kohler

Controls Parts Diagram

  • Title
1

Ariens 09669900

CABLE- PARK BRAKE

$51.99

$

Usually ships in 4-12 days

0

2

Ariens 09671000

ASM- CONTROLS -RH

$232.99

$

Usually ships in 4-12 days

0

2

Ariens 21801000

KIT - TUBE WITH GRIP - ARIENS

Note: Service Part Component

$56.99

$

Usually ships in 4-12 days

0

2

Ariens 09659700

KNOB, STEERING ADJUSTMENT

Note: Service Part Component

$

$

Not available

3

Ariens 09671100

ASM- CONTROLS -LH

$232.99

$

Usually ships in 4-12 days

0

4

Ariens 05901918

BLT, HEX .25-20X.50 G5ZCC EP80

$1.49

$

In Stock, only 1 left!

0

5

Ariens 05902208

BLT, HEX 0.25-20X1.25F GR5 ZCC

$2.49

$

Usually ships in 4-12 days

0

6

Ariens 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 13

0

7

Ariens 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06401236

WSHR-FL-STL 0.25X0.406X0.05 ZCC

$

$

Not available

9

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06500908

NUT-JAM .250-20 G2 ZCC

$0.99

$

Usually ships in 4-12 days

0

12

Ariens 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

13

Ariens 07002029

BLT-SHLDR .50X.175 ZCC

$5.99

$

Usually ships in 4-12 days

0

14

Ariens 07400101

SCR-TAP 12-14X.75PLSTITE @BLZC

$0.99

$

In Stock, Qty 20+

0

15

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

16

Ariens 07500530

STEERING-PLASTIC LINER

$4.99

$

Usually ships in 4-12 days

0

17

Ariens 09659900

WIREFORM- STEERING LINKAGE

$

$

Not available

18

Ariens 09669351

PLATE- BRAKE STOP

$

$

Not available

19

Ariens 09670000

DAMPER- STRAIGHT MOUNT

$39.99

$

Usually ships in 4-12 days

0

20

Ariens 09670100

SPCR- SNAP-ON 1/2 X 1 1/2

$

$

Not available

21

Ariens 09676951

BRKT, PARKING BRK ENG R (BLACK)

$5.99

$

Usually ships in 4-12 days

0

22

Ariens 09677051

BRKT, PARKING BRK ENG L (BLACK)

$5.99

$

In Stock, only 1 left!

0

23

Ariens 30135500

PIN- FIXED STEERING PIVOT

$

$

Not available
