918003 - Ariens Ikon 48" Zero-Turn Mower, 21.5hp Kawasaki FR (SN: 000101 - 030000) Deck, Belt, Blades, and Spindles - 48" Parts Diagram
Ikon 48" Zero-Turn Mower, 21.5hp Kawasaki FR

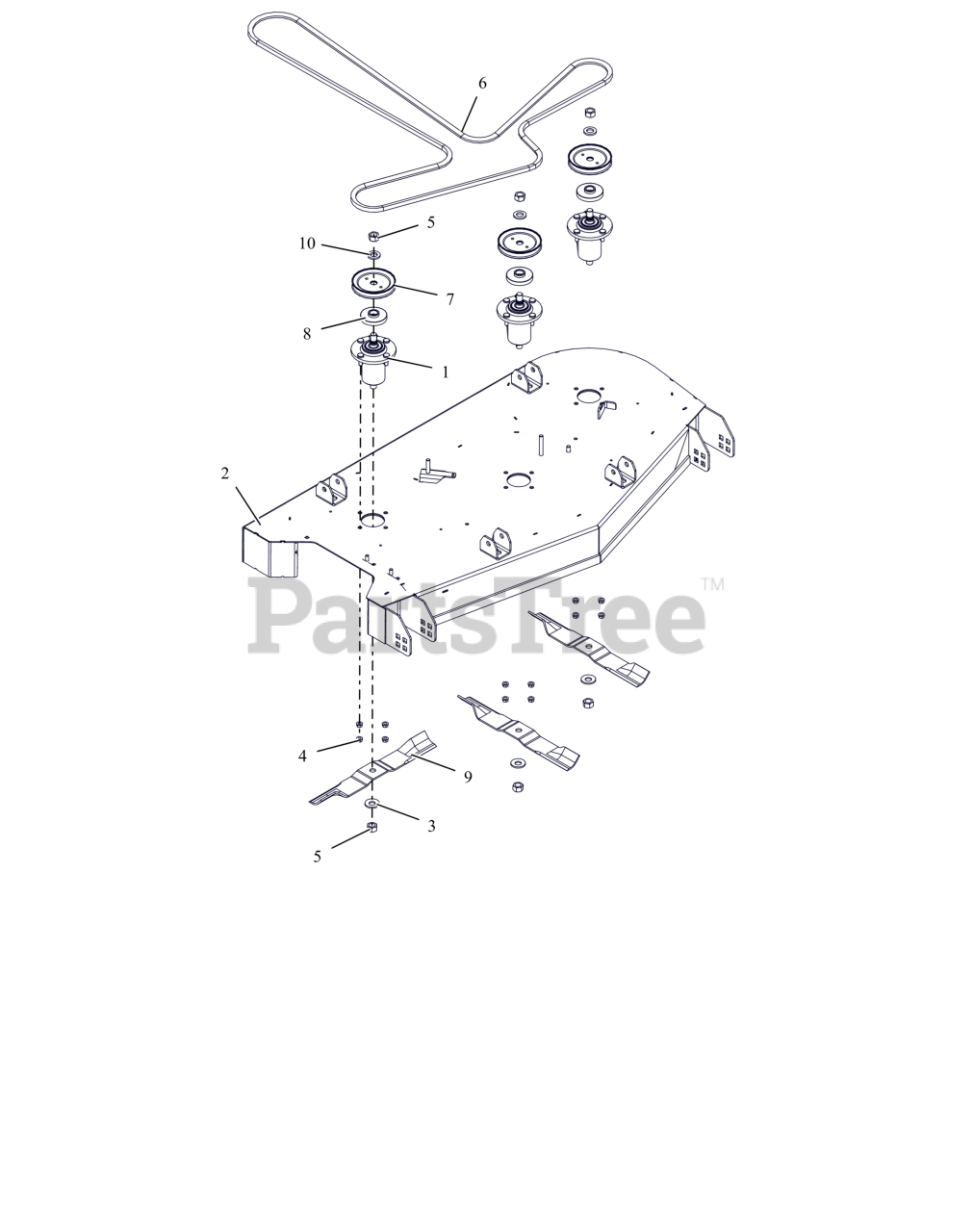

Deck, Belt, Blades, and Spindles - 48" Parts Diagram
Ariens 30138800
ASM, ALUMINUM SPINDLE SUB
$91.99
$
In Stock, only 1 left!
Ariens 51800200
KIT,ARIENS DECK 48" WITH DECALS
$749.99
$
Usually ships in 4-12 days
Ariens 06445700
WSHR-BLVL .669X1.535X.138
$4.99
$
In Stock, Qty 6
Ariens 06500840
NUT,LK-CTR-FLG .31-18 GF ZCC
$1.49
$
In Stock, Qty 20+
Ariens 06500920
NUT-STD .625-18 ZCC
$1.49
$
In Stock, Qty 20+
Ariens 07200920
V-BELT, HA SECTION
$85.99
$
In Stock, only 1 left!
Ariens 07351601
PULLEY, V-4.50 ODX.625 SPLINE ID
$17.99
$
Usually ships in 4-12 days
Ariens 09482000
SHIELD, DUST
$
$
Not available
Ariens 09659000
BLADE, MOWER 16.50"
$25.99
$
In Stock, only 3 left!
Ariens 05501510
SPACER
$6.99
$
In Stock, only 2 left!
