918002 - Ariens Ikon 42" Zero-Turn Mower, 21.5hp Kawasaki FR (SN: 000101 - 030000) Transaxle Drive Parts Diagram
Ikon 42" Zero-Turn Mower, 21.5hp Kawasaki FR

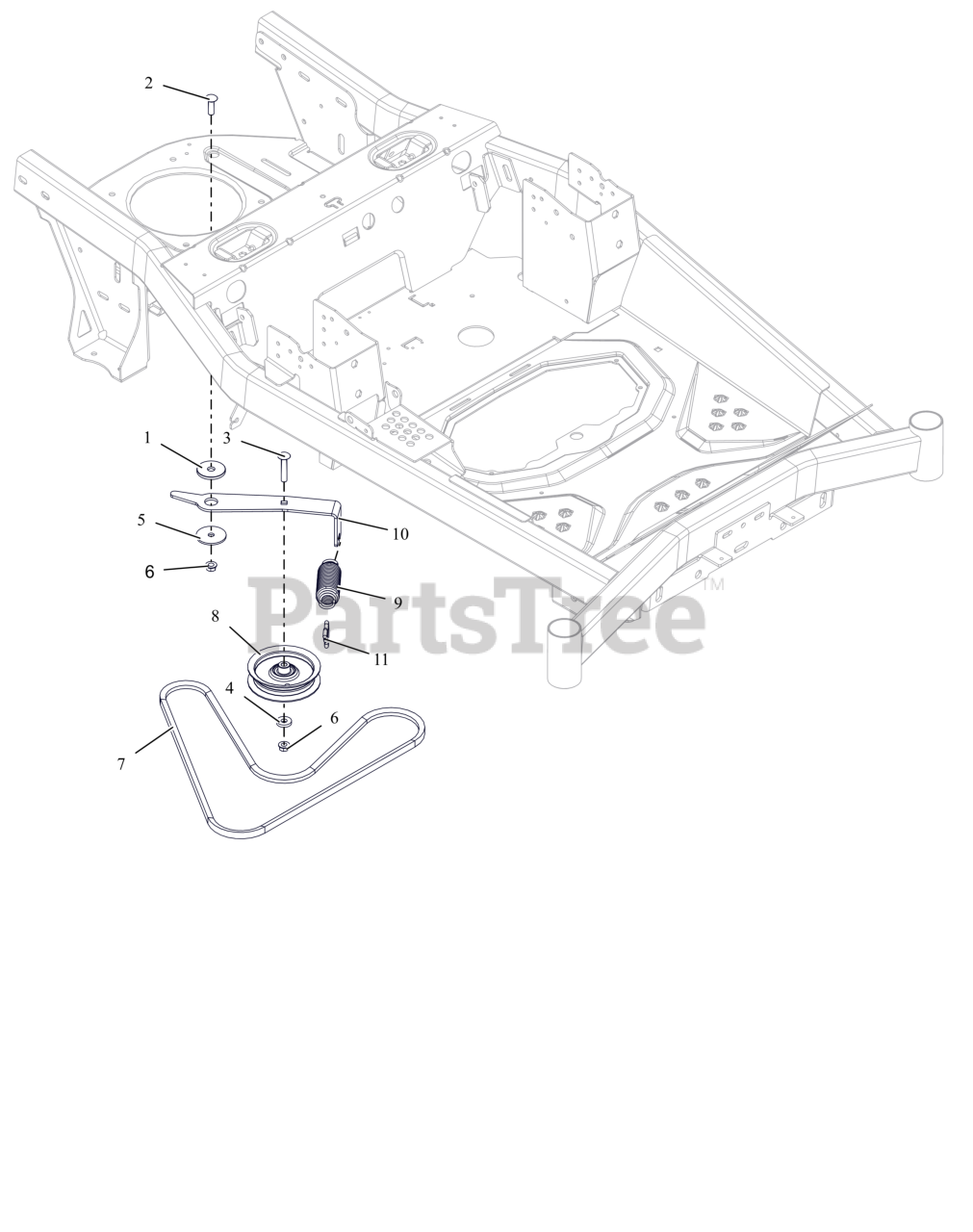

Transaxle Drive Parts Diagram
Ariens 05501509
BSHG-FLG .406X.88X.43X.25
$6.99
$
Usually ships in 4-12 days
Ariens 06200236
BLT,RHSSN .38-16X1.25 G5 ZCC
$2.49
$
In Stock, Qty 20+
Ariens 06200323
BLT,RHSSN.375-16X2.00 G5 ZCC
$2.99
$
In Stock, Qty 20+
Ariens 06401108
WSHR, FLT .406X1.00X.188 ZCC
$2.49
$
In Stock, Qty 20+
Ariens 06401221
WSHR-FL-STL 0.406X2X0.125 ZCC
$3.99
$
Usually ships in 4-12 days
Ariens 06500901
NUT-LK-CTR-FLG .375-16 GF ZCC
$1.49
$
In Stock, Qty 20+
Ariens 07200726
V-BELT, A-RAW EDGE COGGED
$39.99
$
Usually ships in 4-12 days
Ariens 07350100
IDLER, FLAT - 4.06" X .75"
$48.99
$
In Stock, Qty 20+
Ariens 08300729
SPRG, EXTENSION
$15.99
$
Usually ships in 4-12 days
Ariens 09653351
ARM- GROUND DRIVE IDLER
$
$
Not available
Ariens 09663200
HOOK- WIRE FORMED SPRING
$
$
Not available
