918 H (1692949) - AGCO Garden Tractor, 18hp PTO Control & Cone Clutch Group Parts Diagram

Garden Tractor, 18hp

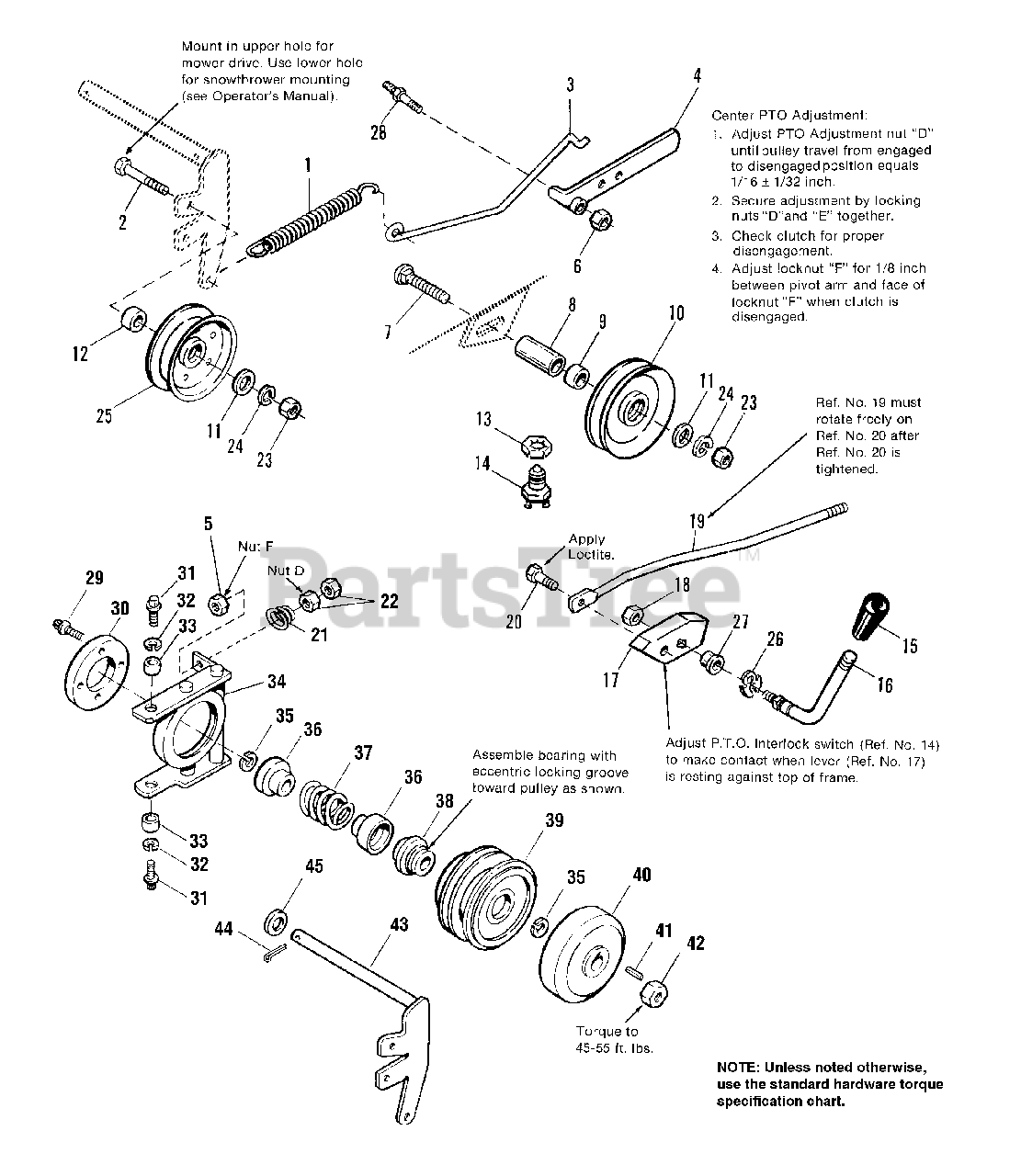

PTO Control & Cone Clutch Group Parts Diagram

  • Title

1

Simplicity 1715435SM

SPRING, Tension

$9.49

$

In Stock, Qty 20+

0

2

Simplicity 1923701SM

CAPSCREW, Hex Hd, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

3

Simplicity 1671424SM

ROD, Tension

$

$

Not available

4

Simplicity 2164155SM

HANDLE ASSEMBLY

$102.99

$

Usually ships in 2-12 days

0

5

Simplicity 1923362SM

LOCKNUT, Hex, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

6

Simplicity 1924058SM

LOCKNUT, Hex, 7/16-14

$2.99

$

Usually ships in 2-12 days

0

7

Simplicity 1931353SM

CARRIAGE BOLT, 3/8-16 x 1-3/4
(Superseded to 703858)

$4.99

$

In Stock, Qty 6

0

8

Simplicity 1667811SM

SPACER

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1666294SM

SPACER

$4.99

$

In Stock, Qty 20+

0

10

Simplicity 1665440SM

PULLEY ASSEMBLY, w/ Bearings

$

$

Not available

11

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 1667812SM

SPACER

$5.99

$

In Stock, Qty 16

0

13

Simplicity 2830647SM

NUT, Pal

$3.99

$

Usually ships in 2-12 days

0

14

Simplicity 2177522SM

SWITCH, Interlock

$49.99

$

In Stock, Qty 9

0

15

Simplicity 1713843SM

KNOB

$12.99

$

Usually ships in 2-12 days

0

16

Simplicity 1713854SM

HANDLE, PTO, Clutch

$30.99

$

Usually ships in 2-12 days

0

17

Simplicity 2173991SM

LEVER

$

$

Not available

18

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

19

Simplicity 1671323SM

ROD ASSEMBLY, Control

$142.99

$

Usually ships in 2-12 days

0

20

Simplicity 1960072SM

CAPSCREW, Hex Hd, 5/16-18 x 7/8

$6.49

$

Usually ships in 2-12 days

0

21

Simplicity 2157127SM

SPRING

$

$

Not available

22

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

25

Simplicity 1606554SM

PULLEY, Idler

$

$

Not available

26

Simplicity 1703805SM

KLIPRING, 1/2

$3.49

$

In Stock, Qty 12

0

27

Simplicity 1704505SM

BUSHING

$

$

Not available

28

Simplicity 2157273SM

STUD

$25.99

$

Usually ships in 2-12 days

0

29

Simplicity 2820036SM

CAPSCREW, Socket Hd., 1/4-20 x 5/8

$6.49

$

In Stock, only 1 left!

0

30

Simplicity 2173957SM

DISC, Brake

$38.99

$

Usually ships in 2-12 days

0

31

Simplicity 1960086SM

CAPSCREW, Thread Forming

$4.99

$

In Stock, only 2 left!

0

32

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

33

Simplicity 2171371SM

SPACER

$9.49

$

In Stock, only 1 left!

0

34

Simplicity 1650906SM

PIVOT ASSEMBLY
(Superseded to 1650906ASM)

$402.99

$

Usually ships in 2-12 days

0

35

Simplicity 2172206SM

RING, Retaining

$4.99

$

In Stock, Qty 20+

0

36

Simplicity 1671339SM

GUIDE, Spring

$

$

Not available

37

Simplicity 2171772SM

SPRING

$

$

Not available

38

Simplicity 1650254SM

BEARING ASSEMBLY

$

$

Not available

39

Simplicity 1650304SM

PULLEY

$186.99

$

Usually ships in 2-12 days

0

40

Simplicity 2174862SM

PLATE ASSEMBLY, Clutch

$

$

Not available

41

Simplicity 2805123SM

KEY
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 20+

0

42

Simplicity 1922133SM

LOCKNUT, Hex, 3/4-16
(Superseded to 7090820YP)

Note: Torque to 45-55 ft. lbs.

$5.99

$

In Stock, only 1 left!

0

43

Simplicity 1666781SM

ARM ASSEMBLY, Pivot
(Superseded to 1666781ASM)

$176.99

$

Usually ships in 2-12 days

0

44

Simplicity 1918459SM

PIN, Cotter, 3/16 x 1-1/2
(Superseded to 703983)

$4.49

$

In Stock, Qty 13

0

45

Simplicity 1960020SM

WASHER

$4.49

$

In Stock, Qty 20+

0
