918 H (1692949) - AGCO Garden Tractor, 18hp Bevel Gear & Side Plate Group Parts Diagram

Garden Tractor, 18hp

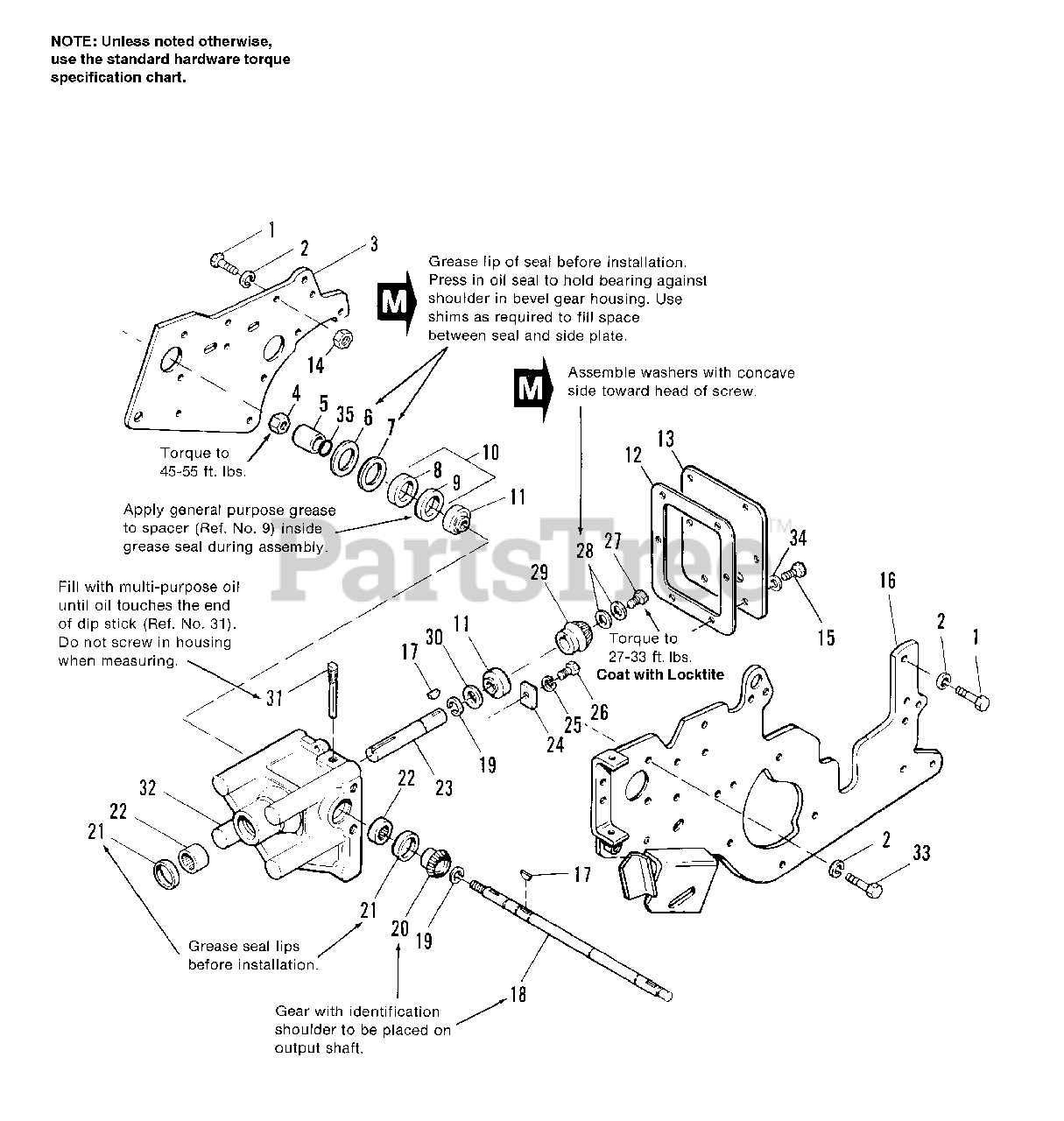

Bevel Gear & Side Plate Group Parts Diagram

  • Title

1

Simplicity 1920677SM

CAPSCREW, Hex Hd, 7/16-14 x 1-1/4
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

2

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1650414SM

PLATE, Side, R.H.

$64.99

$

Usually ships in 2-12 days

0

4

Simplicity 1922133SM

LOCKNUT, Hex, Jam, 3/4-16
(Superseded to 7090820YP)

Note: Torque to 45-55 ft. lbs.

$5.99

$

In Stock, only 1 left!

0

5

Simplicity 2171792SM

SPACER

$37.99

$

Usually ships in 2-12 days

0

6

Simplicity 2171790SM

SHIM

$16.99

$

In Stock, only 4 left!

0

7

Simplicity 2171791SM

SHIM

$19.99

$

In Stock, only 1 left!

0

8

Simplicity 1685088SM

REPAIR KIT, Seal

$34.99

$

In Stock, only 2 left!

0

9

Simplicity 1663111SM

SPACER, Seal, Oil

$16.99

$

In Stock, only 4 left!

0

10

Simplicity 1685088SM

REPAIR KIT, Seal

Note: (Incl. Ref. Nos. 8 & 9)

$34.99

$

In Stock, only 2 left!

0

11

Simplicity 2172256SM

BEARING, Ball

$68.99

$

In Stock, only 4 left!

0

12

Simplicity 2154282SM

GASKET

$11.99

$

In Stock, only 1 left!

0

13

Simplicity 2178104

COVER

$

$

Not available

14

Simplicity 1922133SM

NUT, Hex, 7/16-14 x 1
(Superseded to 7090820YP)

$5.99

$

In Stock, only 1 left!

0

15

Simplicity 1921959SM

CAPSCREW, Hex Hd, 1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

16

Simplicity 1671667SM

PLATE ASSEMBLY, Side, L.H.

$245.99

$

Usually ships in 2-12 days

0

17

Simplicity 2805123SM

KEY, Woodruff, #9
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 1685054SM

SHAFT, Driven

Note: (Incl. Ref. Nos. 4 & 17)

$250.99

$

In Stock, only 1 left!

0

19

Simplicity 2172206SM

RING, Retaining

$4.99

$

In Stock, Qty 20+

0

20

Simplicity 2171796SM

GEAR, Bevel, Driven

$262.99

$

Usually ships in 2-12 days

0

21

Simplicity 2118117SM

SEAL, Oil

$13.99

$

In Stock, Qty 20+

0

22

Simplicity 2154279SM

BEARING, Needle

$35.99

$

Usually ships in 2-12 days

0

23

Simplicity 2172750SM

SHAFT, Driver

$

$

Not available

24

Simplicity 2154040SM

PLATE, Bearing, Clamp

$29.99

$

In Stock, only 1 left!

0

25

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 1925205SM

CAPSCREW, Hex Hd, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

27

Simplicity 1961022

CAPSCREW, Hex Hd, 5/16-18 x 3/4

Note: Torque to 27-33 ft. lbs.

$

$

Not available

28

Simplicity 2177649SM

WASHER

$9.49

$

In Stock, Qty 5

0

29

Simplicity 2172752SM

GEAR, Bevel, Driver

$271.99

$

In Stock, only 2 left!

0

30

Simplicity 2172753SM

WASHER

$10.99

$

Usually ships in 2-12 days

0

31

Simplicity 2178105SM

PLUG ASSEMBLY

$32.99

$

Usually ships in 2-12 days

0

32

Simplicity 1656877SM

HOUSING, Bevel Gear

$359.99

$

In Stock, only 1 left!

0

33

Simplicity 1920676SM

CAPSCREW, Hex Hd, 7/16-14 x 1

$5.49

$

In Stock, Qty 15

0

34

Simplicity 1916964SM

LOCKWASHER, 1/4, I.D.
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

35

Simplicity 2176111SM

"O" RING

$4.49

$

In Stock, only 1 left!

0
