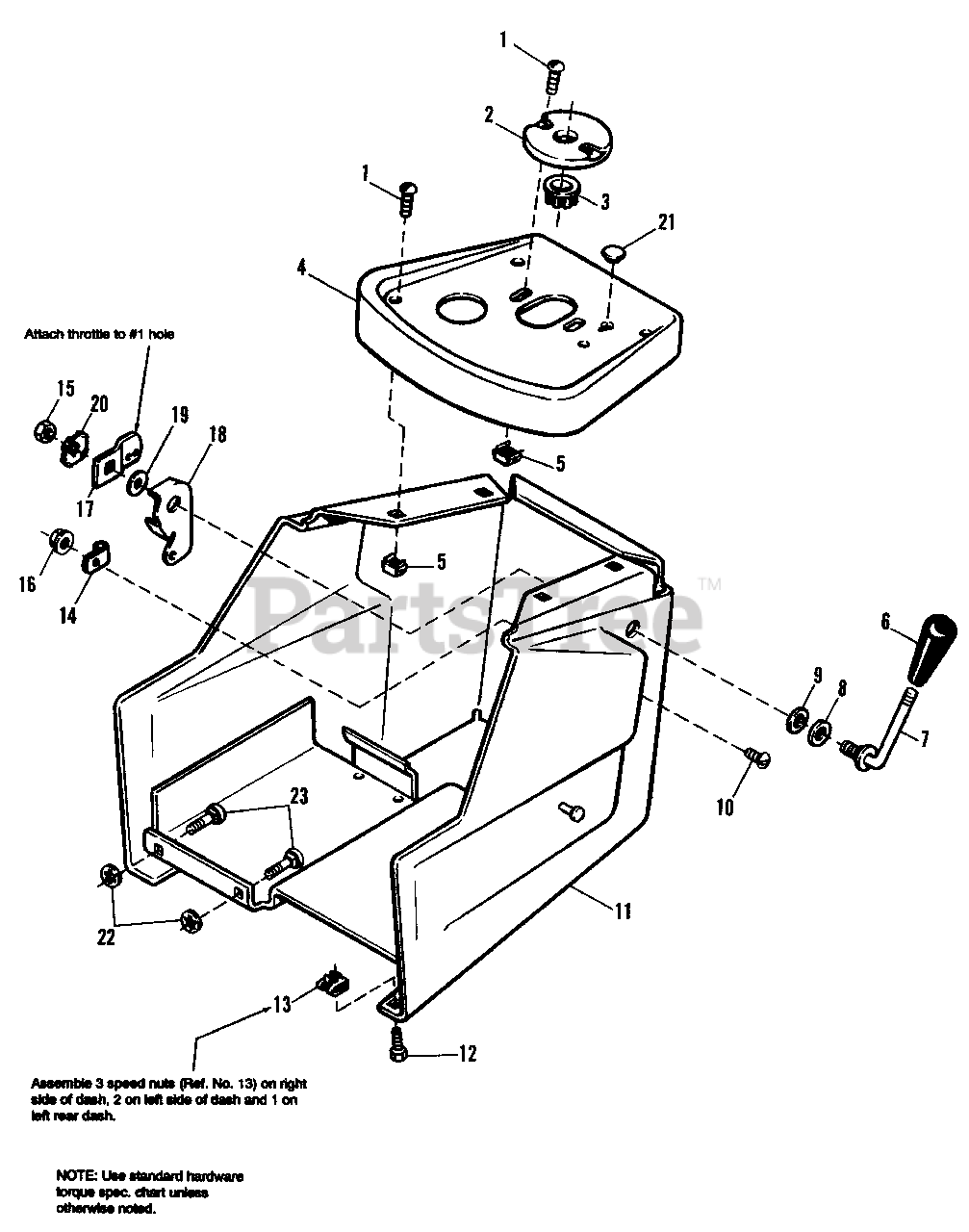

918 H (1692451) - AGCO 48" Garden Tractor, 18hp Dash Group Parts Diagram

48" Garden Tractor, 18hp

Dash Group Parts Diagram

  • Title
1

Simplicity 1926025SM

SCREW, Machine, Round Hd., 1/4-20 x 1/2

$3.49

$

Usually ships in 2-12 days

0

2

Simplicity 2172008SM

PLATE, Adjusting Steering
(Superseded to 2172008ASM)

$38.99

$

Usually ships in 2-12 days

0

$140.99

$

Usually ships in 2-12 days

0

4

Simplicity 1651000SM

PANEL Instrument

$

$

Not available

5

Simplicity 1917867SM

NUT, Tinnerman

$2.99

$

Usually ships in 2-12 days

0

6

Simplicity 1713844SM

KNOB, Soft (All except Mfg. Nos. 1692143 & 1692144)

$12.99

$

Usually ships in 2-12 days

0

6

Simplicity 2172038SM

KNOB, (Mfg. Nos. 1692143 & 1692144)
(Superseded to 1732470SM)

$19.99

$

In Stock, Qty 8

0

7

Simplicity 1713848SM

HANDLE, Throttle Control

Note: Mfg. Nos. 1692143 & 1692144 order Handle Kit, part no. 1686629. Kit includes Ref. Nos. 6 & 7.

$39.99

$

Usually ships in 2-12 days

0

$4.49

$

Usually ships in 2-12 days

0

$4.49

$

In Stock, Qty 11

0

10

Simplicity 1930531SM

SCREW, Round Hd., #10-32 x 1/2

$4.49

$

In Stock, only 2 left!

0

11

Simplicity 1685408SM

DASH ASSY. (lncl. Ref. Nos. 22 & 23)

$

$

Not available

12

Simplicity 1930561SM

SCREW, Hex, Self-tapping, #14AB x 3/4

$4.49

$

Usually ships in 2-12 days

0

13

Simplicity 1928703

NUT, Speed

$

$

Not available

14

Simplicity 1709060SM

CLIP, Control Cable

$

$

Not available

15

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

16

Simplicity 1928919SM

NUT, Hex, Washer, #10-32

$3.99

$

In Stock, only 3 left!

0

17

Simplicity 1666703SM

ARM, Throttle

$3.99

$

Usually ships in 2-12 days

0

18

Simplicity 2103280SM

STOP, Throttle (Incl. Ref. Nos. 8 & 9)

$

$

Not available

$6.99

$

Usually ships in 2-12 days

0

20

Simplicity 1930665SM

LOCKWASHER, Dished Type, 3/8

$1.99

$

Usually ships in 2-12 days

0

21

Simplicity 2177447

PLUG, Button

$

$

Not available

22

$

$

Not available

23

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0
