918 H (1692147) - AGCO 48" Garden Tractor, 18hp Rear Axle & Differential Group Parts Diagram

48" Garden Tractor, 18hp

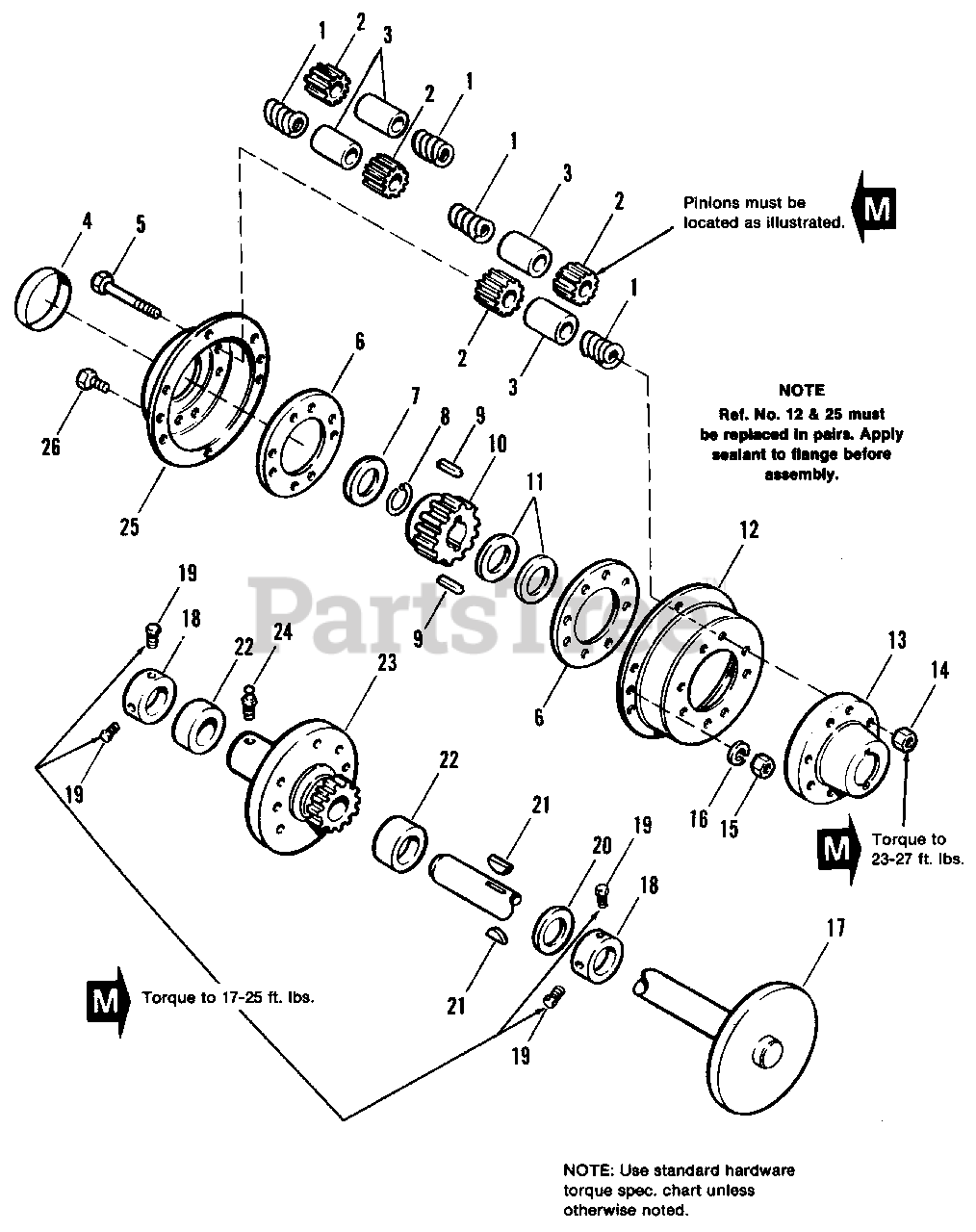

Rear Axle & Differential Group Parts Diagram

  • Title

1

Simplicity 2162085SM

* SPRING

$6.99

$

In Stock, Qty 6

0

2

Simplicity 158574

* PINION, Differential

$

$

Not available

3

Simplicity 2121083SM

* SPINDLE, Differential

$13.99

$

In Stock, only 1 left!

0

4

Simplicity 2121190SM

* SEAL, Cover

$

$

Not available

5

Simplicity 1921972SM

* CAPSCREW, Hex Hd., 3/8-16 x 2-1/2
(Superseded to 703873)

$4.49

$

In Stock, only 2 left!

0

6

Simplicity 2171517SM

* RING, Spacer

$9.49

$

Usually ships in 2-12 days

0

7

Simplicity 2860169SM

WASHER

$6.99

$

Usually ships in 2-12 days

0

8

Simplicity 2154291SM

RING, Retaining

$6.99

$

Usually ships in 2-12 days

0

9

Simplicity 2157120SM

KEY, Drive

$6.99

$

In Stock, only 1 left!

0

10

Simplicity 2177041SM

GEAR, Differential

$125.99

$

In Stock, only 1 left!

0

11

Simplicity 2860190SM

WASHER

$3.99

$

Usually ships in 2-12 days

0

12

Simplicity 2171853SM

* COVER, Differential

$

$

Not available

13

Simplicity 2164217SM

* CARRIER, Differential

$125.99

$

Usually ships in 2-12 days

0

14

Simplicity 1930645SM

* LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

15

Simplicity 1916622SM

* NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 1916964SM

* LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

17

Simplicity 2177900ASM

AXLE ASSY., Rear

$158.99

$

Usually ships in 2-12 days

0

18

Simplicity 2154065SM

COLLAR, Set

$113.99

$

Usually ships in 2-12 days

0

19

Simplicity 1928721SM

SETSCREW, 5/16-18 x 1/2

$4.99

$

In Stock, only 2 left!

0

20

Simplicity 1960153

WASHER

$

$

Not available

21

Simplicity 2830671SM

KEY, Hi-Pro

$8.49

$

Usually ships in 2-12 days

0

22

Simplicity 2153068SM

BEARING

$31.99

$

Usually ships in 2-12 days

0

23

Simplicity 2176945SM

HUB ASSY., Wheel, R.H.

$291.99

$

Usually ships in 2-12 days

0

24

Simplicity 2815019SM

FITTING, Grease

$4.49

$

In Stock, only 2 left!

0

25

Simplicity 2103189SM

* COVER, Differential

$

$

Not available

26

Simplicity 1921959SM

* CAPSCREW, Hex Hd., 1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

26

Simplicity 1650519SM

DIFFERENTIAL SUBASSY. (See Note Below)

$298.99

$

Usually ships in 2-12 days

0
