917301 - Gravely 27-Ton Log Splitter (SN: 000101 & Above) Frame, Engine And Pump Parts Diagram

27-Ton Log Splitter

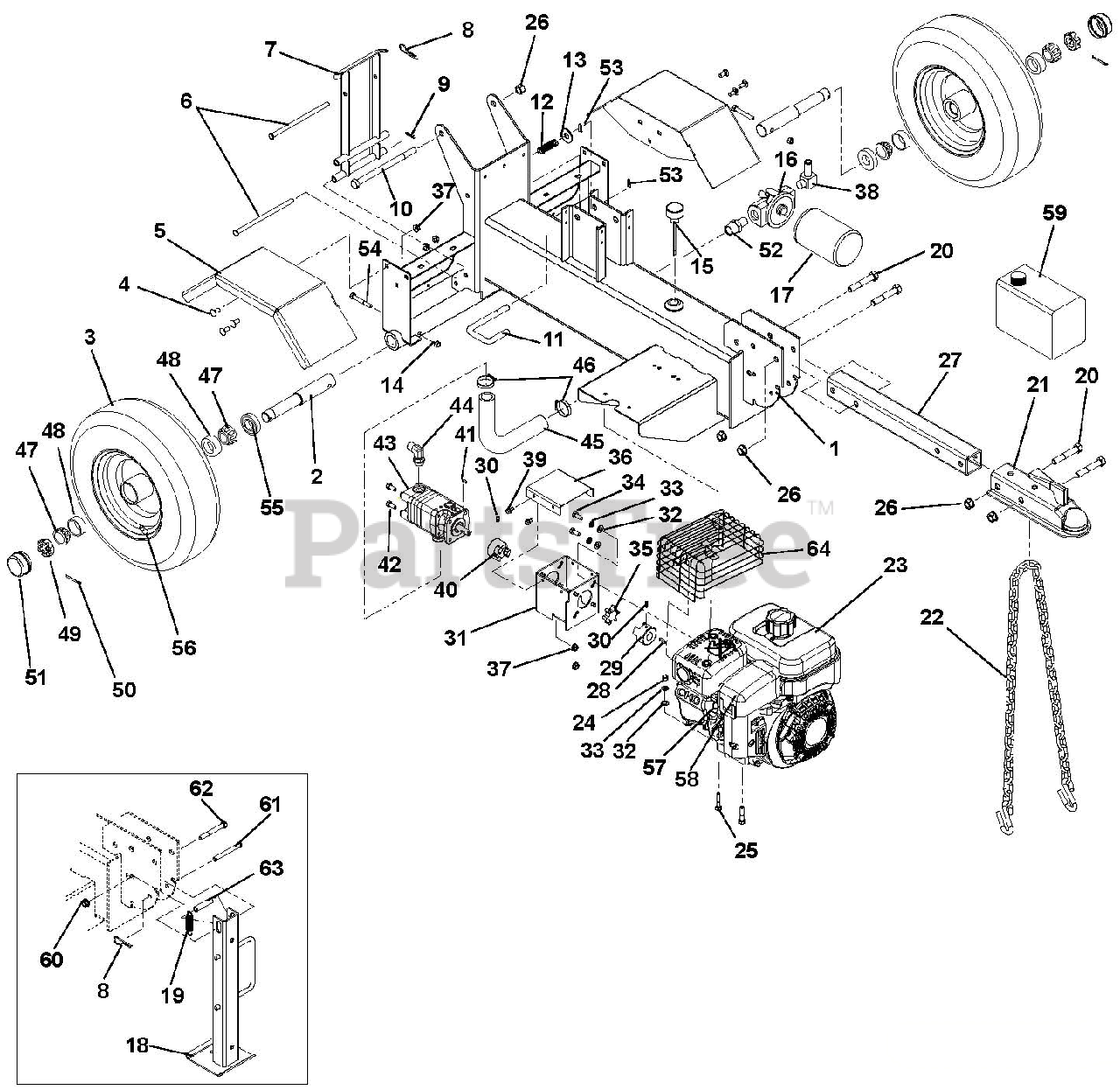

Frame, Engine And Pump Parts Diagram

  • Title

1

Gravely 51701000

Chassis, Splitter With Safety Decal
(Superseded to 51703700)

$

$

Not available

2

Gravely 03857000

Axle, Splitter

$86.99

$

Usually ships in 4-12 days

0

3

Gravely 07100806

Wheel, Splitter
(Superseded to 07101019)

Note: (Includes Items 47, 48, 55 and 56)

$113.99

$

Usually ships in 4-12 days

0

4

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 03857153

Fender

$105.99

$

Usually ships in 4-12 days

0

6

Gravely 03857200

Pin, Lock

$15.99

$

Usually ships in 4-12 days

0

7

Gravely 51701500

Stand, Rear With Decals

$

$

Not available

8

Gravely 06712900

Hairpin, #7 Clip .094 x .31
(Superseded to 06700215)

$5.99

$

In Stock, Qty 11

0

9

Gravely 06714800

Pin, Hair #25
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 05978200

Bolt, Hex .50-13 x 7.50
(Superseded to 05902023)

$7.99

$

In Stock, only 2 left!

0

11

Gravely 03857500

Lock, Beam

$

$

Not available

12

Gravely 08325900

Spring, Compression .058 x .65 x 2.13

$9.49

$

Usually ships in 4-12 days

0

13

Gravely 06442000

Washer, Flat Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 2 left!

0

14

Gravely 06529800

Nut, Locking Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 00463000

Breather, Dipstick

$

$

Not available

16

Gravely 04367300

Head, Filter 3/4 NPT Bypass

$

$

Not available

17

Gravely 03931900

Element, Filter

$26.99

$

In Stock, Qty 20+

0

18

Gravely 03938151

Stand, Jack

$170.99

$

Usually ships in 4-12 days

0

19

Gravely 08300435

Spring, Tension .063 x .625 x 2.50

$

$

Not available

20

Gravely 05959900

Bolt, Hex .50-13 x 3.00 Grade 5
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

21

Gravely 03846600

Hitch, Ball 2-Inch
(Superseded to 51706100)

$

$

Not available

22

Gravely 03846700

Chain, Safety

$35.99

$

Usually ships in 4-12 days

0

23

Gravely 08200429

Engine, Subaru SP170, CARB

$

$

Not available

24

Gravely 06529200

Nut, Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

25

Gravely 05952400

Bolt, Hex .31-18 x 1.50
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

26

Gravely 06536300

Nut, Locking Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

27

Gravely 51700500

Bar, Hitch With Decals

$131.99

$

Usually ships in 4-12 days

0

28

Gravely 06606100

Key, Square .188 x .75 x .188

$3.99

$

In Stock, Qty 11

0

29

Gravely 04586700

Hub, Drive Coupling 3/4 Inch

$26.99

$

In Stock, only 1 left!

0

30

Gravely 06000222

Screw, Set .25-20 x .75 Socket Head Cup Point Nyloc

$1.99

$

In Stock, only 1 left!

0

31

Gravely 03858351

Bracket, Pump Mount

$61.99

$

In Stock, only 1 left!

0

32

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 06307400

Washer, Locking .312 x .097 Heavy
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 05947300

Bolt, Hex .31-24 x .75
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 04586500

Spider, Urethane

$5.99

$

Usually ships in 4-12 days

0

36

Gravely 51700600

Cover, With Decals

$

$

Not available

37

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 07001602

Fitting, Hydraulic 4501-10-12-FG

$17.99

$

Usually ships in 4-12 days

0

39

Gravely 07400034

Screw, Tapping .25-20 x .50 Hex Washer Head Thread Rolling
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 04586600

Hub, Drive Coupling 1/2 Inch

$25.99

$

In Stock, only 1 left!

0

41

Gravely 06600004

Key, Woodruff .125 x .50 x .20

$2.49

$

In Stock, Qty 20+

0

42

Gravely 05947000

Bolt, Hex .31-18 x .75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

43

Gravely 03926900

Pump, Splitter 11 GPM

$732.99

$

Usually ships in 4-12 days

0

44

Gravely 07001535

Fitting, Hydraulic 6801-8-8

$28.99

$

Usually ships in 4-12 days

0

45

Gravely 03859700

Hose, Hydraulic Suction 16G4H x 13.5

$55.99

$

Usually ships in 4-12 days

0

46

Gravely 06922200

Clamp, Hose 1.50 x .81 x 1.42

$5.99

$

Usually ships in 4-12 days

0

47

Gravely 69000300

Bearing, Cone With Grease
(Superseded to 05406900)

$18.99

$

In Stock, Qty 20+

0

48

Gravely 05407000

Bearing, Cup 1.980 x .420

$17.99

$

In Stock, Qty 20+

0

49

Gravely 06513100

Nut, Slotted 1.0-14

$5.99

$

Usually ships in 4-12 days

0

50

Gravely 06713800

Pin, Center .15 x 1.50

$3.99

$

In Stock, Qty 5

0

51

Gravely 20655400

Cap, Dust

$10.99

$

In Stock, Qty 20+

0

52

Gravely 07001601

Fitting, Hydraulic 5404-12-12

$13.99

$

Usually ships in 4-12 days

0

53

Gravely 06944800

Clip, Spring

$0.99

$

In Stock, Qty 20+

0

54

Gravely 05963700

Bolt, Hex .31-18 x 2.25
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

55

Gravely 00092498

Seal

$

$

Not available

56

Gravely 07520000

Valve Stem Assembly

$2.49

$

In Stock, Qty 5

0

57

Gravely 20020001

Spark Plug

$3.49

$

Usually ships in 4-12 days

0

58

Gravely 20020002

Filter, Air
(Superseded to 21551200)

$38.99

$

Usually ships in 4-12 days

0

59

Gravely 00069100

Oil, Hydraulic 2.5 Gallon ISO Grade 32

$159.99

$

Usually ships in 4-12 days

0

60

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

61

Gravely 02747500

Pin, Clevis .368/.373 x 3.25

$5.99

$

In Stock, only 1 left!

0

62

Gravely 05957800

Bolt, Hex .38-16 x 3.00
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

63

Gravely 05533500

Spacer, Wheel

$9.49

$

Usually ships in 4-12 days

0

64

Gravely 04042300

Guard, Muffler

$

$

Not available
