917301 - Gravely 27-Ton Log Splitter (SN: 000101 & Above) Beam And Hydraulic Cylinder Parts Diagram

27-Ton Log Splitter

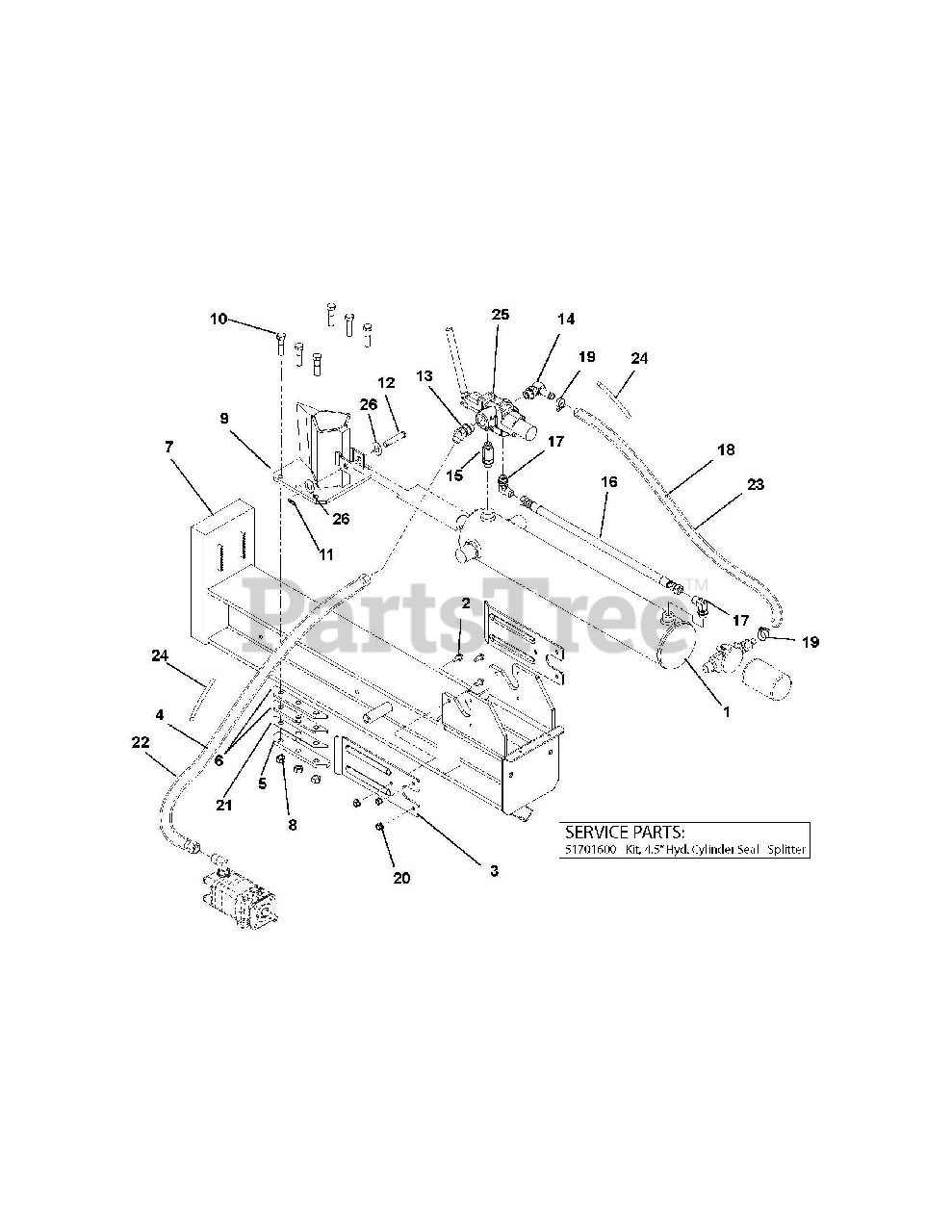

Beam And Hydraulic Cylinder Parts Diagram

  • Title

1

Gravely 51700200

Cylinder, 4.5-Inch With Decals

$1018.99

$

Usually ships in 4-12 days

0

1

Gravely 51701600

Kit, 4.5" Hydraulic Cylinder Seal - Splitter

Note: SERVICE PART

$203.99

$

Usually ships in 4-12 days

0

2

Gravely 05946900

Bolt, Hex .31-18 x 1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03857353

Plate, Stripper
(Superseded to 04861453)

$232.99

$

In Stock, only 1 left!

0

4

Gravely 07001539

Hose Assembly, 8M3K-8FJX-8FJX-46

$141.99

$

Usually ships in 4-12 days

0

5

Gravely 04353251

Retainer, Wedge

$24.99

$

In Stock, Qty 5

0

6

Gravely 03967151

Spacer, Wedge

$23.99

$

Usually ships in 4-12 days

0

7

Gravely 04354951

Weldment, CE Splitter Beam

$

$

Not available

8

Gravely 06536300

Nut, Locking Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

9

Gravely 04353151

Weldment, Splitter Wedge
(Superseded to 51701100)

$517.99

$

In Stock, only 1 left!

0

10

Gravely 06200208

Bolt, Round Head Square Neck .50-13 x 2.00 Grade 8
(Superseded to 06200422)

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 06944800

Clip, Spring

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06810700

Pin, Clevis .494 x 2.50, Bright Zinc Plating

$3.99

$

In Stock, only 2 left!

0

13

Gravely 07001537

Fitting, Hydraulic 6802-8-10

$25.99

$

Usually ships in 4-12 days

0

14

Gravely 07001538

Fitting, Hydraulic 4601-10-10

$40.99

$

Usually ships in 4-12 days

0

15

Gravely 07001534

Fitting, Hydraulic 6403-NWO-8-8-L

$51.99

$

In Stock, only 1 left!

0

16

Gravely 07001540

Hose Assembly, 8M3K-8FJX-8FJX-22

$68.99

$

Usually ships in 4-12 days

0

17

Gravely 07001535

Fitting, Hydraulic 6801-8-8

$28.99

$

Usually ships in 4-12 days

0

18

Gravely 03859600

Hose, Hydraulic Return 10LOLA x 53-In.

$78.99

$

Usually ships in 4-12 days

0

19

Gravely 06923500

Clamp, .88 Diameter

$1.99

$

In Stock, Qty 6

0

20

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 04284651

Shim, Splitter Wedge

$38.99

$

Usually ships in 4-12 days

0

22

Gravely 04355000

Sleeve, Protective 50"

$21.99

$

Usually ships in 4-12 days

0

23

Gravely 04355100

Sleeve, Protective 24"

$

$

Not available

24

Gravely 07517300

Cable Tie

$

$

Not available

25

Gravely 04365500

Valve, Control – CE Splitter

$

$

Not available

26

Gravely 06442000

Washer, Flat Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 2 left!

0
