917300 - Ariens 27-Ton Log Splitter, 6hp Subaru (SN: 014000 & Above) Hitch And Stand Parts Diagram

27-Ton Log Splitter, 6hp Subaru

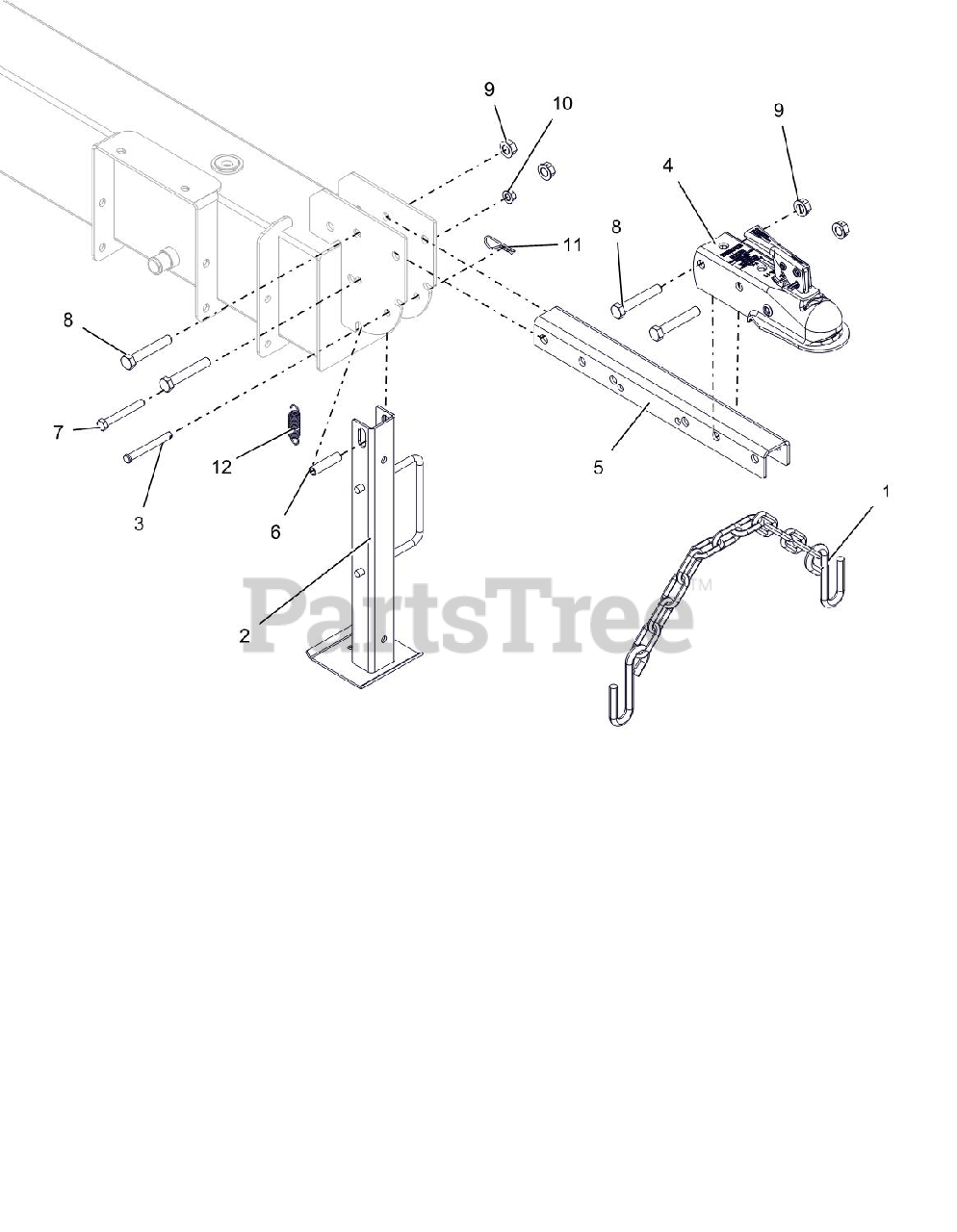

Hitch And Stand Parts Diagram

  • Title
1

Ariens 03846700

CHAIN, SAFETY

$35.99

$

Usually ships in 4-12 days

0

2

Ariens 03938151

WLDMT, JACK STAND

$170.99

$

Usually ships in 4-12 days

0

3

Ariens 02747500

PIN-CLEV .371X3.25 YWZC

$5.99

$

In Stock, only 2 left!

0

4

Ariens 05131100

COUPLER-BALL 2.000"

$85.99

$

Usually ships in 4-12 days

0

5

Ariens 51705800

HITCH BAR W/SAFETY DECAL-CE

$

$

Not available

6

Ariens 05533500

SPCR, WHEEL .385X.500X2.00

$9.49

$

Usually ships in 4-12 days

0

7

Ariens 05957800

@BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

8

Ariens 05959900

@BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

9

Ariens 06530008

NUT-LK-CTR-FLG .50-13 YWZC
(Superseded to 06500902)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06712900

HAIRPIN, #7 CLIP .094X2.31 YWZ
(Superseded to 06700215)

$5.99

$

In Stock, Qty 10

0

12

Ariens 08300435

SPRG, TENSION .063X.625X2.50

$

$

Not available
