917300 - Ariens 27-Ton Log Splitter, 6hp Subaru (SN: 012000 - 013999) Beam Parts Diagram

27-Ton Log Splitter, 6hp Subaru

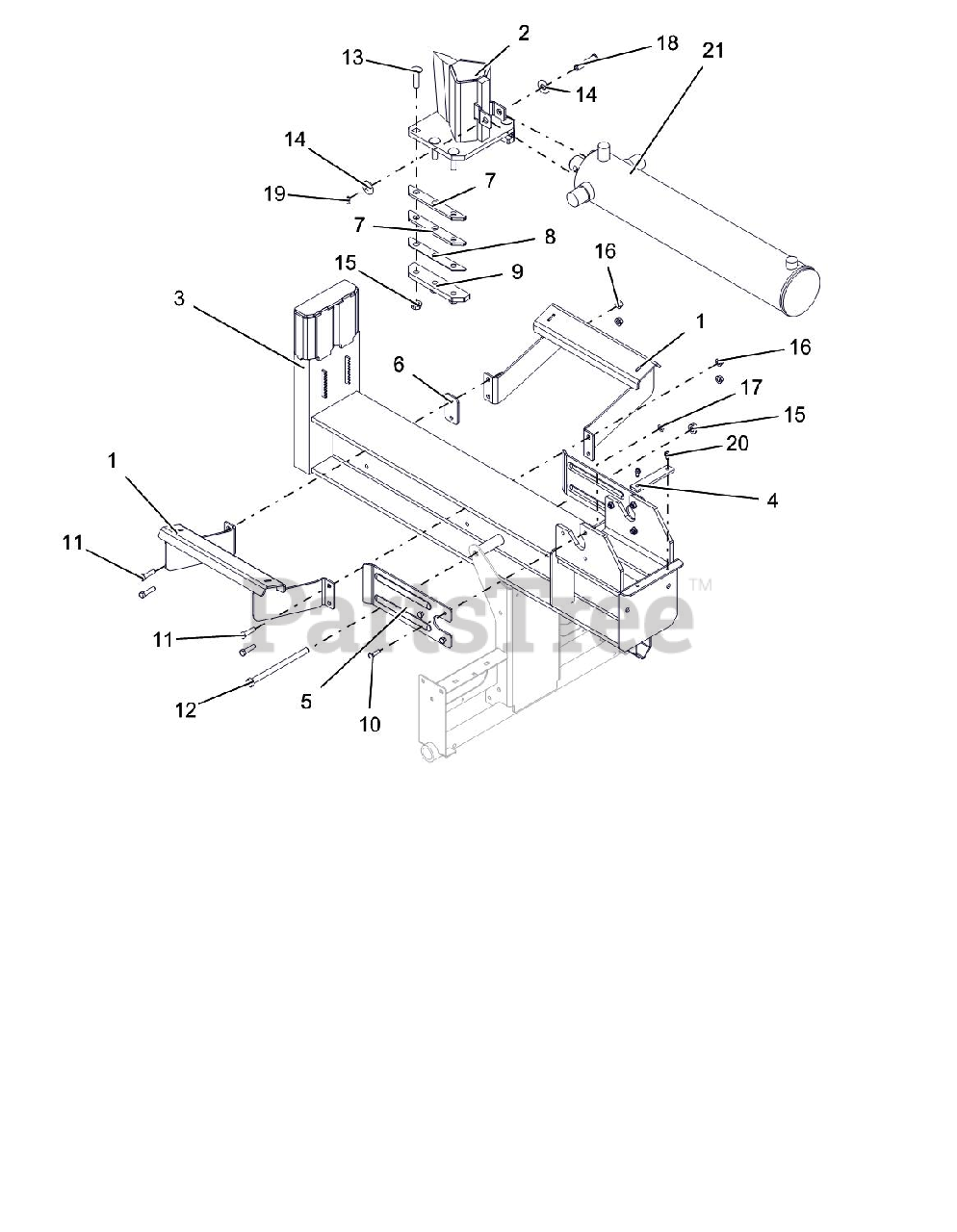

Beam Parts Diagram

  • Title
1

Ariens 03863051

WLDMT, LOG CRADLE
(Superseded to 71701600)

$190.99

$

Usually ships in 4-12 days

0

2

Ariens 04353151

WLDMT, SPLITTER WEDGE
(Superseded to 51701100)

$517.99

$

In Stock, only 1 left!

0

3

Ariens 04354951

WLDMT, CE SPLITTER BEAM

$

$

Not available

4

Ariens 03835751

SPACER, CYLINDER

$

$

Not available

5

Ariens 03857359

PLATE,STRIPPER
(Superseded to 04861459)

$142.99

$

In Stock, Qty 5

0

6

Ariens 03886751

PLATE, WORK TABLE SPACER

$

$

Not available

7

Ariens 03967151

SPACER, WEDGE

$23.99

$

In Stock, only 1 left!

0

8

Ariens 04284651

SHIM,SPLITTER WEDGE

$38.99

$

Usually ships in 4-12 days

0

9

Ariens 04353251

RETAINER,WEDGE

$24.99

$

In Stock, Qty 5

0

10

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

12

Ariens 05978200

@BLT-HEX .50-13X7.50 GR5 YWZC
(Superseded to 05902023)

$7.99

$

In Stock, only 2 left!

0

13

Ariens 06200208

BLT-RDHDSQNKFTH.50-13X2 G8YWZC
(Superseded to 06200422)

$5.99

$

Usually ships in 4-12 days

0

14

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

15

Ariens 06530008

NUT-LK-CTR-FLG .50-13 YWZC
(Superseded to 06500902)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06822300

PIN-CLEV .50X2.50X2.27 YWZC
(Superseded to 06810700)

$3.99

$

Usually ships in 4-12 days

0

19

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

20

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 51705400

CYLINDER W/SAFETY DECALS-27TCE

$

$

Not available
