917300 - Ariens 27-Ton Log Splitter, 6hp Subaru (SN: 010000 - 011999) Hitch And Stand Parts Diagram

27-Ton Log Splitter, 6hp Subaru

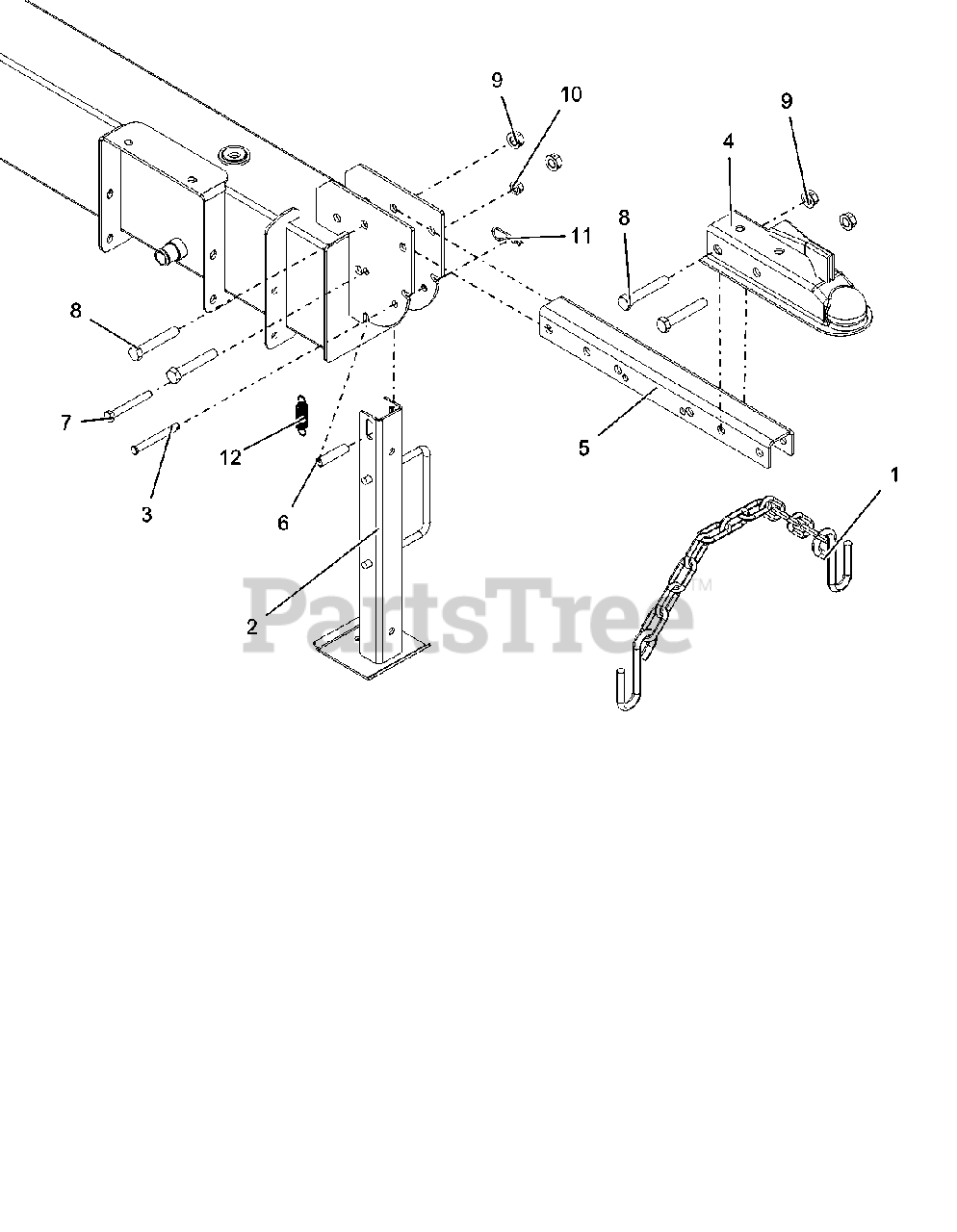

Hitch And Stand Parts Diagram

  • Title
1

Ariens 03846700

CHAIN, SAFETY

$35.99

$

Usually ships in 4-12 days

0

2

Ariens 03938151

WLDMT, JACK STAND

$170.99

$

Usually ships in 4-12 days

0

3

Ariens 02747500

PIN, CLEV .375X3.25 YWZC

$5.99

$

In Stock, only 1 left!

0

4

Ariens 03846600

HITCH, BALL - 2"
(Superseded to 51706100)

$

$

Not available

5

Ariens 04592500

BAR, HITCH

$

$

Not available

6

Ariens 05533500

SPCR, WHEEL .385X.500X2.00

$9.49

$

Usually ships in 4-12 days

0

7

Ariens 05957800

BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

8

Ariens 05959900

BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

9

Ariens 06530008

NUT-LK-CTR-FLG .50-13 YWZC
(Superseded to 06500902)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06712900

HAIR, PIN #7 CLIP .094 X 2.31 YWZ
(Superseded to 06700215)

$5.99

$

In Stock, Qty 11

0

12

Ariens 08300435

SPRG, EXTENSION

$

$

Not available
